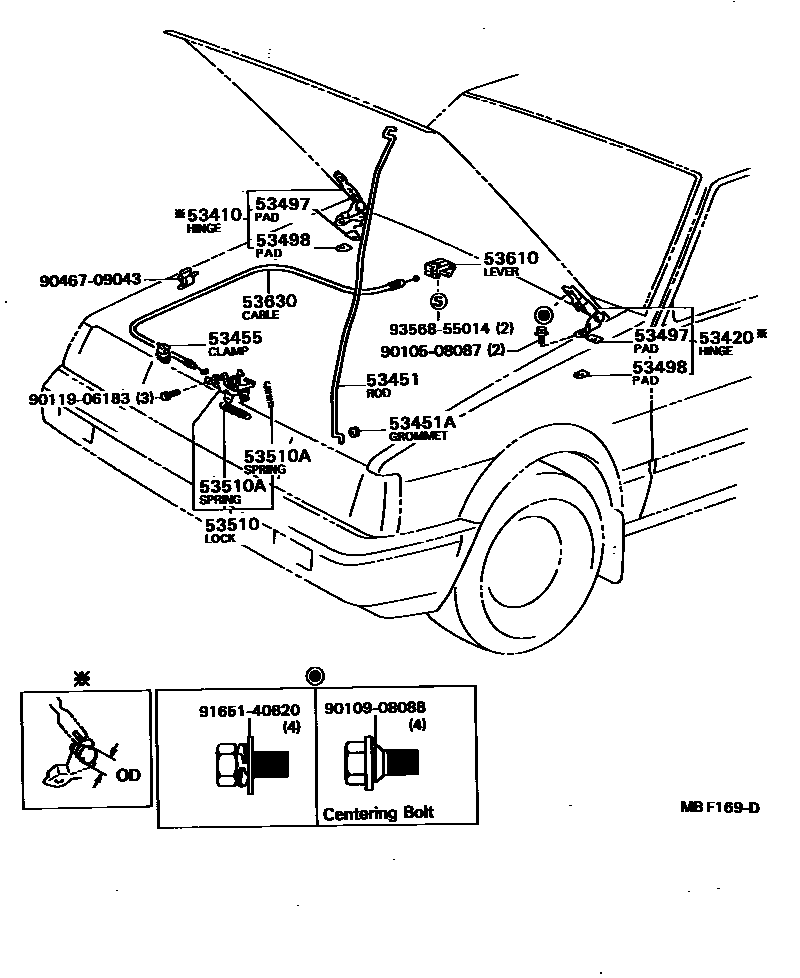

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12050iAE8#,CE80,EE80198305-198807

OD=16

sub53410-12051

main53410-12080iAE8#,CE80,EE80198305-198506

OD=20

sub53410-12050

53420HINGE ASSY, HOOD, LH

main53420-12040iAE8#,CE80,EE80198305-198807

OD=16

sub53420-12041

main53420-12070iAE8#,CE80,EE80198305-198506

OD=20

sub53420-12040

53451ROD, HOOD SUPPORT

main53451-12040iAE8#,CE80,EE80..ARL,GEN,SA198305-198505

sub53451-12041

main53451-12041iAE8#,CE80,EE80..ARL,GEN,SA,SAA198505-198807

sub53451-12070

main53451-12050iAE82,CE80,EE80..(3DS,5DS)..EUR198410-198505

sub53451-12080

main53451-12070iAE82,CE80,EE80..(4DS,5D)..EUR198505-198704

main53451-12080iAE82,CE80,EE80..(3DS,5DS)..EUR198505-198704

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15002iAE8#,CE80,EE80198305-198807

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iAE8#,CE80,EE80198305-198807

53497PAD, HOOD HINGE, NO.1

main53497-12010iAE8#,CE80,EE80198305-198807

T=1.0

sub53497-12011

53498PAD, HOOD HINGE, NO.2

main53498-12010iAE8#,CE80,EE80198305-198807

sub53498-12011

53510LOCK ASSY, HOOD

main53510-12220iAE8#,CE80..RHD198305-198807

main53510-12230iAE8#,CE80,EE80..LHD..GEN198305-198707

main53510-12300iAE82,EE80..(3DS,5DS)..RHD..EUG198410-198704

main53510-12310iAE82,CE80,EE80..(3DS,5DS)..LHD..EUR198410-198704

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iAE8#,CE80,EE80198305-198807

WD=0.9,L=39.6

main90506-20008iAE8#,CE80,EE80198305-198807

WD=2.0,CW=17,L=60.0

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-12020-02iAE8#,CE80..RHD198401-198408

MAROON,RED/MAROON,TRIM3#

sub53601-12020

sub53601-10020

main53601-12020-03iAE8#,CE80198305-198408

GRAY,GRAY,TRIM1#

sub53601-12020

sub53601-10020

main53601-12020-04iAE8#,CE80..LHD198305-198408

BLUE,BLUE,TRIM8#

sub53601-12020

sub53601-10020

main53601-12020-05iAE8#,CE80198305-198408

BEIGE,BEIGE,TRIM3#

sub53601-12020

sub53601-10020

main53601-12020-06iAE8#,CE80,EE80198408-198807

BROWN,BROWN,TRIM4#

sub53601-12020

sub53601-10020

main53601-12020-13iAE8#,CE80,EE80198401-198807

GRAY,GRAY,TRIM1#

sub53601-12020

sub53601-10020

main53601-12020-14iAE8#,CE80..RHD198401-198807

BLUE,BLUE,TRIM8#

sub53601-12020

sub53601-10020

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12180iAE8#,CE80,EE80..LHD198305-198707

main53630-12210iAE8#,CE80,EE80..RHD198305-198807

9010508087

main90105-08087

9010908088

main90109-08088

9011906183

main90119-06183

9046709043

main90467-09043

9165140820

main91651-40820

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section
