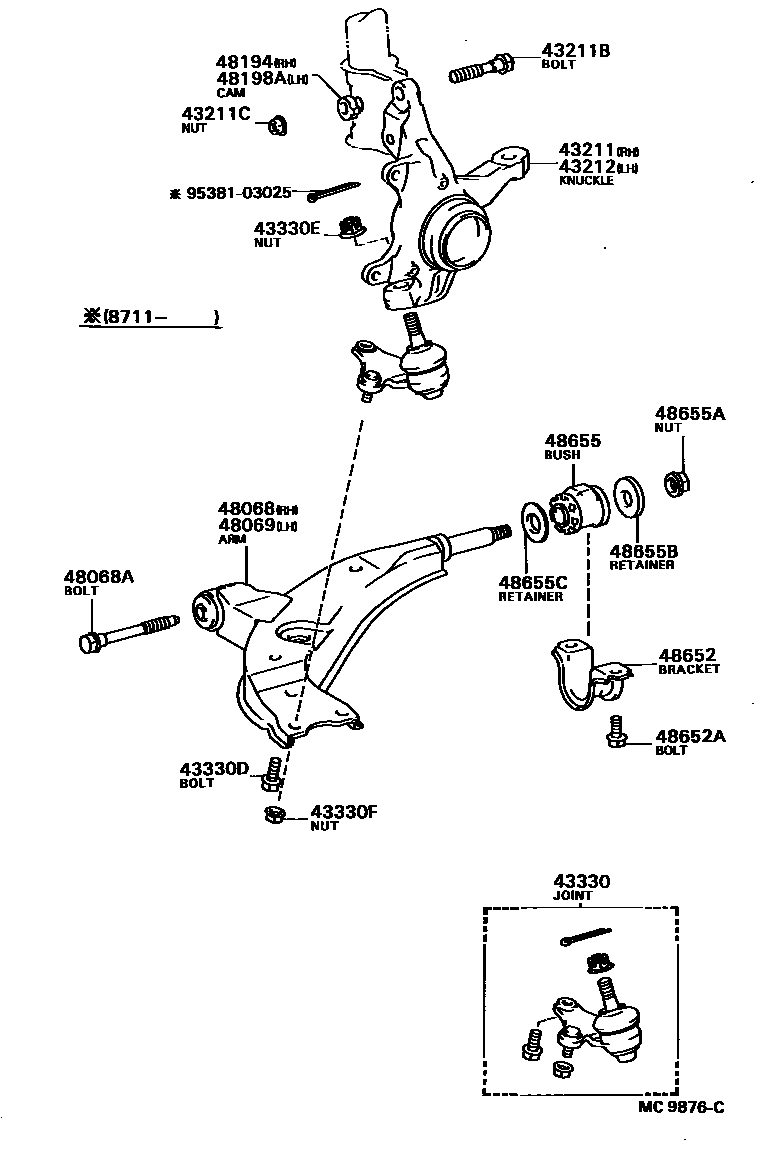

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-12070iAE82..GT..SA198305-198807

main43211-12080iCE80;AE82..3DS..GT198305-198704

main43211-20090iCE80198305-198704

W/POWER STEERING

main43211-20090iAE82..RHD..GT..GEN198502-198704

NEW ZEALAND SPEC

main43211-20090iAE82..GT..ARL198511-198807

43211BBOLT (FOR ABSORBER SETTING)

main90105-12042iAE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL198305-198807

sub90105-12263

main90105-15001iCE80;AE82..GT..(ARL,EUR,GEN)198305-198807

43211CNUT (FOR ABSORBER SETTING)

main90179-12025iAE82..GT..SA198305-198807

main90179-15001iCE80;AE82..GT..(ARL,EUR,GEN)198305-198807

43212KNUCKLE, STEERING, LH

main43212-12030iAE82..GT..SA198305-198807

main43212-12040iCE80;AE82..3DS..GT198305-198704

main43212-20050iAE82..RHD..GT..GEN198502-198704

NEW ZEALAND SPEC

main43212-20050iCE80198305-198704

W/POWER STEERING

main43212-20050iAE82..GT..ARL198511-198807

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29135iAE8#,CE80198305-198310

sub43330-29136

main43330-29136iAE8#,CE80198310-198410

sub43330-29137

main43330-29137iAE8#,CE80,EE80198410-198602

sub43330-29138

main43330-29138iAE8#,CE80,EE80198602-198703

sub43330-29139

main43330-29139iAE8#,CE80,EE80198703-198711

sub43330-29205

main43330-29205iAE8#,EE80198711-198807

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-10069iAE8#,CE80,EE80198305-198510

main90119-10407iAE8#,CE80,EE80198510-198807

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-14003iAE8#,EE80198711-198807

main90179-14015iAE8#,CE80,EE80198305-198711

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10054iAE8#,CE80,EE80198305-198510

main90179-10087iAE8#,CE80,EE80198510-198702

main90179-10103iAE8#,CE80,EE80198702-198807

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-20150iAE8#,CE80,EE80198305-198703

sub48068-20151

sub43330-29139

main48068-20151iAE8#,CE80,EE80198703-198807

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12081iAE8#,CE80,EE80198305-198411

sub90119-12083

main90119-12083iAE8#,CE80,EE80198411-198807

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-20150iAE8#,CE80,EE80198305-198703

sub48069-20151

sub43330-29139

main48069-20151iAE8#,CE80,EE80198703-198807

48194CAM, CAMBER ADJUST, RH

main48194-16010iAE8#,EE80..CS,CSX,DX,GL,S,STD,XL198305-198508

sub48194-16011

main48194-16011iAE82..GT..SA198508-198807

main48194-32010iCE80;AE82..GT..(EUR,GEN)198305-198508

sub48194-32020

main48194-32020iAE82..GT..(ARL,EUR,GEN)198508-198807

48198ACAM, CAMBER ADJUST, LH

main48198-16010iAE8#,EE80..CS,CSX,DX,GL,S,STD,XL198305-198508

sub48198-16011

main48198-16011iAE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL198508-198807

main48198-32010iCE80;AE82..GT..(EUR,GEN)198305-198508

sub48198-32020

main48198-32020iAE82..GT..(ARL,EUR,GEN)198508-198807

48652BRACKET, FRONT LOWER ARM

main48652-20030iAE8#,CE80,EE80198305-198807

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061iAE8#,CE80,EE80198305-198807

48655BUSH, LOWER ARM, NO.2

main48655-20030iAE8#,CE80,EE80198305-198807

48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)

main90179-14006iAE8#,CE80,EE80198305-198807

48655BRETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.2)

main90948-02060iAE8#,CE80,EE80198305-198807

48655CRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.2)

main90948-02061iAE8#,CE80,EE80198305-198807

9538103025

main95381-03025

20 parts on this diagram · 1 diagram in section
