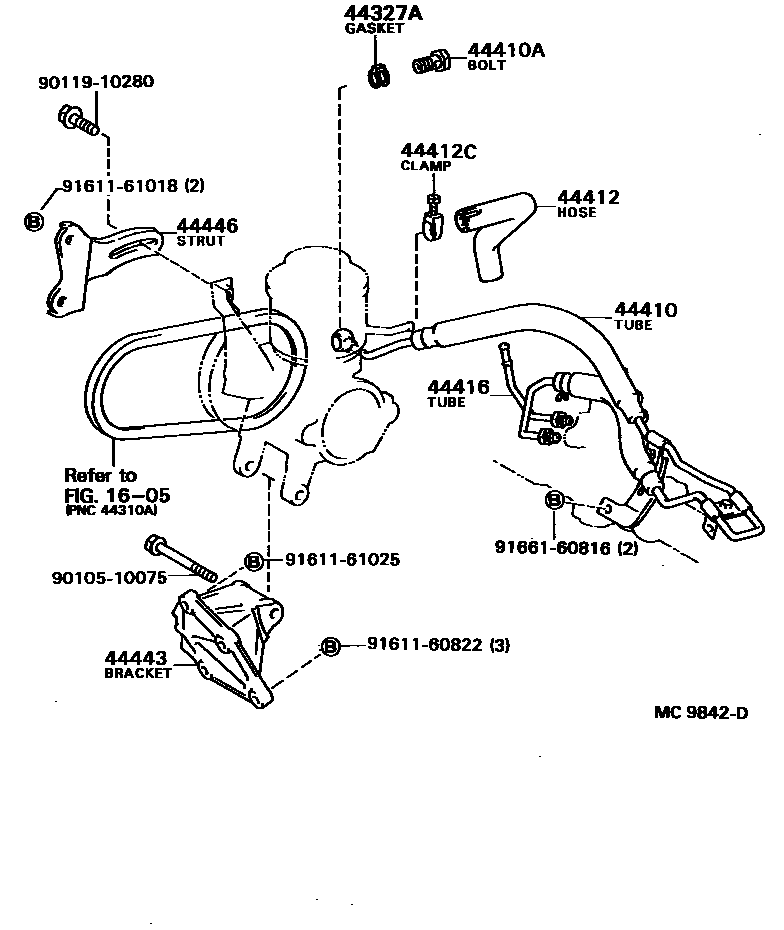

POWER STEERING TUBE

0001 1 0005 1 0007 1 0009 1 0010 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCE80;AE82..(CSX,GL)..(ARL,GEN)¥260198305-198807

44410TUBE ASSY, PRESSURE FEED

main44410-12040iAE82..4DS..RHD¥35,500198305-198307

sub44410-12041¥35,400

main44410-12041iAE82..SED..RHD..(DX,GL,SE,XL)¥35,400198307-198807

sub44410-12042¥35,600

main44410-12050iAE82..LHD..GL..GEN¥37,300198305-198704

sub44410-12051¥37,500

main44410-12090iCE80..RHD¥33,400198305-198704

main44410-12120iAE82..5D..RHD..GL¥36,800198305-198804

sub44410-12121¥37,100

main44410-12150iAE82..5D..GT..GEN¥37,300198411-198807

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iCE80;AE82..(CSX,GL)..(ARL,GEN)¥610198305-198807

44412HOSE, RETURN

main44412-12110iAE82..5D..RHD..GL¥2,790198305-198804

main44412-12120iAE82..SED..RHD..(DX,GL,SE,XL)¥3,830198305-198807

44412CCLAMP(FOR RETURN HOSE)

main90460-01001iAE82..RHD..(CSX,GL)..(ARL,GEN)¥580198305-198807

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12130iAE82..5D..RHD..GL¥1,080198305-198804

main44416-12140iAE82..SED..RHD..(DX,GL,SE,XL)¥1,350198305-198807

44443BRACKET, PUMP

main44443-12050iAE82..(CSX,GL)..(ARL,GEN)¥8,500198305-198807

main44443-12060iAE82..GT..(ARL,SA)¥14,100198411-198807

44446STRUT, ADJUSTING

main44446-12030iAE82..(CSX,DX,GL,SE,XL)..(ARL,GEN,SA)¥1,630198305-198807

9010510075

main90105-10075¥180

9011910280

main90119-10280¥360

9161160822

main91611-60822¥170

9161161018

main91611-61018¥130

9161161025

main91611-61025¥240

9166160816

main91661-60816¥130

15 parts on this diagram · 5 diagrams in section
