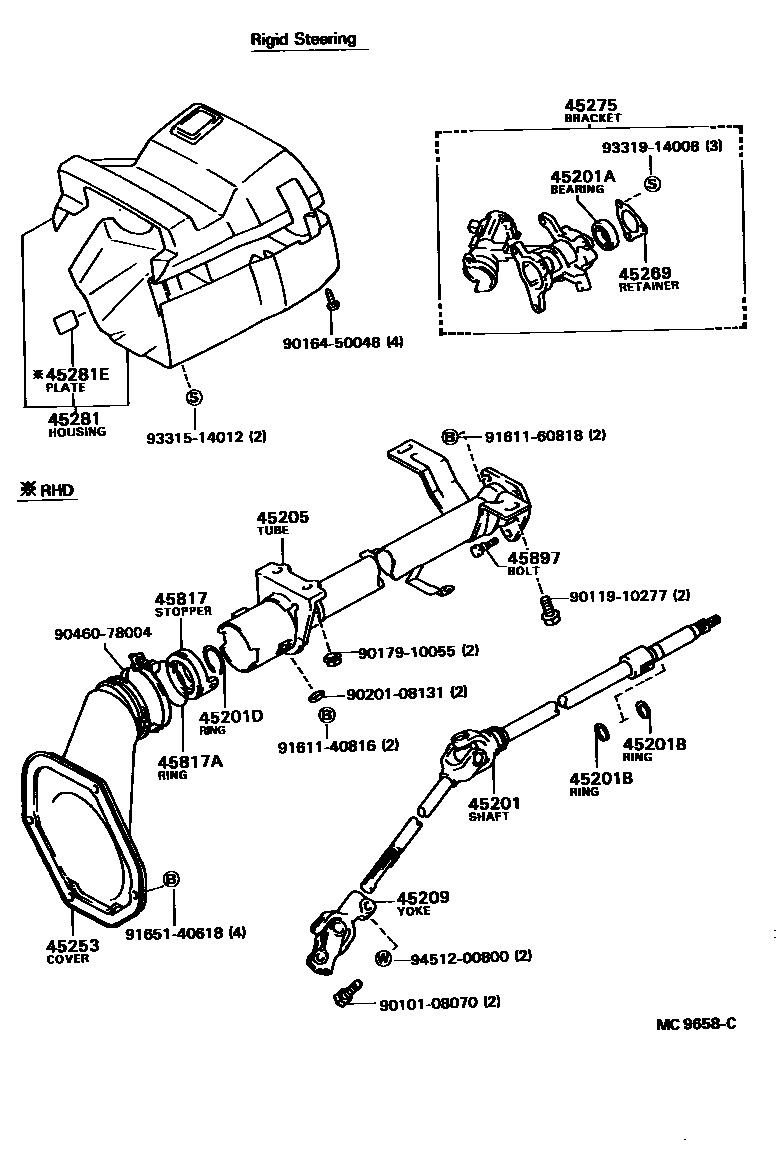

STEERING COLUMN & SHAFT

0001 1 0002 1 0005 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-12200iAE8#,CE80,EE80..RHD..(CSX,DX,GL,GT,SE,STD,XL)198305-198807

W/COLLAPSIBLE STEERING

main45210-12210iAE8#,CE80,EE80..LHD198305-198704

W/COLLAPSIBLE STEERING

main45210-12220iAE82..RHD..(CSX,GL)..(ARL,GEN)198305-198807

W/POWER STEERING

main45210-12230iAE82..LHD..GL..GEN198305-198704

W/POWER STEERING

main45210-12240iAE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..GEN198305-198704

W/RIGID STEERING

main45210-12250iAE8#,CE80,EE80..LHD..(DX,GL,STD,XL)..GEN198305-198704

W/RIGID STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iAE8#,CE80,EE80198305-198807

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAE8#,CE80,EE80198305-198807

T=1.20,T=1.2

main90520-17196iAE8#,CE80,EE80198305-198807

T=1.35-1.45,T=1.4

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAE8#,CE80,EE80198305-198807

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-12210iAE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..GEN198305-198704

W/RIGID STEERING

main45205-12220iAE8#,CE80,EE80..LHD..(DX,GL,STD,XL)..GEN198305-198704

W/RIGID STEERING

main45870-12180iAE82,CE80,EE80..RHD..(DX,GL,STD,XL)..(EUR,GEN)198305-198804

W/COLLAPSIBLE STEERING

main45870-12190iAE8#,CE80,EE80..LHD..(DX,GL,STD,XL)198305-198707

W/COLLAPSIBLE STEERING

main45870-12200iAE8#,EE80..RHD..(CSX,GL,GT)..(ARL,EUR,GEN)198305-198807

W/TILT STEERING

main45870-12210iAE8#,CE80,EE80..LHD..(GL,GT)198305-198704

W/TILT STEERING

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iAE8#,CE80,EE80198305-198807

sub45209-10020

main45209-32020iAE82..SA198305-198807

W/POWER STEERING

sub45209-16010

45253COVER, STEERING COLUMN HOLE

main45025-12120iAE8#,CE80,EE80..RHD198305-198807

main45025-12130iAE8#,CE80,EE80..LHD..(EUR,GEN)198305-198704

main45025-12160iAE80,EE80..SAA198308-198707

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iAE8#,CE80,EE80198305-198807

45275BRACKET, STEERING COLUMN, UPPER

main45280-12040iAE8#,CE80,EE80..LHD198305-198701

main45280-12042iAE82,CE80,EE80..LHD198701-198707

sub45280-12052

main45280-12090iAE8#,CE80,EE80..RHD198305-198701

main45280-12092iAE8#,CE80,EE80..RHD198701-198807

sub45280-17010

45281HOUSING, STEERING COLUMN

main45286-12933-02iAE82..DX..SA;AE82..5D..SA;AE80,CE80..RHD;AE82..RHD..GEN198305-198408

MAROON,RED/MAROON,TRIM3#

sub45286-12933

main45286-12933-03iAE82..5D..GL..SA;AE82..RHD..GL..GEN;AE80,CE80,EE80..RHD;AE82..RHD..(CS,DX,S,XL)198305-198807

GRAY,GRAY,TRIM1#

sub45286-12933

main45286-12933-04iAE82..5D..GL..SA;AE82..4DS..DX..SA;AE80,CE80,EE80..(4DS,5D)..RHD;AE82..(4DS,5D)..RHD..(CS,GL,S,XL)..(ARL,GEN)198305-198605

BLUE,BLUE,TRIM8#

sub45286-12933

main45286-12933-06iAE82,CE80,EE80..RHD..(DX,GL,STD,XL)..(EUR,GEN)198408-198807

BROWN,BROWN,TRIM4#

sub45286-12933

main45286-12933-14iAE8#,EE80..(CS,DX,S,STD)..(ARL,SA)198605-198807

BLUE,BLUE,TRIM8#

sub45286-12933

main45286-12934-01iAE82..RHD..GT198410-198807

BLACK,BLACK,TRIM1#,4#

sub45286-12934

main45286-12934-02iAE8#..RHD..GL..(EUR,GEN)198305-198408

MAROON,W/TILT STEERING,RED/MAROON,TRIM3#

sub45286-12934

main45286-12934-03iAE82..4DS..(GL,SE)..SA198305-198807

GRAY,W/TILT STEERING,GRAY,TRIM1#

sub45286-12934

main45286-12934-04iAE82..4DS..GL..SA198305-198605

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-12934

main45286-12934-06iAE82..4DS..(GL,SE)..SA198408-198807

BROWN,W/TILT STEERING,BROWN,TRIM4#

sub45286-12934

main45286-12934-14iAE82,EE80..(4DS,5D)..RHD..(CSX,GL)..(ARL,EUR,GEN)198605-198807

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-12934

main45286-12935-02iAE8#,CE80..LHD198305-198408

MAROON,RED/MAROON,TRIM3#

sub45286-12935

main45286-12935-03iAE8#,CE80,EE80..LHD..(DX,GL,STD,XL)198305-198707

GRAY,GRAY,TRIM1#

sub45286-12935

main45286-12935-04iAE8#,CE80,EE80..(4DS,5D)..LHD198305-198605

BLUE,BLUE,TRIM8#

sub45286-12935

main45286-12935-06iAE8#,CE80,EE80..LHD..(DX,GL,STD,XL)198408-198707

BROWN,BROWN,TRIM4#

sub45286-12935

main45286-12935-14iAE82,CE80,EE80..(4DS,5D)..LHD198605-198707

BLUE,BLUE,TRIM8#

sub45286-12935

main45286-12936-01iAE82..LHD..GT198410-198704

BLACK,BLACK,TRIM1#,4#

sub45286-12936

main45286-12936-02iAE8#,CE80..LHD..GL198305-198408

MAROON,W/TILT STEERING,RED/MAROON,TRIM3#

sub45286-12936

main45286-12936-03iAE8#,CE80,EE80..LHD..GL198305-198704

GRAY,W/TILT STEERING,GRAY,TRIM1#

sub45286-12936

main45286-12936-04iAE8#,CE80,EE80..(4DS,5D)..LHD..GL198305-198605

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-12936

main45286-12936-06iAE8#,CE80,EE80..LHD..GL198408-198704

BROWN,W/TILT STEERING,BROWN,TRIM4#

sub45286-12936

main45286-12936-14iAE82,EE80..(4DS,5D)..LHD..GL198605-198704

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-12936

45281EPLATE, SAFETY CAUTION

main45283-22010iAE8#,CE80,EE80..RHD198305-198807

45817STOPPER, STEERING SHAFT THRUST

main45808-20020iAE8#,CE80,EE80198305-198807

sub45808-20030

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main90301-54002iAE8#,CE80,EE80198512-198807

main96711-24056iAE8#,CE80,EE80198305-198512

45897BOLT, STEERING LOCK SET

main45897-12020iAE8#,CE80,EE80198305-198807

9010108070

main90101-08070

9011910277

main90119-10277

9016450048

main90164-50048

9017910055

main90179-10055

9020108131

main90201-08131

9046078004

main90460-78004

9161140816

main91611-40816

9161160818

main91611-60818

9165140618

main91651-40618

9331514012

main93315-14012

9331914008

main93319-14008

9451200800

main94512-00800
