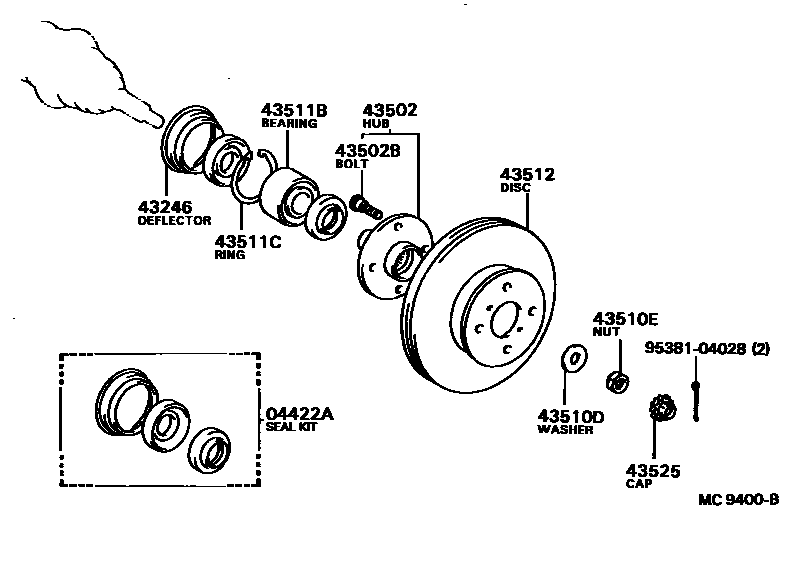

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-20010iAE8#,CE80,EE80¥1,350198305-198807

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-12010iAE8#,EE80¥370198711-198807

main43246-20010iAE8#,CE80,EE80¥370198305-198711

43502HUB SUB-ASSY, FRONT AXLE

main43502-20030iAE8#,CE80,EE80¥8,900198305-198802

sub43502-12100¥8,900

sub43502-20110¥9,400

main43502-20080iAE8#,EE80¥9,500198802-198807

sub43502-20110¥9,400

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iAE8#,CE80,EE80¥230198305-198807

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20006iAE8#,CE80¥320198305-198405

sub90201-20012¥340

main90201-20012iAE8#,CE80,EE80¥340198405-198807

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iAE8#,CE80,EE80¥320198305-198807

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iAE8#,CE80,EE80¥7,000198305-198807

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iAE8#,CE80,EE80¥140198305-198807

OD=79,T=2.40-2.50

main90521-79003iAE8#,CE80,EE80¥250198305-198807

T=2.50-2.57,T=2.50-2.57

main90521-79004iAE8#,CE80,EE80¥250198305-198807

T=2.57-2.62,T=2.57-2.62

main90521-79005iAE8#,CE80,EE80¥250198305-198807

T=2.62-2.67,T=2.62-2.67

main90521-79006iAE8#,CE80,EE80¥250198305-198807

T=2.67-2.72,T=2.67-2.72

43512DISC, FRONT

main43512-12150iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)¥9,400198305-198707

main43512-12160iAE8#,CE80,EE80..(DX,GL,SE,STD)..(EUR,SA)¥11,200198305-198804

main43512-20080iAE82..GT..EUG¥11,200198410-198704

main43512-20170iAE82..GT..(ARL,GEN,SA)¥11,200198509-198807

sub43512-20080¥11,200

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iAE8#,CE80,EE80¥250198305-198807

9538104028

main95381-04028¥120

11 parts on this diagram · 1 diagram in section
