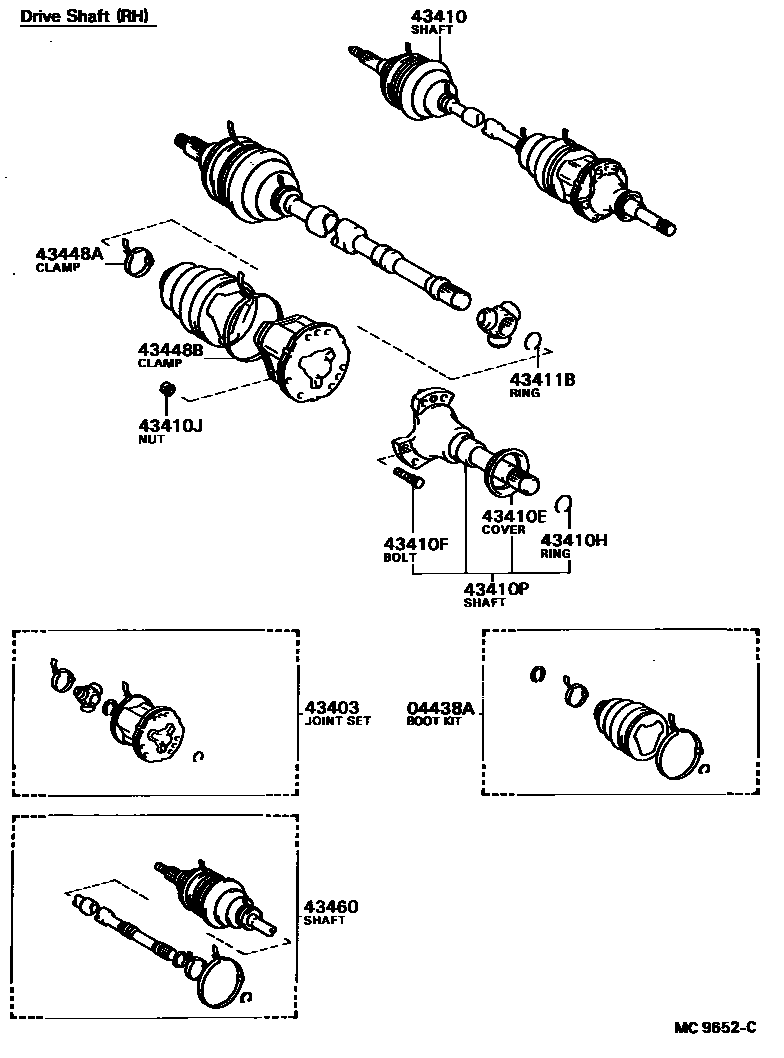

FRONT DRIVE SHAFT

0001 1 0007 1 0011 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12020iAE8#¥11,200198305-198310

sub04438-12021¥10,900

main04438-12021iAE8#¥10,900198310-198410

sub04438-17010¥10,900

main04438-12030iCE80¥10,900198410-198608

sub04438-12031¥10,800

main04438-12031iCE80¥10,800198608-198704

main04438-12040iAE82..GT¥10,800198708-198807

main04438-17010iAE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL¥10,900198410-198608

main04438-17011iAE8#,EE80..(CS,CSX,DX,GL,S,SE,STD)..(ARL,SA)¥10,900198608-198807

main04438-17012iAE82,EE80..(DX,GL,STD,XL)..(EUR,GEN,SA)¥10,800198703-198707

main04438-17020iAE82..GT¥10,900198410-198608

main04438-17021iAE82..GT¥10,800198608-198708

sub04438-12380¥10,800

main04438-32021iCE80¥10,900198305-198410

sub04438-12030¥10,900

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12010iAE8#,EE80..(CS,CSX,DX,GL,S,SE,STD)..(ARL,SA)¥6,800198305-198807

main04438-12011iAE82,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)¥6,800198703-198707

main04438-12060iAE82..GT¥6,700198708-198807

sub04438-17031¥6,700

main04438-17030iAE82..GT¥6,800198410-198708

sub04438-17031¥6,700

main04438-32011iCE80¥6,800198305-198704

sub04438-12050¥6,700

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19035iAE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL¥30,900198305-198807

main43403-39016iCE80¥30,100198305-198704

main43403-39025iAE82..GT¥28,400198410-198807

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12020iAE8#¥82,800198305-198310

sub43410-12021¥82,600

main43410-12021iAE8#¥82,600198310-198410

sub43410-12060¥82,700

main43410-12040iAE82..GT¥82,400198410-198509

sub43410-12090¥82,900

main43410-12050iAE8#,EE80..(DX,GL,STD,XL)..(GEN,SA,SAA)¥79,600198410-198708

sub43410-12080¥83,200

main43410-12060iEE80..EUR¥82,700198410-198601

sub43410-12080¥83,200

main43410-12070iCE80¥82,400198410-198510

sub43410-12H00¥82,400

main43410-12080iAE82..(DX,GL)..EUR¥83,200198505-198804

sub43410-12081¥83,300

sub43525-20030¥300

sub90179-22020¥310

main43410-12090iAE82..GT¥82,900198509-198708

sub43410-12140¥83,300

main43410-12100iCE80¥82,900198510-198704

sub43410-12101¥83,300

sub43525-20030¥300

sub90179-22020¥310

main43410-12140iAE82..GT¥83,300198708-198807

sub43410-12141¥83,300

sub43525-20030¥300

sub90179-22020¥310

main43410-20020iCE80¥82,600198305-198410

sub43410-12070¥82,400

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main41336-12010iAE8#,EE80¥130198305-198807

main41336-32010iCE80¥200198305-198704

RH

main41336-32020iCE80¥310198305-198704

LH

43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)

main90114-08006iAE8#,CE80,EE80¥310198305-198807

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26002iAE8#,EE80¥210198305-198807

main90521-27005iCE80¥110198305-198704

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-08053iAE8#,CE80,EE80¥140198305-198807

43410PSHAFT SUB-ASSY, FRONT DRIVE, RH

main41304-12010iAE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL¥10,900198305-198807

main41304-17010iAE82..GT¥10,900198410-198807

main41304-20010iCE80¥13,600198305-198704

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iAE82,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)¥100198305-198807

main90520-23035iAE8#,EE80..(CS,CSX,DX,GL,S,SE,STD)..(ARL,SA)¥210198305-198807

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iCE80;AE82..GT¥700198305-198807

main90949-01078iAE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL¥80198305-198807

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iCE80;AE82..GT¥630198305-198807

main90949-01079iAE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL¥170198305-198807

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19045iAE8#¥49,200198305-198310

sub43460-19046¥48,900

main43460-19046iAE8#¥48,900198310-198410

sub43460-19095¥49,000

main43460-19095iEE80..EUR¥49,000198410-198601

sub43460-19096¥49,000

main43460-19097iAE82,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)¥49,700198703-198707

sub43460-19098¥55,800

sub43525-20030¥300

sub90179-22020¥310

main43460-19105iCE80;AE82..GT¥41,200198410-198510

sub43460-19106¥49,800

main43460-19115iAE82..(DX,GL)..EUR¥45,700198505-198703

sub43460-19116¥45,700

main43460-19125iAE82..GT¥45,100198509-198510

sub43460-19135¥45,300

main43460-19135iAE82..GT¥45,300198510-198708

sub43460-19136¥50,800

sub43525-20030¥300

sub90179-22020¥310

main43460-19195iAE8#,EE80..(DX,GL,STD,XL)..(GEN,SA,SAA)¥45,700198410-198804

sub43460-19196¥37,200

main43460-19295iAE82..GT¥45,100198708-198807

sub43460-19296¥49,800

sub43525-20030¥300

sub90179-22020¥310

main43460-29016iCE80¥41,300198305-198410

sub43460-19105¥41,200

13 parts on this diagram · 3 diagrams in section
