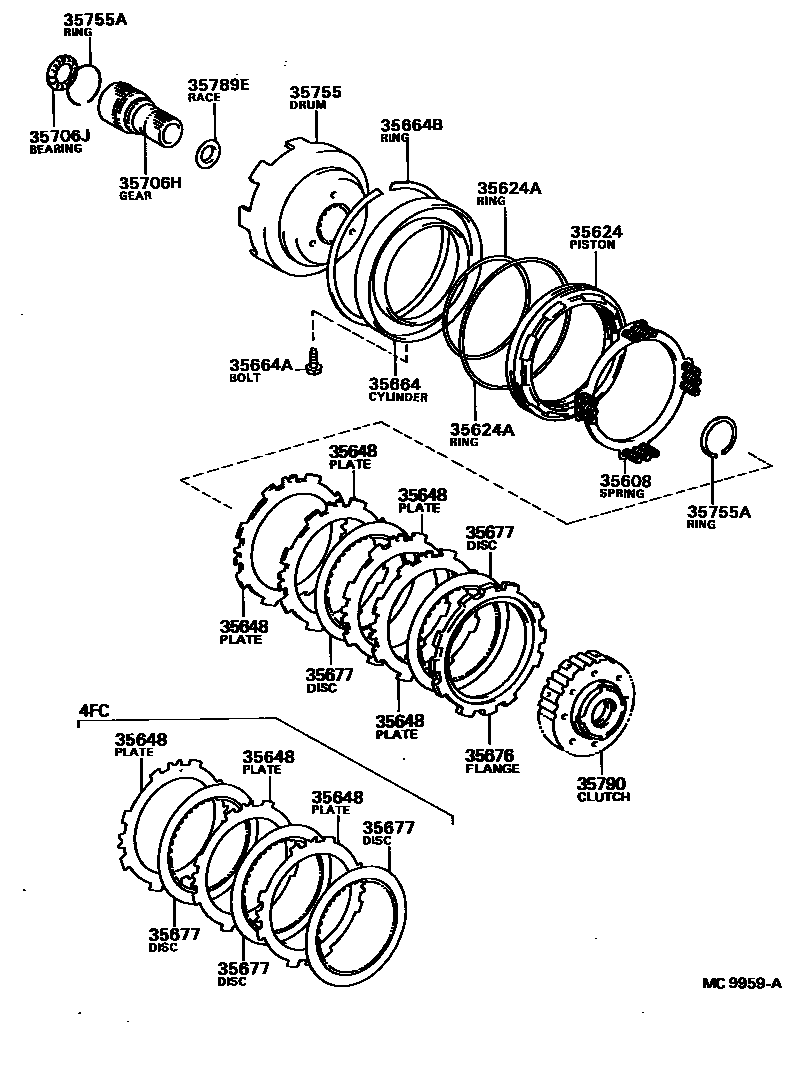

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iAE8#,EE80..ATM198305-198807

35624PISTON, 2ND BRAKE

main35624-32010iAE8#,EE80..ATM198305-198807

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iAE8#,EE80..ATM198305-198807

INNER

main90301-99023iAE8#,EE80..ATM198305-198807

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010×4iAE8#,EE80..ATM198305-198807

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iAE8#,EE80..ATM198305-198807

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iAE8#,EE80..ATM198305-198807

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iAE8#,EE80..ATM198305-198807

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iAE8#,EE80..ATM198305-198807

T=3.5

sub35676-12030

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-12010×3iAE8#..ATM198305-198601

sub35677-32050

main35677-20020×2iAE8#..3FC198601-198711

sub35677-20040

main35677-30040×2iEE80..3FC198508-198707

sub35677-43010

main35677-32030×2iEE80..3FC198410-198508

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-32010iAE8#..ATM198305-198405

main35706-32011iAE8#,EE80..ATM198405-198412

main35706-32012iAE8#,EE80..ATM198412-198807

sub35706-32030

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iAE8#,EE80..ATM198305-198807

35755DRUM, SUN GEAR INPUT

main35755-32010iAE8#..3FC198305-198310

main35755-32020iAE8#,EE80..ATM198310-198807

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iAE8#,EE80..ATM198305-198807

T=1.2,ID=44.0,T=1.2,ID=44.0

main90520-47003iAE8#,EE80..ATM198305-198807

T=2.3,ID=47.1,WD=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iAE8#,EE80..ATM198305-198807

35790CLUTCH ASSY, 1 WAY

main35790-32010iAE8#..3FC198305-198311

main35790-32020iAE8#,EE80..ATM198311-198807

sub35790-32050

15 parts on this diagram · 1 diagram in section
