TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

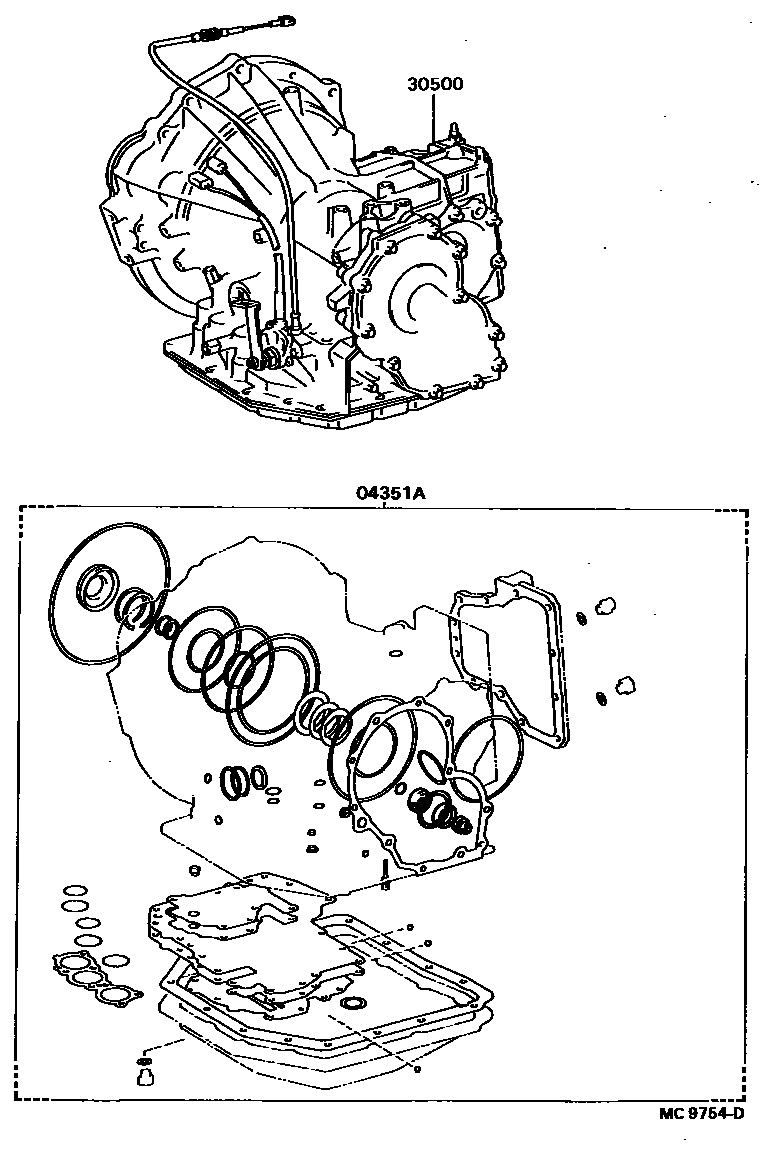

Parts diagram
04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)
main04351-10020i198410-198505
sub04351-10030
main04351-10030i198505-198707
main04351-12021i198305-198405
sub04351-12022
main04351-12022i198405-198505
sub04351-12040
sub04351-12050
main04351-12050i198505-198807
main04351-20050i198402-198405
sub04351-20051
main04351-20051i198405-198505
sub04351-20060
sub04351-20070
main04351-20060i198505-198807
30500TRANSAXLE ASSY, AUTOMATIC
main30500-12040i198305-198409
sub30500-12041
sub91611-61020
main30500-12041i198409-198704
sub30500-12042
sub11355-15060
sub11361-16020
sub16268-15060
sub16322-15030
sub32923-12071
sub35013-12141
sub90341-18021
sub90430-18008
sub91611-41025
main30500-12042i198704-198807
sub30500-12043
main30500-12050i198305-198409
sub30500-12051
sub91611-61020
main30500-12051i198409-198505
sub30500-12052
sub11355-15060
sub11361-16020
sub16268-15050
sub16322-15030
sub32923-12071
sub35013-12141
sub90341-18021
sub90430-18008
sub91611-61025
main30500-12070i198305-198410
MIDDLE EAST SPEC
sub30500-12071
sub91611-61020
main30500-12091i198410-198704
sub30500-12092
sub11355-15060
sub11361-16020
sub16268-15060
sub16322-15030
sub32923-12071
sub35013-12141
sub90341-18021
sub90430-18008
sub91611-41025
main30500-12092i198704-198807
sub30500-12093
main30500-12121i198410-198704
sub30500-12122
sub11355-11011
sub33117-10011
sub90341-18021
sub90430-18008
sub91611-41025
main30500-12122i198704-198704
sub30500-12123
main30500-12130i198410-198505
main30500-12131i198505-198704
sub30500-12132
sub11355-11011
sub33117-10011
sub90341-18021
sub90430-18008
sub91611-41025
main30500-12132i198704-198704
sub30500-12133
main30500-12140i198410-198704
sub30500-12141
sub11355-11011
sub33117-10011
sub90341-18021
sub90430-18008
sub91611-41025
main30500-12141i198704-198704
sub30500-12142
main30500-12160i198410-198704
MIDDLE EAST SPEC
sub30500-12161
sub11355-11011
sub33117-10011
sub90341-18021
sub90430-18008
sub91611-41025
main30500-12161i198704-198704
MIDDLE EAST SPEC
sub30500-12162
main30500-12170i198604-198704
NEW ZEALAND SPEC
sub30500-12171
sub11355-11011
sub33117-10011
sub90341-18021
sub90430-18008
sub91611-41025
main30500-12171i198704-198704
NEW ZEALAND SPEC
sub30500-12172
main30500-12180i198512-198704
VENEZUELA SPEC
sub30500-12181
sub11355-15060
sub11361-16020
sub16268-15060
sub16322-15030
sub32923-12071
sub35013-12141
sub90341-18021
sub90430-18008
sub91611-41025
main30500-20120i198402-198409
sub30500-20121
sub91611-61020
main30500-20121i198409-198704
sub30500-20122
sub11355-15060
sub11361-16020
sub16268-15050
sub16268-15060
sub16322-15030
sub91611-41025
main30500-20122i198704-198807

2 parts on this diagram · 2 diagrams in section
