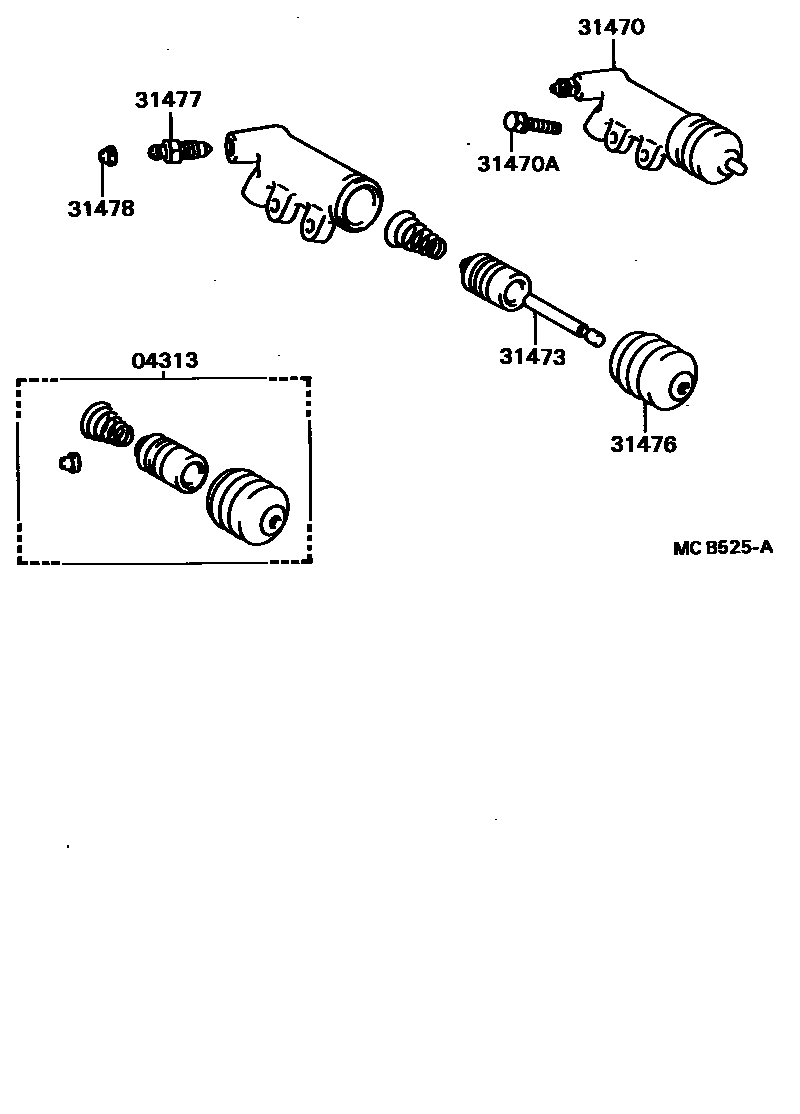

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12010iAE8#..MTM..(EUR,GEN,SA,SAA)¥1,030198305-198804

main04313-22020iCE80¥1,040198405-198804

sub04313-12030¥800

main04313-30120iEE80..MTM¥1,090198410-198512

sub04313-26020¥1,090

main04313-32010iCE80¥1,030198305-198405

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10010iEE80..MTM¥7,400198512-198804

sub31470-10011¥7,500

main31470-12040iAE8#..MTM¥7,300198305-198410

sub31470-12041¥7,400

sub91611-40820¥130

main31470-12041iAE8#..MTM..(EUR,GEN,SA)¥7,400198410-198804

sub31470-12042¥7,500

main31470-12060iEE80..MTM¥7,900198410-198512

sub31470-10040¥8,700

main31470-32010iCE80¥7,200198305-198405

sub31470-32020¥7,200

main31470-32020iCE80¥7,200198405-198704

sub31470-32021¥7,500

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAE8#,EE80..MTM..(EUR,GEN,SA,SAA)¥170198409-198804

*8-1.25PX22-17.1

main91611-60825iCE80;AE8#..MTM..ARL¥140198305-198807

*8-1.25PX25-25

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iAE8#,CE80,EE80..MTM..(EUR,GEN,SA,SAA)¥450198305-198804

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE8#,CE80,EE80..MTM..(EUR,GEN,SA,SAA)¥230198305-198804

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCE80,EE80..MTM¥180198305-198804

main47547-60020iAE8#..MTM..(EUR,GEN,SA,SAA)¥230198305-198804

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAE8#,CE80,EE80..MTM¥160198305-198807

7 parts on this diagram · 3 diagrams in section
