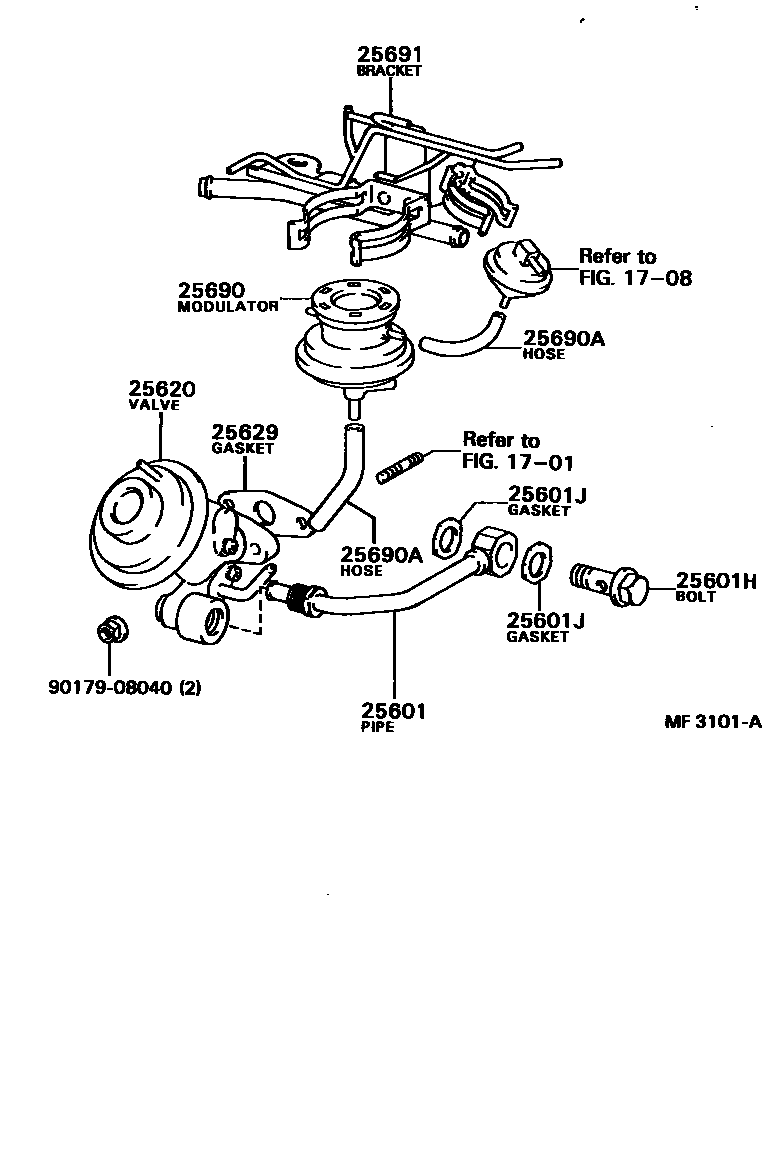

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1701

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25601-11010i2ELC..EE80198505-198807

main25601-15030i2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG198305-198807

25601HBOLT, UNION(FOR EGR PIPE,NO.1)

main90401-20003i2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG198305-198807

25601JGASKET(FOR EGR PIPE, NO.1)

main90430-20005i2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG198305-198807

25620VALVE ASSY, EGR

main25620-11060i2ELC..EE80198505-198807

main25620-15030i4ALC..AE82..3FC..FRG198605-198704

main25620-15220i4ALC..AE82..3FC198305-198704

main25620-15240i4ALC..AE82..5F..SDZ;2ALC,4ALC..AE8#..MTM..ARL198305-198807

main25620-15250i4ALC..AE82..5F..FRG198508-198704

main25620-15250i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main25620-15310i2ALC,4ALC..AE8#..ATM..ARL198411-198807

25629GASKET, EGR VALVE ADAPTER

main25629-15011i2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG198305-198807

25690MODULATOR ASSY, EGR VACUUM

main25870-11030i2ELC..EE80198505-198807

main25870-15110i4ALC..AE82..3FC..FRG198605-198704

main25870-15120i4ALC..AE82..MTM..ARL198411-198501

main25870-15130i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main25870-15130i4ALC..AE82..5F..FRG198508-198704

main25870-15140i2ALC..AE80;4ALC..AE82..3FC;4ALC..AE82..5F..SDZ198305-198704

main25870-15180i4ALC..AE82..MTM..ARL198501-198511

main25870-16030i2ALC..AE80198511-198807

main25870-16040i4ALC..AE82..MTM..ARL198511-198807

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11041i2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG198305-198807

main90445-11080i2ELC..EE80198505-198807

25691BRACKET, EGR VACUUM MODULATOR

main25691-11010i2ELC..EE80..SDZ198505-198608

main25691-16010i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main25691-16010i2ALC,4ALC..AE8#..ARL198511-198807

main25691-16060i4ALC..AE82..SDZ;2ALC,4ALC..AE8#..ARL198305-198704

main25691-16111i4ALC..AE82..FRG198508-198704

9017908040

main90179-08040

11 parts on this diagram · 2 diagrams in section
