TIMING GEAR COVER & REAR END PLATE

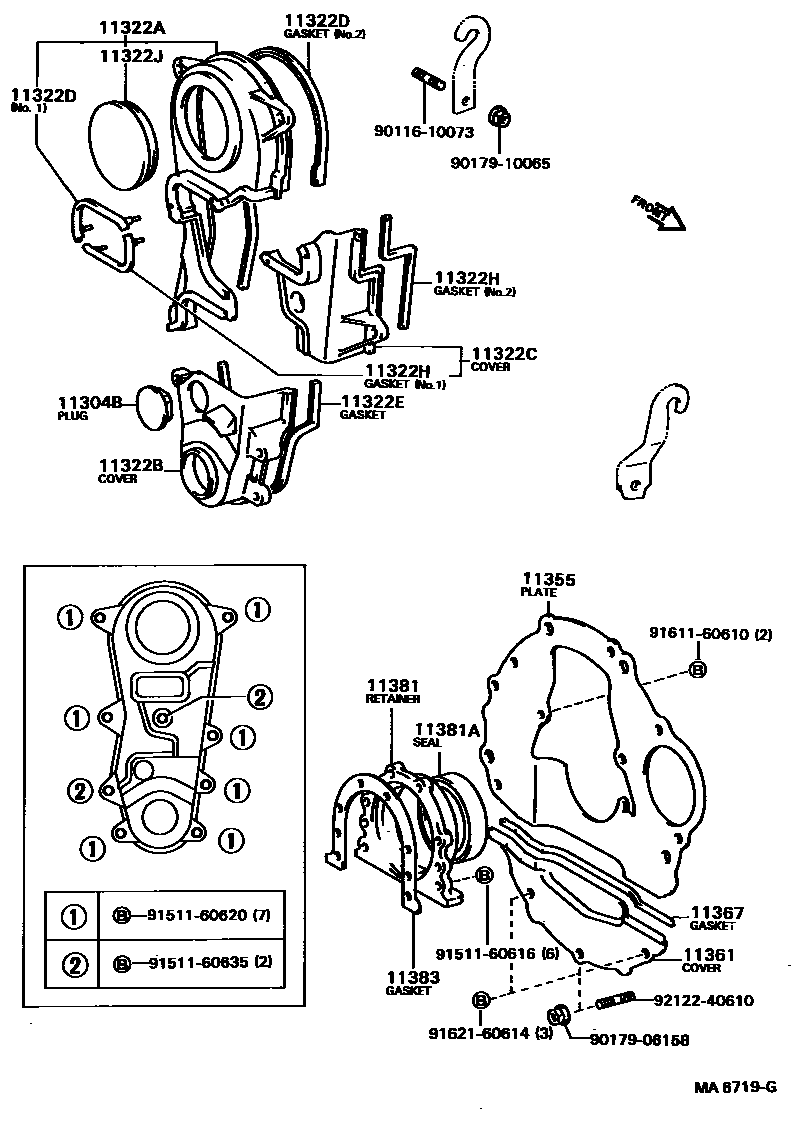

Parts diagram
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
main90950-01357i198305-198704
OD=64
main90950-01391i198305-198807
OD=34
main90950-01535i198601-198807
OD=22
11322ACOVER, TIMING BELT, NO.1
main11302-11020i198410-198604
main11302-11040i198604-198703
sub11302-11041
main11302-11041i198703-198708
sub11302-11042
main11302-11042i198708-198807
sub11302-11043
sub90387-06015
main11302-15030i198305-198401
sub11302-15031
main11302-15031i198401-198807
main11302-16010i198410-198601
sub11302-16011
main11302-16011i198601-198807
main11321-64010i198305-198704
sub11321-64011
11322BCOVER, TIMING BELT, NO.2
main11303-10020i198410-198510
main11303-10021i198510-198604
main11303-10022i198604-198807
sub11303-10023
sub90387-06015
main11303-15030i198305-198401
main11303-15031i198401-198807
main11303-16020i198410-198601
sub11303-16021
sub90109-10096
sub90109-10099
sub90950-01534
sub90950-01535
main11303-16021i198601-198807
main11322-64010i198305-198704
11322CCOVER, TIMING BELT, NO.3
main11304-15010i198305-198807
main11323-10010i198410-198604
main11323-10011i198604-198807
main11323-64010i198305-198602
sub11323-64011
main11323-64011i198602-198704
11322DGASKET, TIMING BELT COVER, NO.1
main11328-11031i198604-198807
main11328-15030i198305-198807
NO.2
main11328-64020i198305-198704
main11346-15010i198305-198807
NO.1
11322EGASKET, TIMING BELT COVER, NO.2
main11329-15030i198305-198807
main11329-16010i198410-198807
main11329-64020i198305-198704
11322HGASKET, TIMING BELT COVER, NO.3
main11319-15010i198305-198807
NO.2
main11319-16010i198410-198504
sub11319-16011
main11319-16011i198504-198807
main11346-15010i198305-198807
NO.1
11322JRETAINER(FOR TIMING BELT COVER)
main90950-01390i198608-198807
sub90950-01497
11355PLATE, REAR END
main11355-10010i198410-198704
sub11355-10011
main11355-10011i198704-198807
sub11355-10012
main11355-11010i198410-198704
sub11355-11011
main11355-11011i198704-198807
sub11355-11012
main11355-15050i198305-198609
main11355-15060i198609-198807
main11355-64030i198305-198505
sub11355-64031
main11355-64031i198505-198606
sub11355-64032
sub91661-60616
main11355-64032i198606-198704
sub11355-64050
sub11356-64040
11361COVER, FLYWHEEL HOUSING UNDER
main11361-15020i198305-198312
sub11361-15021
main11361-15021i198312-198807
sub11361-16020
main11361-16020i198703-198705
sub11361-16040
main11361-16040i198705-198807
11367GASKET, FLYWHEEL HOUSING UNDER
main11367-15030i198305-198807
11381RETAINER, ENGINE REAR OIL SEAL
main11381-10010i198410-198411
sub11381-10020
main11381-10020i198411-198807
main11381-15010i198305-198807
main11381-64010i198305-198310
sub11381-64011
main11381-64011i198310-198505
sub11381-64012
main11381-64012i198505-198704
sub11381-64020
11381ASEAL, ENGINE REAR OIL
main90311-70004i198305-198807
sub90311-70007
main90311-75004i198410-198807
sub90311-75006
main90311-90002i198305-198505
sub90311-90003
main90311-90003i198505-198704
sub90311-90005
11383GASKET, ENGINE REAR OIL SEAL RETAINER
main11383-15010i198305-198807
sub11383-15011
main11383-64010i198305-198310
sub11383-64011
9011610073
main90116-10073
9017906158
main90179-06158
9017910065
main90179-10065
9151160616
main91511-60616
9151160620
main91511-60620
9151160635
main91511-60635
9161160610
main91611-60610
9162160614
main91621-60614
9212240610
main92122-40610

23 parts on this diagram · 4 diagrams in section
