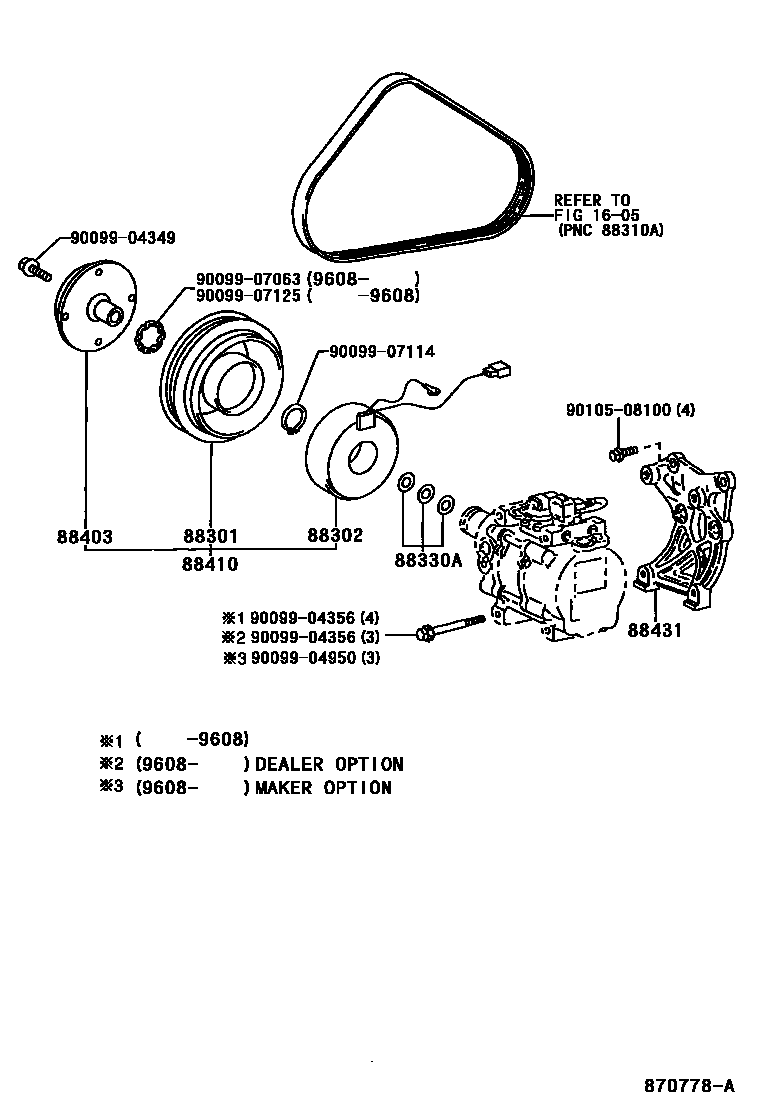

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-16130iEL54..USA199508-199608

PUERTORICO SPEC

main88412-16150iEL54199508-199608

main88412-16160iEL54..CP..USA199608

PUERTORICO SPEC

main88412-16190iEL54199608

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070iEL54199608

main88411-1A040iEL54199508-199608

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iEL54199508

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020iEL54199802

main88403-1A010iEL54199508-199608

88410CLUTCH ASSY, MAGNET

main88410-16181iEL54..USA199508-199608

PUERTORICO SPEC

main88410-16270iEL54199508-199608

main88410-16280iEL54..CP..USA199608

PUERTORICO SPEC

main88410-16300iEL54199608

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16060iEL54..USA199508-199608

PUERTORICO SPEC

main88431-16090iEL54199508-199608

main88431-16140iEL54199608

9009904349

main90099-04349

9009904356

main90099-04356

9009904950

main90099-04950

9009907063

main90099-07063

9009907114

main90099-07114

9009907125

main90099-07125

9010508100

main90105-08100

14 parts on this diagram · 3 diagrams in section
