OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-20220iEL54..ATM199508

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iEL54..ATM199508

84722SWITCH, TRANSMISSION CONTROL

main84722-16100-B1iEL54..ATM199508

GRAY,TRIM1#

85420BSOLENOID ASSY, TRANSMISSION

main85420-20140iEL54..ATM199508-199809

LOCK UP

sub85420-21070

main85420-21070iEL54..ATM199809

DENSO, LOCK UP

main85420-21080iEL54..ATM199809-199810

AISIN, LOCK UP

sub85420-21070

main85420-21090iEL54..ATM199809

DENSO, NO.1 & NO.2

main85420-21100iEL54..ATM199809

AISIN, NO.1 & NO.2

main85420-30200iEL54..ATM199508-199809

NO.1 & NO.2

sub85420-21090

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iEL54..ATM199508

85425ARING, O (FOR OVERDRIVE SOLENOID)

main96721-24018iEL54..ATM199508

89411CSENSOR, SPEED

main89411-20040iEL54..ATM199508

89414ROTOR, SENSOR

main89414-12010iEL54..ATM199508

9010506049

main90105-06049

9161160814

main91611-60814

9672119009

main96721-19009

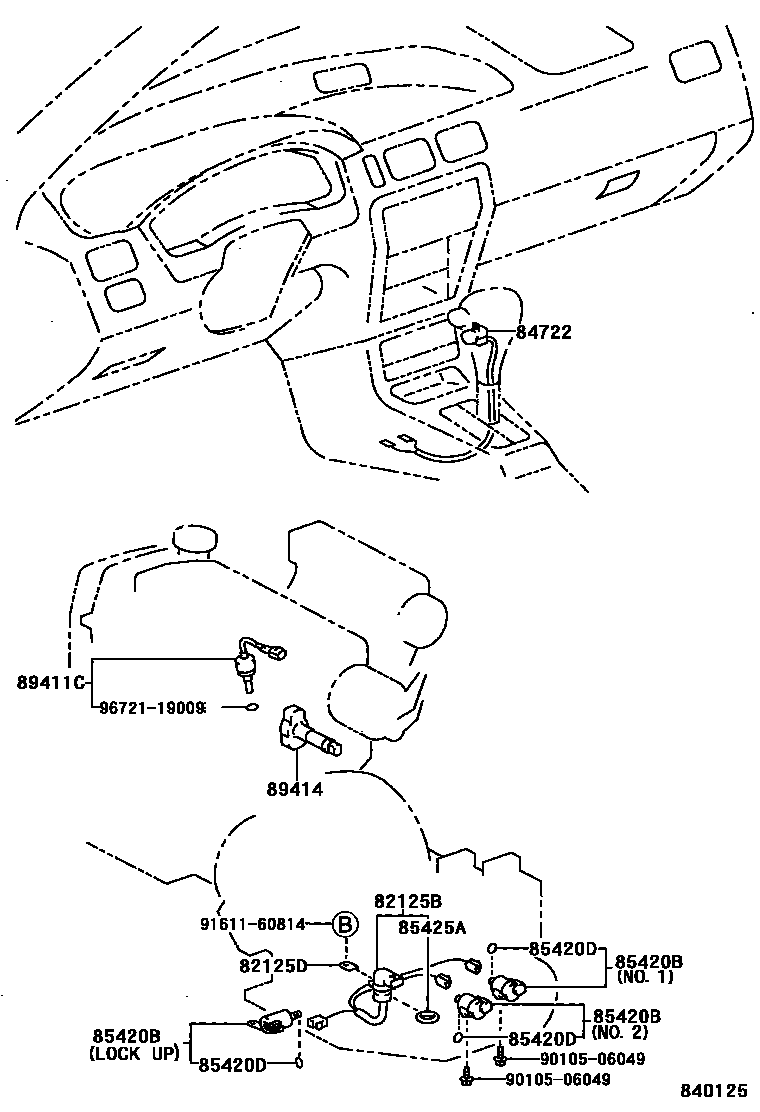

11 parts on this diagram · 1 diagram in section
