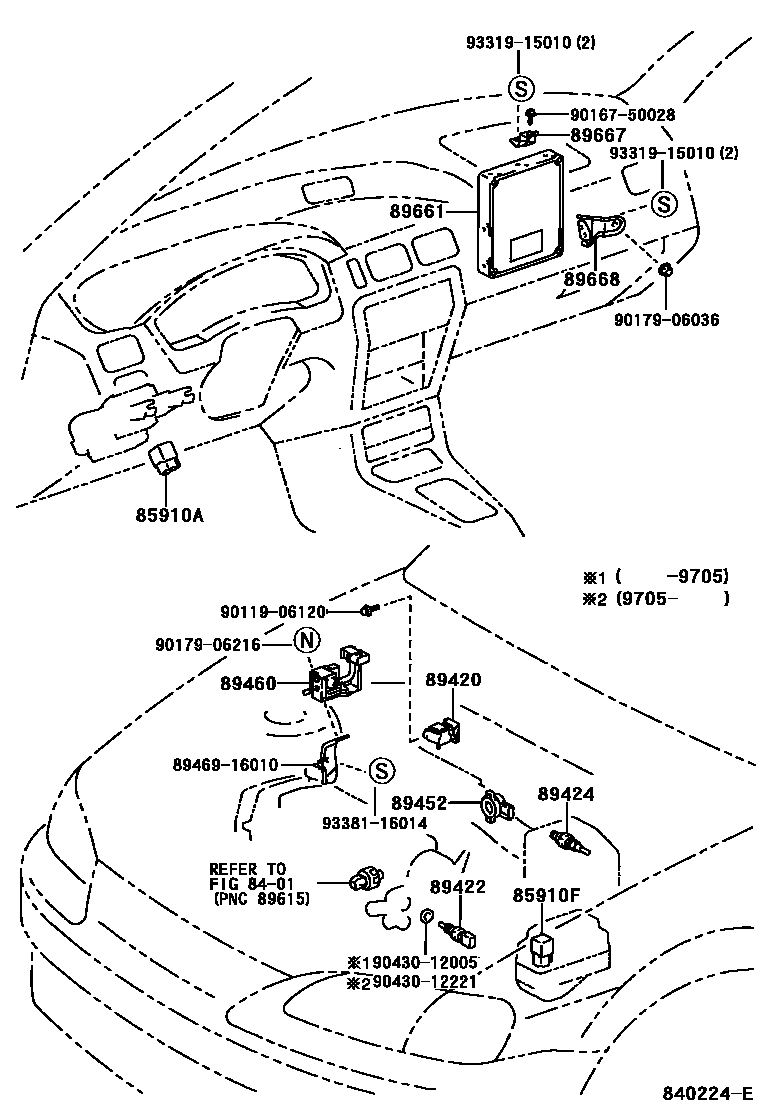

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iEL54199508

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iEL54199508

89420SENSOR ASSY, VACUUM

main89420-0W020iEL54..CVT199604-199802

DELCO

main89420-16060iEL54199604-199802

DENSO

main89420-16060iEL54199508-199604

main89420-16090iEL54..CP199712-199802

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEL54199705

DENSO

main89422-20010iEL54199508-199705

main89422-22030iEL54199705

SAAMOSTA

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL54199508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEL54199702-199808

sub89452-20130

main89452-20130iEL54199608-199702

main89452-22090iEL54199508-199608

89460SENSOR ASSY, VAPOR PRESSURE

main89460-16010iEL54199608

89661COMPUTER, ENGINE CONTROL

main89661-16460iEL54..MTM199508-199512

sub89661-16461

main89661-16461iEL54..MTM199512-199608

main89661-16470iEL54..ATM199508-199608

main89661-16530iEL54..MTM199608-199802

main89661-16531iEL54..MTM199709-199712

main89661-16540iEL54..ATM199608-199802

main89661-16541iEL54..ATM199709-199712

main89661-16620iEL54..CP..MTM199712-199803

sub89661-16621

main89661-16621iEL54..MTM199803-199808

main89661-16622iEL54..MTM199808

main89661-16640iEL54..ATM199712-199803

sub89661-16641

main89661-16641iEL54..ATM199803-199808

main89661-16642iEL54..ATM199808

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16060iEL54199508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-16050iEL54..MTM199508-199608

main89668-16070iEL54..CP199712-199802

main89668-16080iEL54199508-199802

8946916010BRACKET, ALTITUDE COMPENSATION SWITCH

main89469-16010

9011906120

main90119-06120

9016750028

main90167-50028

9017906036

main90179-06036

9017906216

main90179-06216

9043012005

main90430-12005

9043012221

main90430-12221

9331915010

main93319-15010

9338116014

main93381-16014

20 parts on this diagram · 1 diagram in section
