WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE WIRE 0003 1INSTRUMENT WIRE 0004 1DOOR, ROOF WIRE 0005 1FLOOR, LUGGAGE WIRE 0006 1FLOOR, LUGGAGE WIRE 0007 1CABLE BOND 0008 1CLAMP & BRACKET 0009 1CRAMP & BRACKET

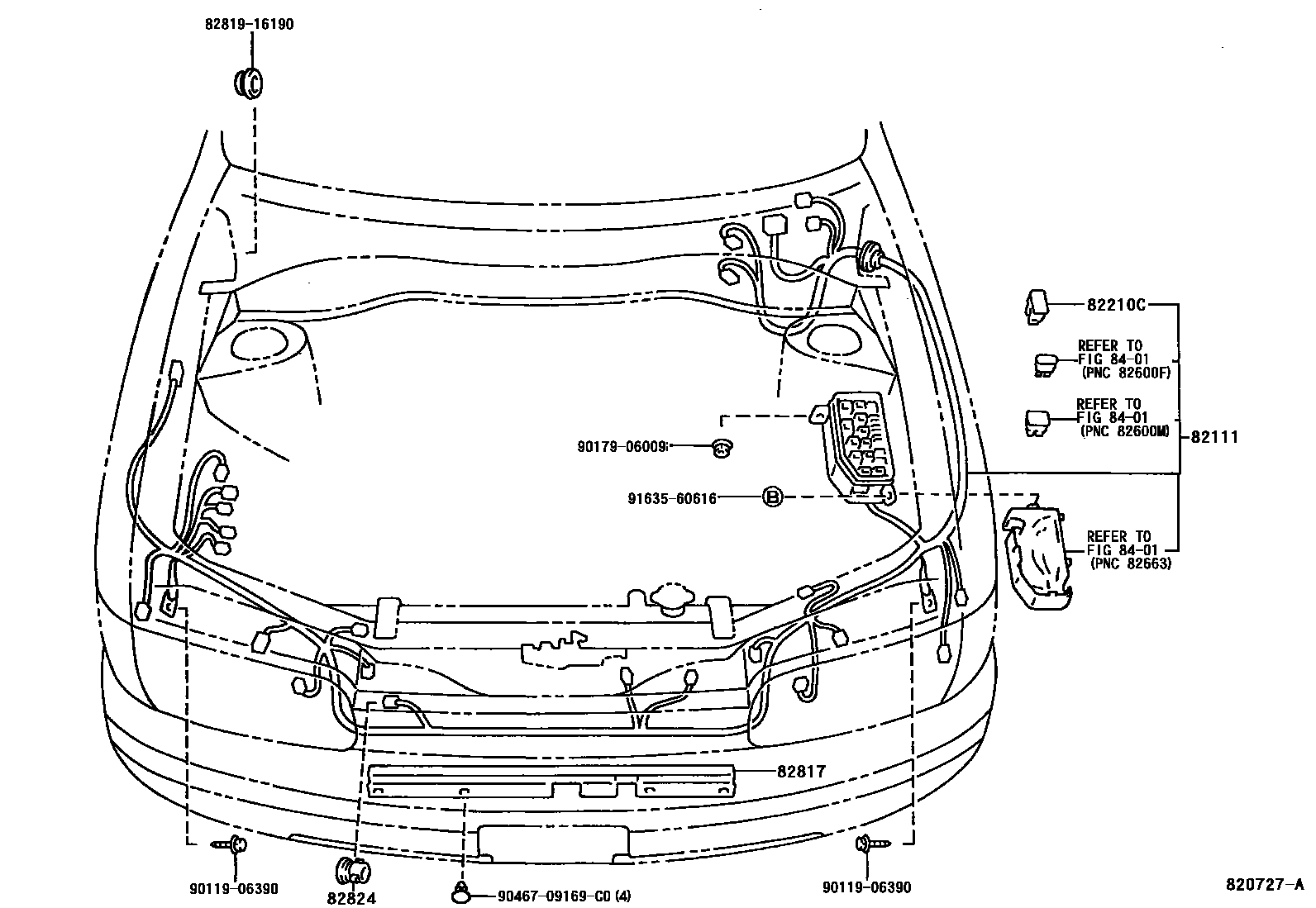

82111WIRE, ENGINE ROOM MAIN

main82111-1G710iEL54..USA¥39,900199508-199608

PUERTORICO SPEC

main82111-1G711iEL54..CP..USA¥37,200199608-199712

PUERTORICO SPEC

main82111-1G712iEL54..CP..USA¥40,100199712

PUERTORICO SPEC

main82111-1G740iEL54..USA¥37,100199508-199608

main82111-1G741iEL54..USA¥37,200199608-199802

main82111-1G742iEL54..CP..USA¥37,200199712-199802

main82111-1G750iEL54..USA¥92,500199508-199608

W(ABS)

main82111-1G751iEL54..CVT¥92,800199608-199802

W(ABS)

main82111-1G752iEL54..USA¥92,800199712-199802

W(ABS)

main82111-1G760iEL54..USA¥39,900199508-199608

W(CRUISE CONTOROL)

main82111-1G761iEL54..CVT¥40,100199608-199802

W(CRUISE CONTOROL)

main82111-1G762iEL54..USA¥40,100199712-199802

W(CRUISE CONTOROL)

main82111-1G770iEL54..CND¥105,000199508-199608

W(ABS)

main82111-1G771iEL54..CND¥92,800199608-199712

W(ABS)

main82111-1G772iEL54..CND¥92,800199712

W(ABS)

main82111-1G780iEL54..CND¥42,800199508-199608

W(CRUISE CONTOROL)

main82111-1G781iEL54..CND¥37,200199608-199712

W(CRUISE CONTOROL)

main82111-1G782iEL54..CND¥46,000199712

W(CRUISE CONTOROL)

main82111-1G830iEL54..CND¥42,800199508-199608

main82111-1G831iEL54..CND¥42,900199608-199712

main82111-1G832iEL54..CND¥42,900199712

82210CFUSIBLE LINK

main90982-08189iEL54..CVT¥440199508-199802

40A,TERM.:FEMALE,GRN

main90982-08190iEL54¥750199508

60A,TERM.:FEMALE,YEL

main90982-08246iEL54¥440199508

100A,TERM.:MALE,BLUE

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-16480iEL54¥2,570199508-199802

82824CONNECTOR, WIRING HARNESS

main82824-20050iEL54¥940199508

8401

8281916190GROMMET, WIRING HARNESS

main82819-16190¥860

9011906390

main90119-06390¥70

9017906009

main90179-06009¥120

9046709169C0

main90467-09169C0

9163560616

main91635-60616¥120

10 parts on this diagram · 9 diagrams in section
