HEADLAMP

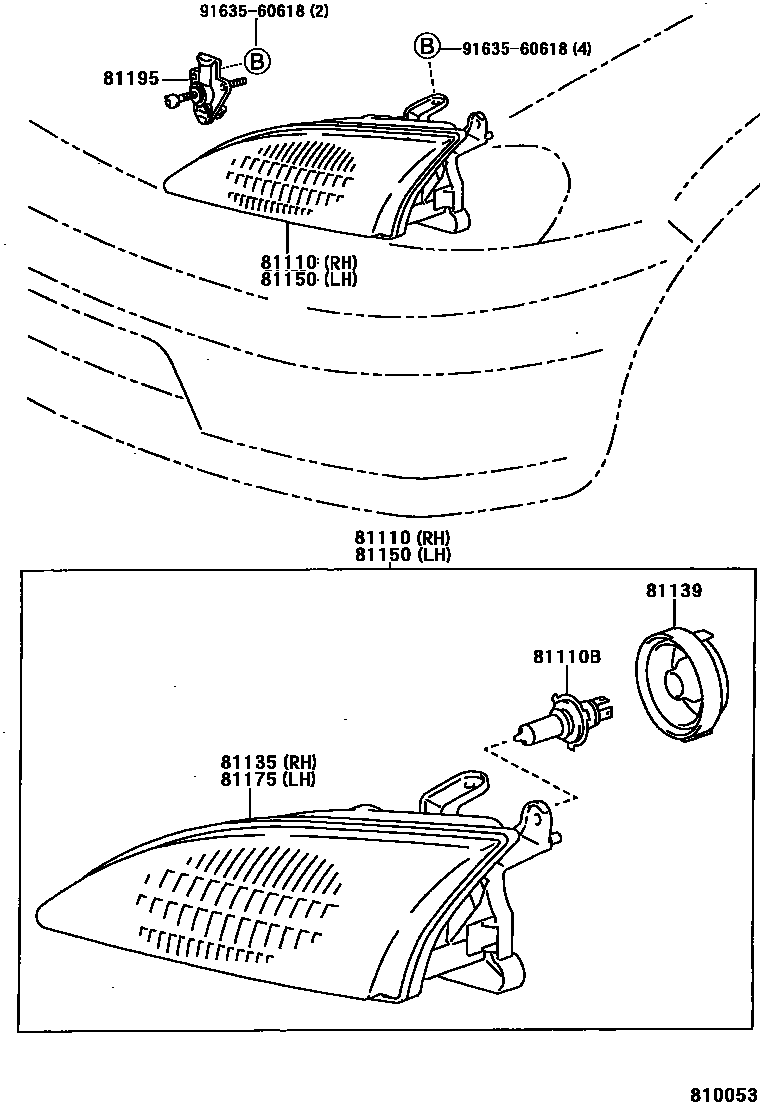

Parts diagram

81110HEADLAMP ASSY, RH

main81110-16620i199508-199802

main81110-16690i199712-199802

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058i199508

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-16620i199508-199802

main81130-16690i199712-199802

81139COVER, HEADLAMP SOCKET

main81139-16610i199508-199512

main81139-16680i199712-199802

main90075-65005i199512-199802

81150HEADLAMP ASSY, LH

main81150-16620i199508-199802

main81150-16690i199712-199802

81175UNIT ASSY, HEADLAMP, LH

main81170-16620i199508-199802

main81170-16690i199712-199802

81195SCREW, HEADLAMP

main81195-16010i199508

9163560618

main91635-60618

8 parts on this diagram · 1 diagram in section
