SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1 0003 1

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-16650-B0iEL54..CP199508-199712

BLUISH GRAY,TRIM1#

main73210-1G020-B1iEL54..CP199712

W(*80),BLUISH GRAY,TRIM1#

sub73210-1G020

main73210-1G060-B0iEL54..CVT199802

BLUISH GRAY,TRIM1#

main73210-1G090-B0iEL54..CND199712

BLUISH GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-1G010-B0iEL54..CP199712

W(*80),BLUISH GRAY,TRIM1#

sub73210-1G010

main73210-1G020-B1iEL54..CND199712

BLUISH GRAY,TRIM1#

sub73210-1G020

main73220-16580-B0iEL54199508-199608

BLUISH GRAY,TRIM1#

main73220-16760-B0iEL54..CP199608-199712

BLUISH GRAY,TRIM1#

main73220-16810-B0iEL54..CVT199802

BLUISH GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-16440-B0iEL54..CVT199802

SHADOW GRAY,TRIM1#

main73240-16220-B0iEL54..CP199508

SHADOW GRAY,TRIM1#

sub73230-10400

sub73240-16220

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-16430-B0iEL54..CVT199802

SHADOW GRAY,TRIM1#

main73240-16220-B0iEL54..CP199608

SHADOW GRAY,TRIM1#

sub73230-10400

sub73240-16220

main73240-16230-B0iEL54199508-199608

SHADOW GRAY,TRIM1#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-16400-B1iEL54..CP199508-199712

BLUISH GRAY,TRIM1#

main73360-16430-B0iEL54..CP199712

BLUISH GRAY,TRIM1#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-16310-B1iEL54..CP199508-199712

BLUISH GRAY,TRIM1#

main73370-16340-B0iEL54..CP199712

BLUISH GRAY,TRIM1#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-16270-B1iEL54199508-199608

BLUISH GRAY,TRIM1#

sub73380-16270

sub73380-16300

main73380-16270-B2iEL54..CP199608-199712

SHADOW GRAY,TRIM1#

sub73380-16270

sub73380-16300

main73380-16340-B0iEL54..CP199712

SHADOW GRAY,TRIM1#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-16270-B1iEL54199508-199608

BLUISH GRAY,TRIM1#

sub73380-16270

sub73380-16300

main73380-16270-B2iEL54..CP199608-199712

SHADOW GRAY,TRIM1#

sub73380-16270

sub73380-16300

main73380-16340-B0iEL54..CP199712

SHADOW GRAY,TRIM1#

73439CUSHION, REAR SEAT BELT RETRACTOR

main73439-12010iEL54..CP199508

73709BRACKET SUB-ASSY, TETHER ANCHOR

main73709-12010iEL54..CND199508

9010511045

main90105-11045

9010911026

main90109-11026

9010911028

main90109-11028

9010911030

main90109-11030

9011911020

main90119-11020

9020617005

main90206-17005

9090119040

main90901-19040

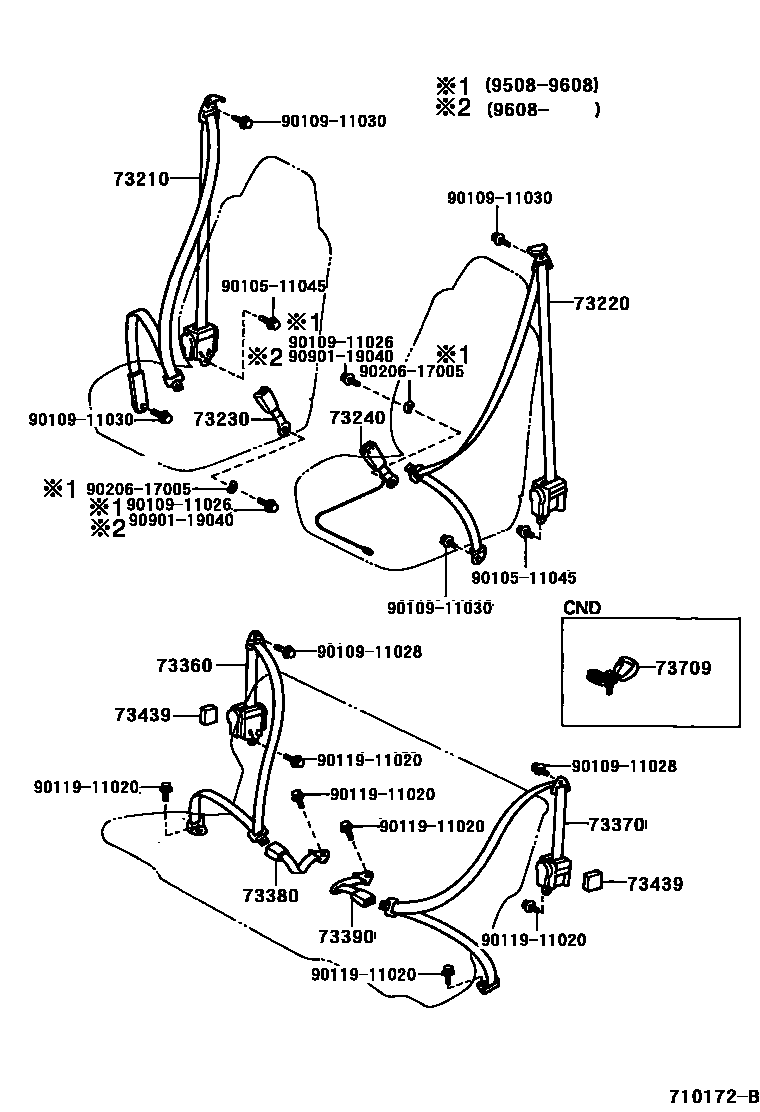

17 parts on this diagram · 3 diagrams in section
