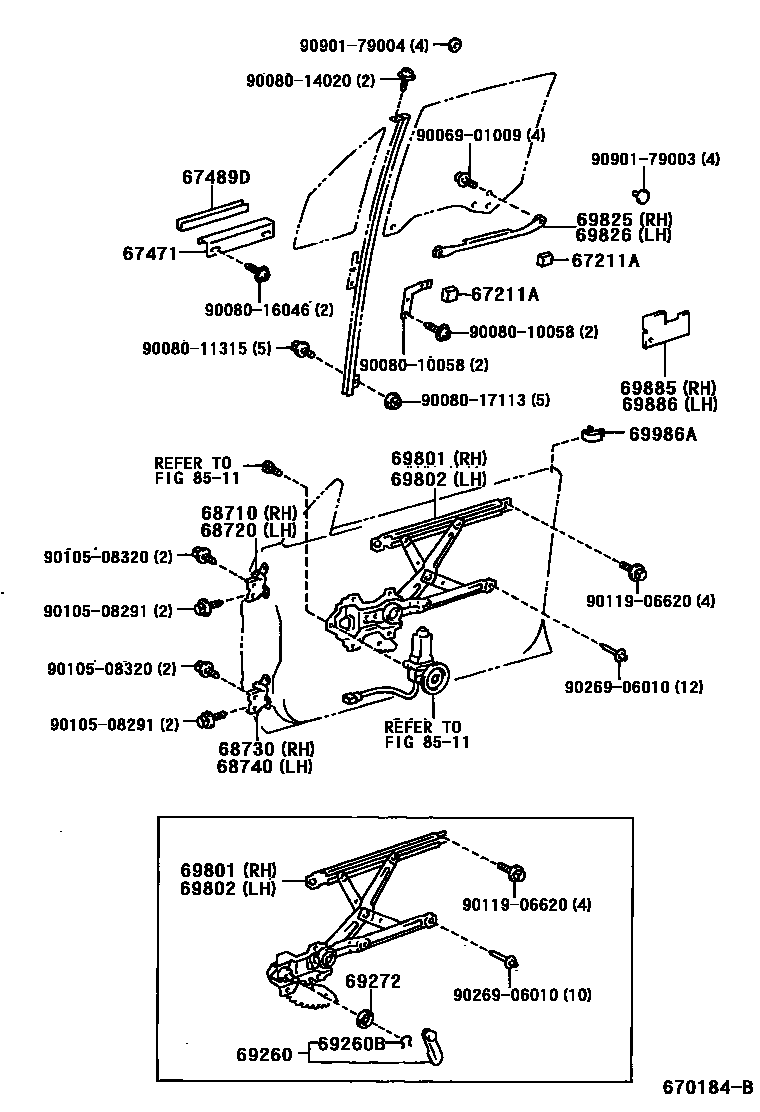

FRONT DOOR WINDOW REGULATOR & HINGE
67211ASTOP, FRONT DOOR WINDOW, UPPER
RH
LH
67471BRACKET, FRONT DOOR WINDOW, FRONT UPPER
67489DGASKET, FRONT DOOR GUIDE BRACKET
68710HINGE ASSY, FRONT DOOR, UPPER RH
sub68710-60050
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
sub68710-60050
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
sub69285-22010
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
W(POWER WINDOW)
W(POWER WINDOW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
W(POWER WINDOW)
W(POWER WINDOW)
69825REINFORCEMENT, FRONT DOOR REGULATOR, RH
69826REINFORCEMENT, FRONT DOOR REGULATOR, LH
69885PLATE, DOOR WINDOW REGULATOR LIFT ARM BRACKET, RH
69886PLATE, FRONT DOOR WINDOW REGULATOR LIFT ARM BRACKET, LH
69986APIECE, FRONT DOOR GLASS GUIDE
8511
9006901009
main90069-01009
9008010058
main90080-10058
9008011315
main90080-11315
9008014020
main90080-14020
9008016046
main90080-16046
9008017113
main90080-17113
9010508291
main90105-08291
9010508320
main90105-08320
9011906620
main90119-06620
9026906010
main90269-06010
9090179003
main90901-79003
9090179004
main90901-79004
30 parts on this diagram · 2 diagrams in section
