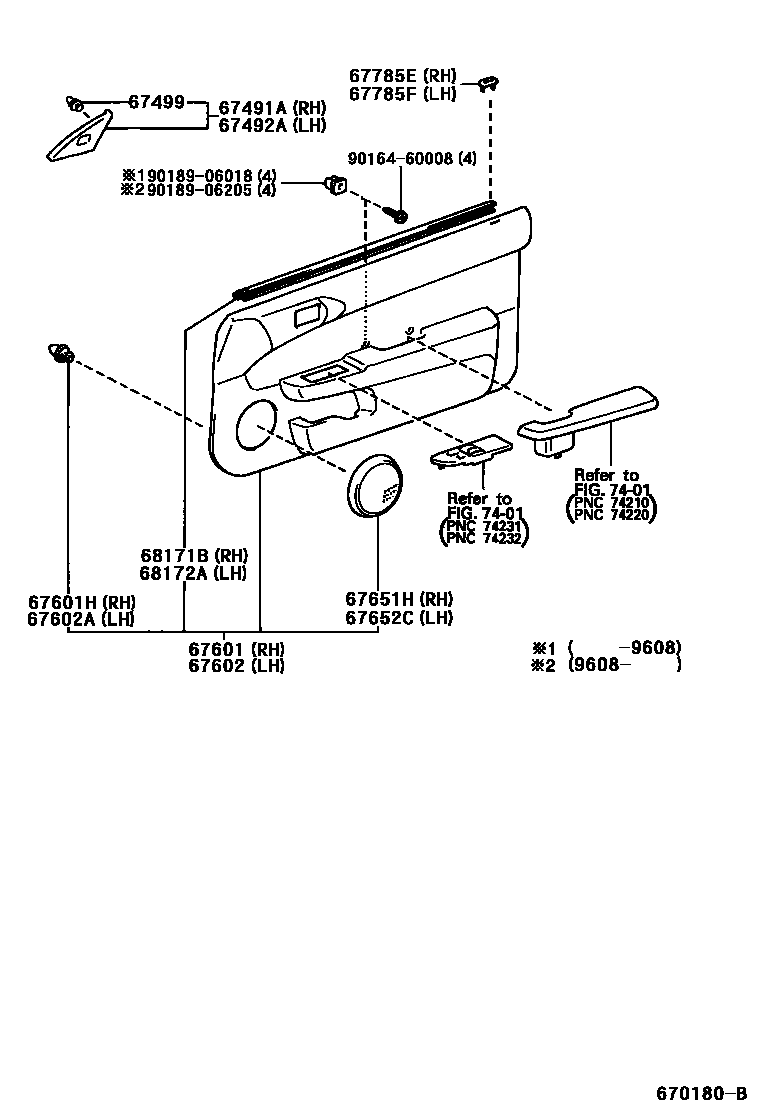

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16270iEL54199508-199907

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16270iEL54199508-199907

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-30070×4iEL54199508-199907

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-1G200-B0iEL54..CP199608-199706

SHADOW GRAY,TRIM1#

main67610-1G201-B0iEL54..CP199706-199712

SHADOW GRAY,TRIM1#

main67610-1G202-B1iEL54..CP199712

SHADOW GRAY,TRIM1#

main67610-1G210-B0iEL54..CP199608-199706

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-1G211-B0iEL54..CP199706-199712

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-1G212-B1iEL54..CP199712

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-1G270-B0iEL54..CVT199609-199706

SHADOW GRAY,TRIM1#

main67610-1G271-B0iEL54..CVT199706-199802

SHADOW GRAY,TRIM1#

main67610-1G272-B1iEL54..CVT199802

SHADOW GRAY,TRIM1#

main67610-1G280-B0iEL54..CVT199609-199706

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-1G281-B0iEL54..CVT199706-199802

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-1G282-B1iEL54..CVT199802

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67650-16620-B0iEL54199508-199608

W(POWER WINDOW),GRAY,TRIM1#

main67650-16800-B0iEL54199508-199608

GRAY,TRIM1#

67601HRETAINER, DOOR TRIM, RH

main67771-12050×4iEL54199712

RED

main67771-16120×8iEL54..CP199608-199712

GRAY

main67771-16160iEL54199508-199608

ORANGE

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67050-16250-B0iEL54..CP199608-199706

SHADOW GRAY,TRIM1#

main67050-16251-B0iEL54..CP199706-199712

SHADOW GRAY,TRIM1#

main67050-16252-B1iEL54..CP199712

SHADOW GRAY,TRIM1#

main67050-16260-B0iEL54..CP199608-199706

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67050-16261-B0iEL54..CP199706-199712

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67050-16262-B1iEL54..CP199712

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67050-16320-B0iEL54..CVT199609-199706

SHADOW GRAY,TRIM1#

main67050-16321-B0iEL54..CVT199706-199802

SHADOW GRAY,TRIM1#

main67050-16322-B1iEL54..CVT199802

SHADOW GRAY,TRIM1#

main67050-16330-B0iEL54..CVT199609-199706

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67050-16331-B0iEL54..CVT199706-199802

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67050-16332-B1iEL54..CVT199802

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67620-1G810-B0iEL54199508-199608

GRAY,TRIM1#

sub67620-1G860

main67620-1G830-B0iEL54199508-199608

W(POWER WINDOW),GRAY,TRIM1#

67602ARETAINER, DOOR TRIM, LH

main67771-12050×4iEL54199712

RED

main67771-16120×10iEL54199508-199608

GRAY

main67771-16160iEL54199508-199608

ORANGE

67651HGRILLE, SPEAKER DOOR, RH

main67651-16070-B1iEL54199508

SHADOW GRAY,TRIM1#

67652CGRILLE, SPEAKER DOOR, LH

main67651-16070-B1iEL54199508

SHADOW GRAY,TRIM1#

67785EHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH

main69751-12050-B0iEL54199608

SHADOW GRAY,TRIM1#

67785FHOLDER, FRONT DOOR LOCK CONTROL KNOB, LH

main69751-12050-B0iEL54199608

SHADOW GRAY,TRIM1#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-16140iEL54199508-199608

main68171-16170iEL54..CP199608-199712

main68171-16180iEL54..CVT199609-199802

main68171-16210iEL54..CP199712

main68171-16220iEL54..CVT199802

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-16160iEL54199508-199608

main68172-16190iEL54..CP199608-199712

main68172-16200iEL54..CVT199609-199802

main68172-16230iEL54..CP199712

main68172-16240iEL54..CVT199802

9016460008

main90164-60008

9018906018

main90189-06018

9018906205

main90189-06205

16 parts on this diagram · 3 diagrams in section
