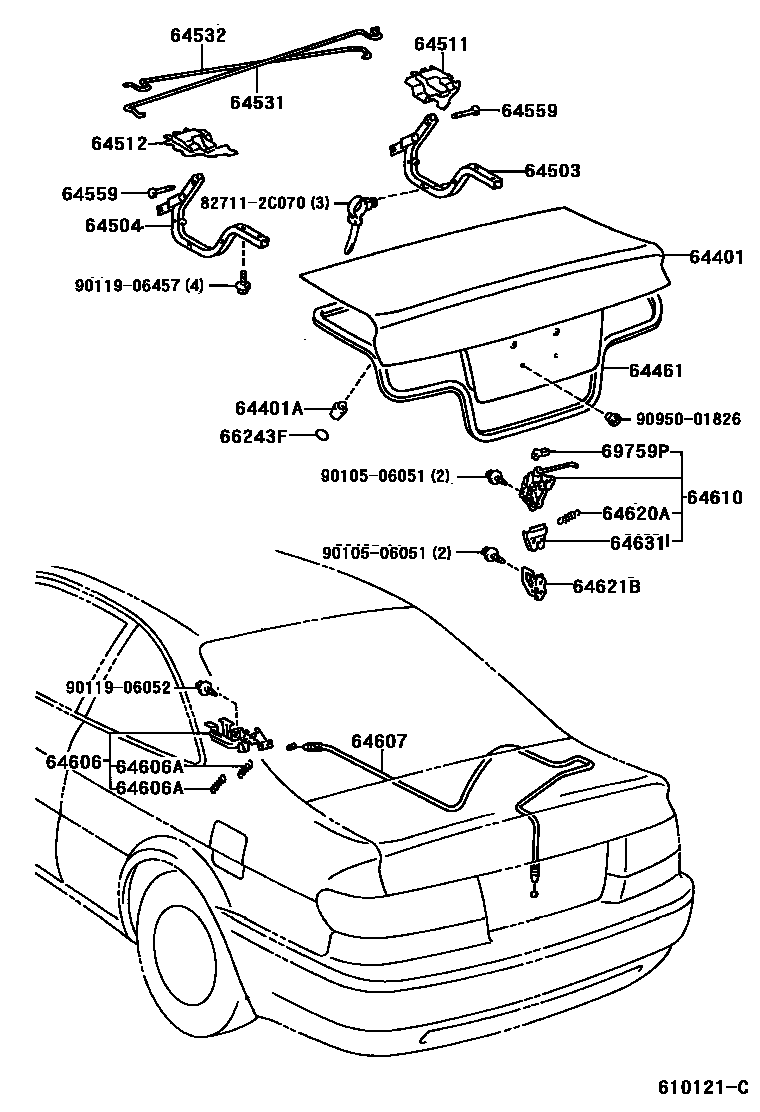

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-16220iEL54..CP199508

main64401-16250iEL54..CP199508

W(REAR SPOILER)

main64401-16250iEL54..CVT199609

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09055iEL54199508-199608

sub90541-09043

main90541-09087iEL54199608

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-16170iEL54199508

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-16050iEL54..CP199508

main64510-0W010iEL54..CVT199609

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-16050iEL54..CP199508

main64520-0W010iEL54..CVT199609

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-0W010iEL54..CVT199609

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-0W010iEL54..CVT199609

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-16170iEL54..CP199508

main64531-16190iEL54..CP199508

W(REAR SPOILER)

main64531-16190iEL54..CVT199609

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-16170iEL54..CP199508

main64532-16190iEL54..CP199508

W(REAR SPOILER)

main64532-16190iEL54..CVT199609

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iEL54199508

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-16060iEL54199508

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iEL54199508

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-16370iEL54199508

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-16120iEL54199508

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-06008iEL54199508

OD=5.5,CW=13.25

main90506-07013iEL54199508

OD=6.5,CW=12.5

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-16020iEL54199508

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-16020iEL54199508

66243FPROTECTOR, REAR BODY, NO.1

main66243-20010iEL54199508-199610

main90950-06089iEL54199610

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-24050iEL54199508

827112C070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C070

9010506051

main90105-06051

9011906052

main90119-06052

9011906457

main90119-06457

9095001826

main90950-01826

24 parts on this diagram · 1 diagram in section
