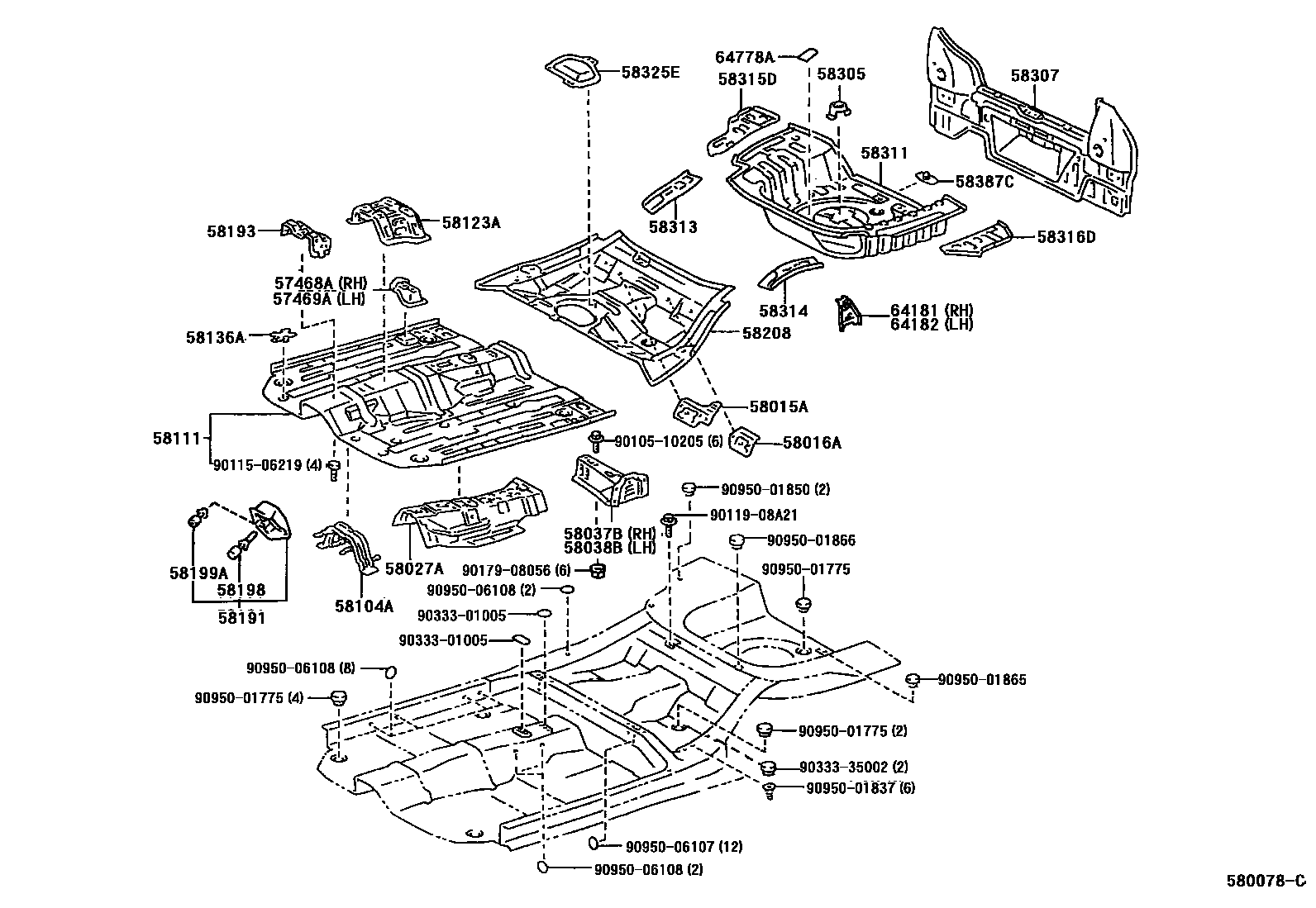

FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58037BREINFORCE, CENTER PILLAR TO FLOOR, RH
58038BREINFORCE, CENTER PILLAR TO FLOOR, LH
58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT
58123ASUPPORT, SHIFT & SELECT LEVER
W(*80)
58136ACOVER, FRONT FLOOR SERVICE HOLE
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58387CPLATE, REAR FLOOR FINISH
64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR
64182REINFORCEMENT, REAR SEAT BELT ANCHOR, NO.2
64778APROTECTOR, SPARE WHEEL
9010510205
main90105-10205
9011506219
main90115-06219
9011908A21
main90119-08A21
9017908056
main90179-08056
9033301005
main90333-01005
9033335002
main90333-35002
9095001775
main90950-01775
9095001837
main90950-01837
9095001850
main90950-01850
9095001865
main90950-01865
9095001866
main90950-01866
9095006107
main90950-06107
9095006108
main90950-06108
41 parts on this diagram · 2 diagrams in section
