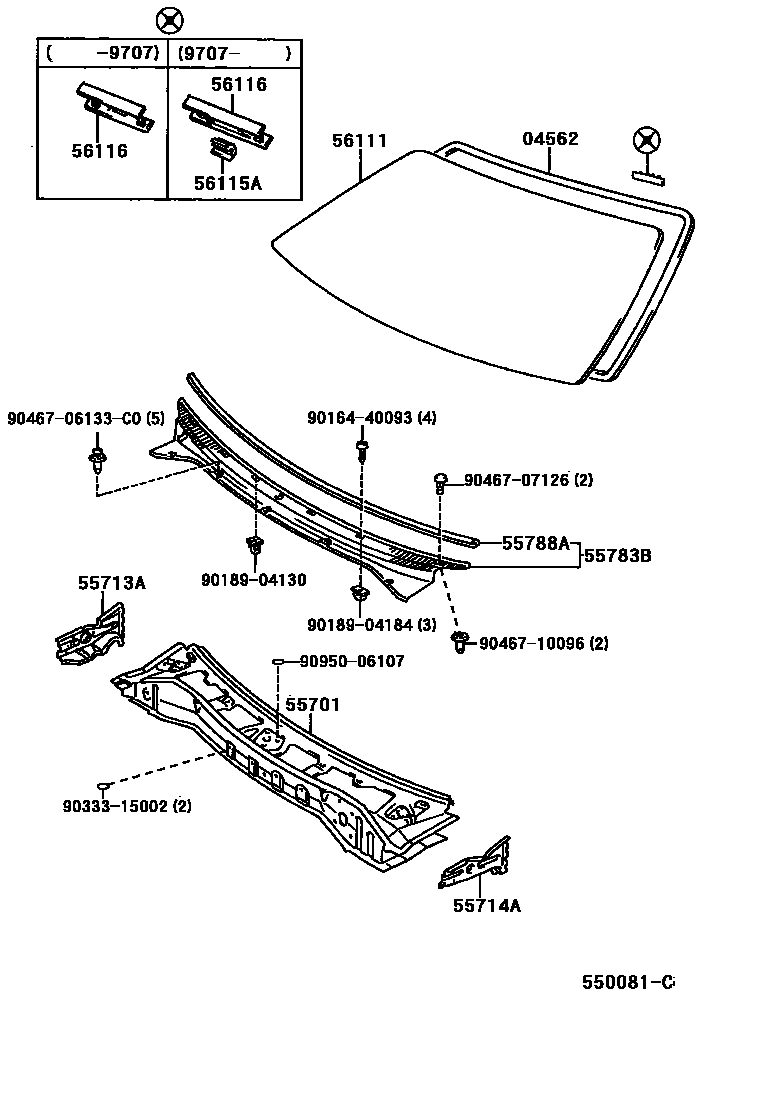

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEL54¥2,100199508

55701PANEL SUB-ASSY, COWL

main55700-16280iEL54¥32,900199508-199802

main55700-16350iEL54..CP¥32,900199712-199802

sub55700-16903¥32,800

55713APANEL, COWL TOP SIDE, RH

main55713-16060iEL54¥3,940199508

55714APANEL, COWL TOP SIDE, LH

main55714-16060iEL54¥3,940199508

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-16120iEL54..USA¥12,400199508

sub55708-10070¥12,400

main55708-16130iEL54..CND¥13,000199508

COLD SPEC

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-16091iEL54¥540199508

56111GLASS, WINDSHIELD

main56111-16420iEL54199508

*LAM,T=4.7,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12050iEL54¥330199707

56116SPACER, WINDSHIELD GLASS

main56116-16050iEL54¥280199508-199707

main56116-22050iEL54¥120199707

9016440093

main90164-40093¥70

9018904130

main90189-04130¥130

9018904184

main90189-04184¥130

9033315002

main90333-15002¥90

9046706133C0

main90467-06133C0

9046707126

main90467-07126¥140

9046710096

main90467-10096¥110

9095006107

main90950-06107¥100

17 parts on this diagram · 1 diagram in section
