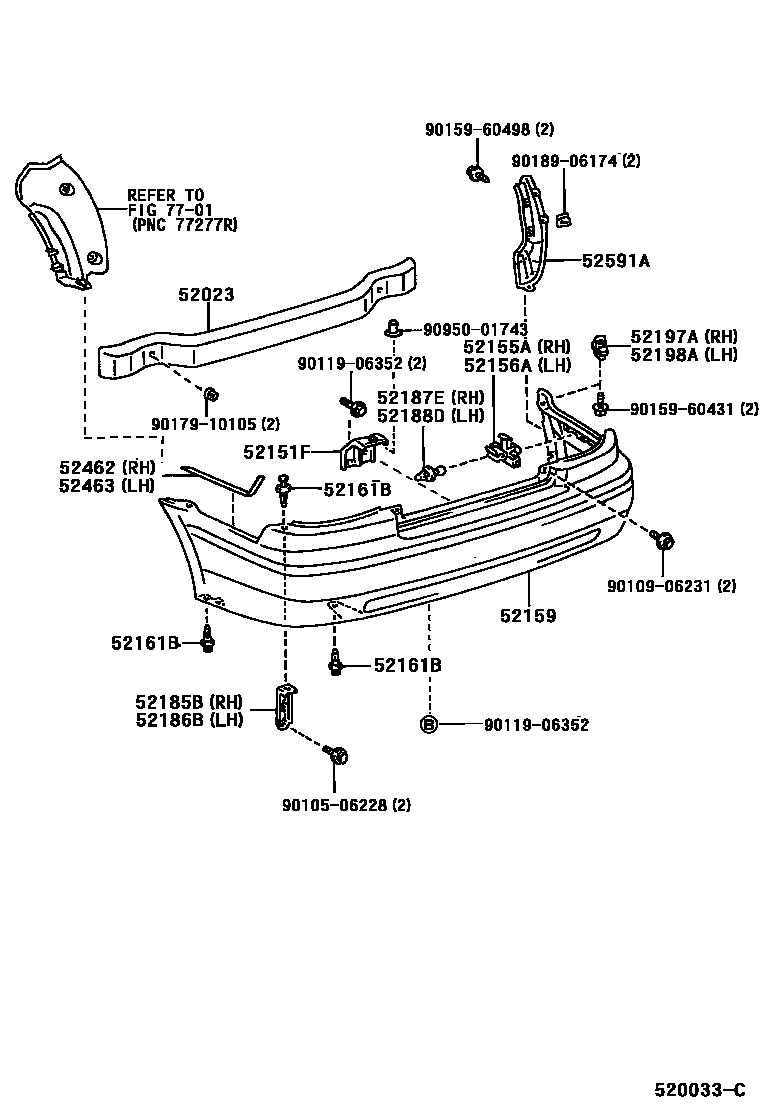

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52151FSTAY, REAR BUMPER
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
sub52159-16920
52161BPIECE, REAR BUMPER
sub52161-0K040
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52187EGUIDE, REAR BUMPER LOCATION, RH
52188DGUIDE, REAR BUMPER LOCATION, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52591ASEAL, REAR BUMPER
7701
9010506228
main90105-06228
9010906231
main90109-06231
9011906352
main90119-06352
9015960431
main90159-60431
9015960498
main90159-60498
9017910105
main90179-10105
9018906174
main90189-06174
9095001743
main90950-01743
24 parts on this diagram · 1 diagram in section
