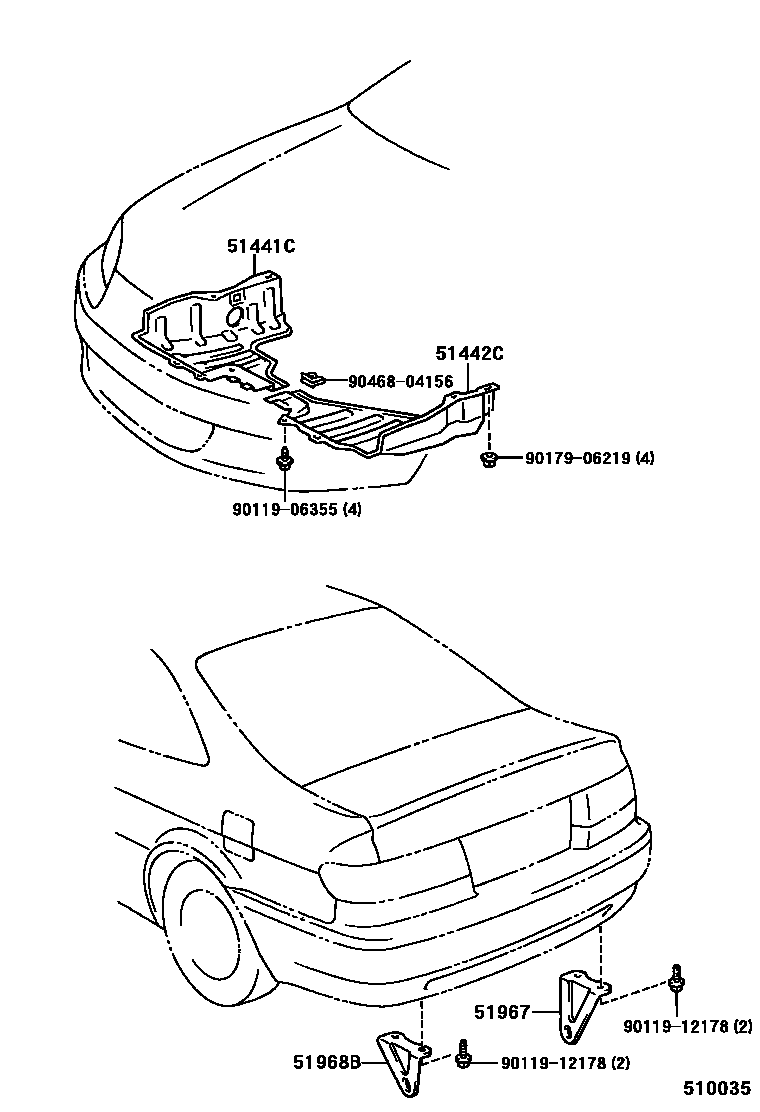

SUSPENSION CROSSMEMBER & UNDER COVER

51441CCOVER, ENGINE UNDER, RH

main51441-10131iEL54199508

main51441-16051iEL54199508

W(AIR CONDITIONER)

51442CCOVER, ENGINE UNDER, LH

main51442-10051iEL54..MTM199508

main51442-10061iEL54..ATM199508

51967HOOK, TRANSPORT, REAR

main51967-16170iEL54199508

51968BHOOK, TRANSPORT, REAR LH

main51968-16130iEL54199508

9011906355

main90119-06355

9011912178

main90119-12178

9017906219

main90179-06219

9046804156

main90468-04156

8 parts on this diagram · 1 diagram in section
