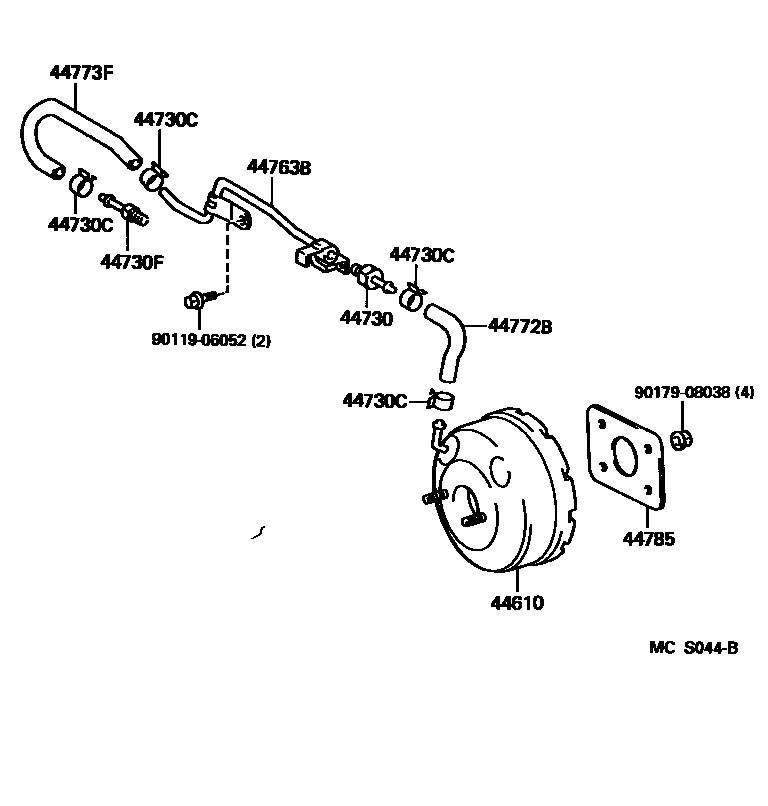

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-16580iEL54199508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44580-22030iEL54199508

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iEL54199508-199512

sub96134-51500

main90467-16002iEL54199512

NO.1

sub96134-51500

main90467-16024iEL54199512

NO.2

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90406-09006iEL54199508

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44763-16050iEL54199508

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-16150iEL54199508

44773FHOSE, UNION TO CHECK VALVE

main44773-16160iEL54199508

44785GASKET, BRAKE BOOSTER

main44785-16020iEL54199508

9011906052

main90119-06052

9017908038

main90179-08038

10 parts on this diagram · 1 diagram in section
