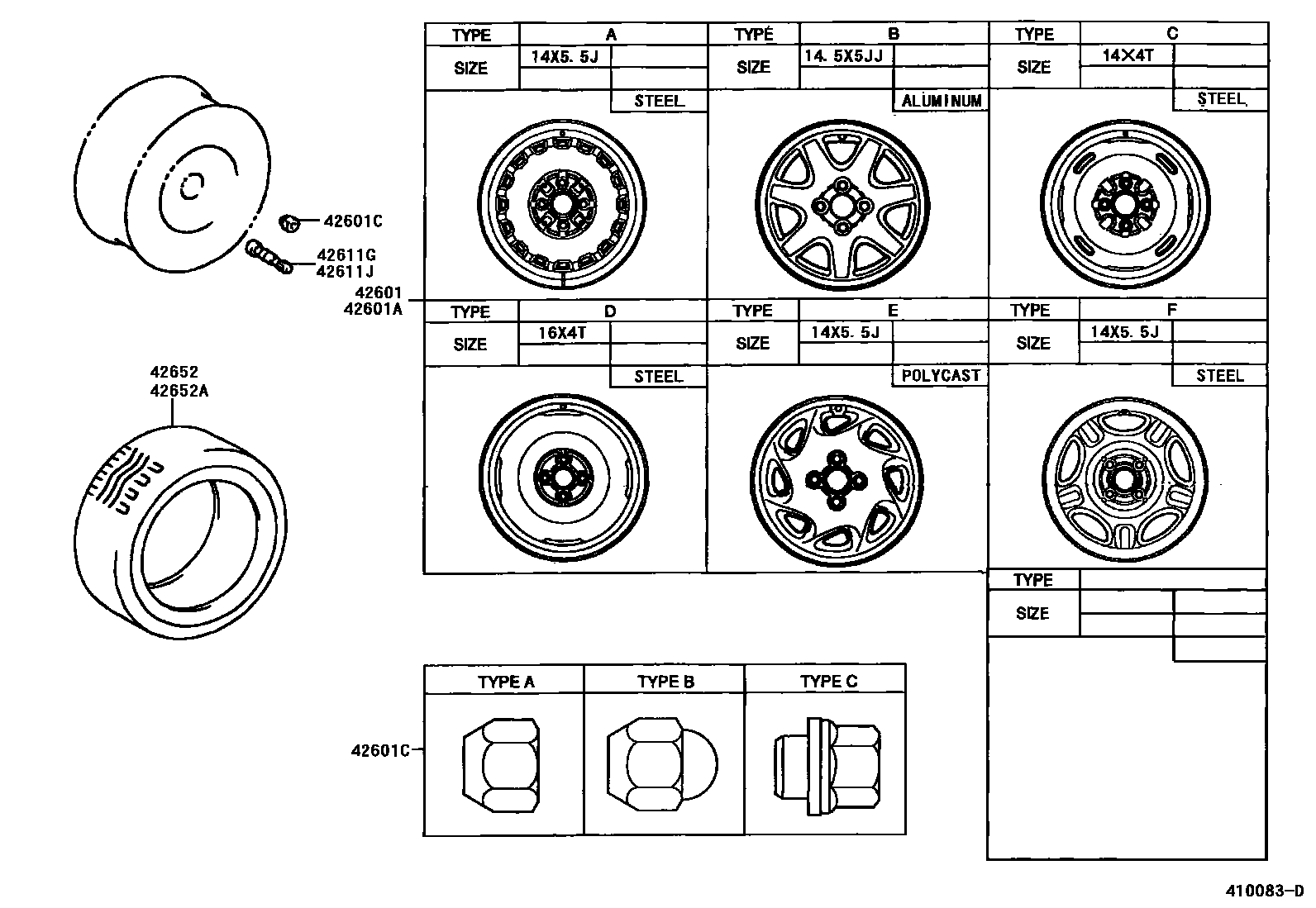

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-0W010×4iEL54199508

14X5.5J,TYPE E:REFER TO ILLUSTRATION

main42611-16500×4iEL54199508

14X5.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-18010-01×4iEL54199508

14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK

main42611-46010×4iEL54..CP199712-199802

14X5.5J,TYPE F:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-10320iEL54199508-199608

16X4T,TYPE D:REFER TO ILLUSTRATION

sub42611-10321

main42611-16220iEL54199508

14X4T,TYPE C:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iEL54199508

TYPE A:REFER TO ILLUSTRATION

main90942-01021×16iEL54199508

TYPE B:REFER TO ILLUSTRATION

main90942-01033×16iEL54199508

TYPE C:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iEL54199508

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iEL54199508

L=51

42652TIRE

main42652-16500×4iEL54199508

P185/60R14 82H

42652ATIRE (FOR SPARE)

main42652-12370iEL54199508

T115/70D14

sub42652-16220

main42652-16380iEL54199508-199608

T105/70D16

7 parts on this diagram · 3 diagrams in section
