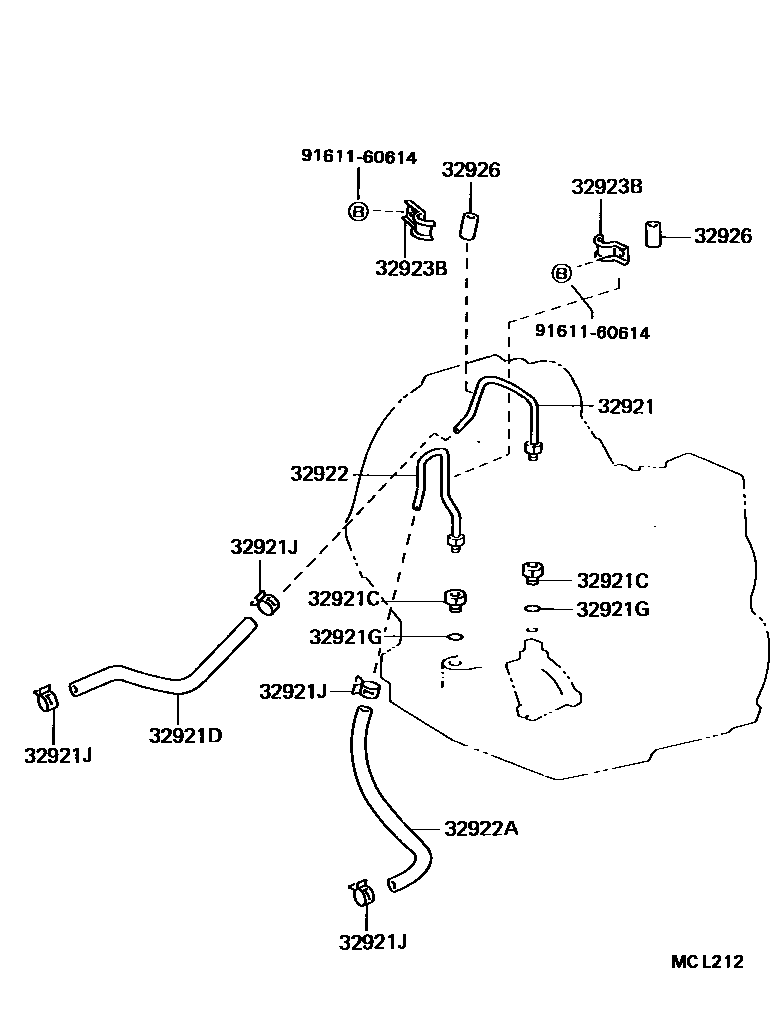

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-16110iEL54..CVT..ATM199508-199802

main32921-46010iEL54..CP..ATM199712-199802

32921CUNION(FOR OIL COOLER TUBE)

main32901-12030iEL54..CP..ATM199712-199802

OUTLET

main90404-14007iEL54..ATM199712-199802

INLET

main90404-14007iEL54..ATM199508-199712

32921DHOSE(FOR OIL COOLER INLET)

main90445-15048iEL54..ATM199508

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iEL54..ATM199508

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iEL54..ATM199508

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-16060iEL54..ATM199508-199802

main32922-16061iEL54..CP..ATM199712-199802

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15014iEL54..ATM199712-199802

main90445-15046iEL54..ATM199508-199802

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main90462-10082iEL54..ATM199508

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iEL54..ATM199508

L=30,ID=8

9161160614

main91611-60614

10 parts on this diagram · 1 diagram in section
