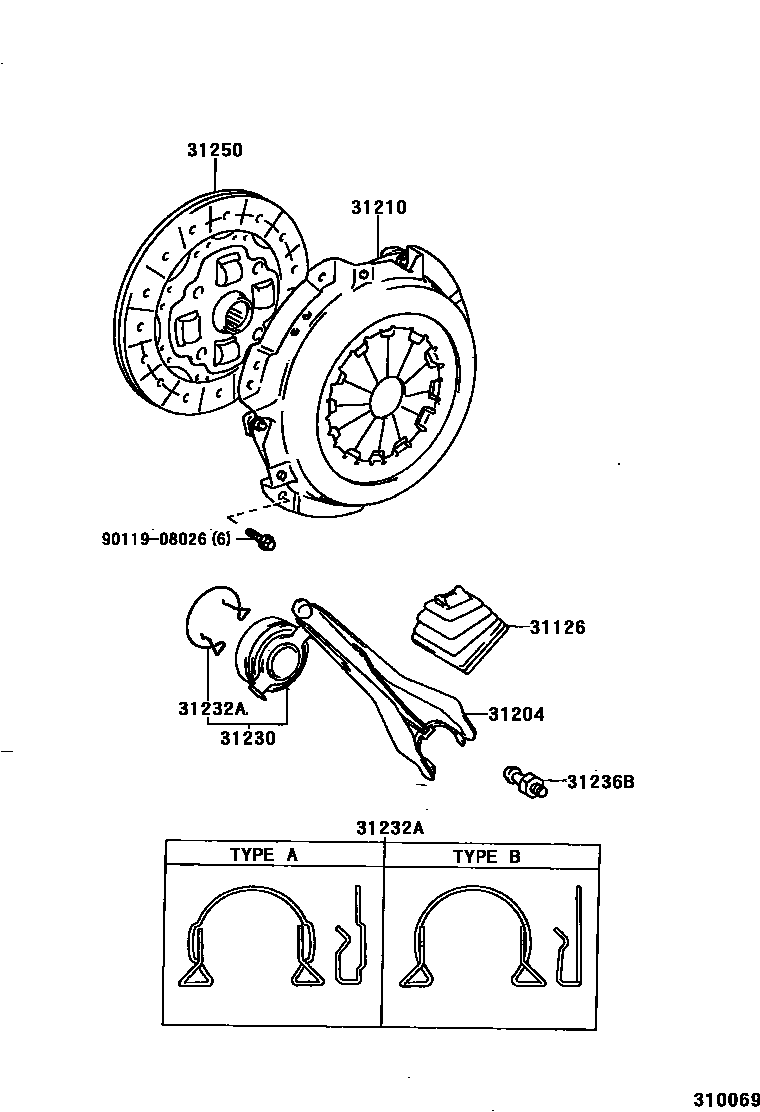

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iEL54..MTM199508

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEL54..MTM199508

31210COVER ASSY, CLUTCH

main31210-12210iEL54..MTM199508

sub31210-12280

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEL54..MTM199508

sub31230-16061

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEL54..MTM199508

TYPE B:REFER TO ILLUSTRATION

main31232-16031iEL54..MTM199508

TYPE A:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-12011iEL54..MTM199508

31250DISC ASSY, CLUTCH

main31250-12290iEL54..MTM199508-199509

sub31250-12400

main31250-12390iEL54..MTM199509-199804

sub31250-12391

main31250-12391iEL54..MTM199804

sub31250-12392

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
