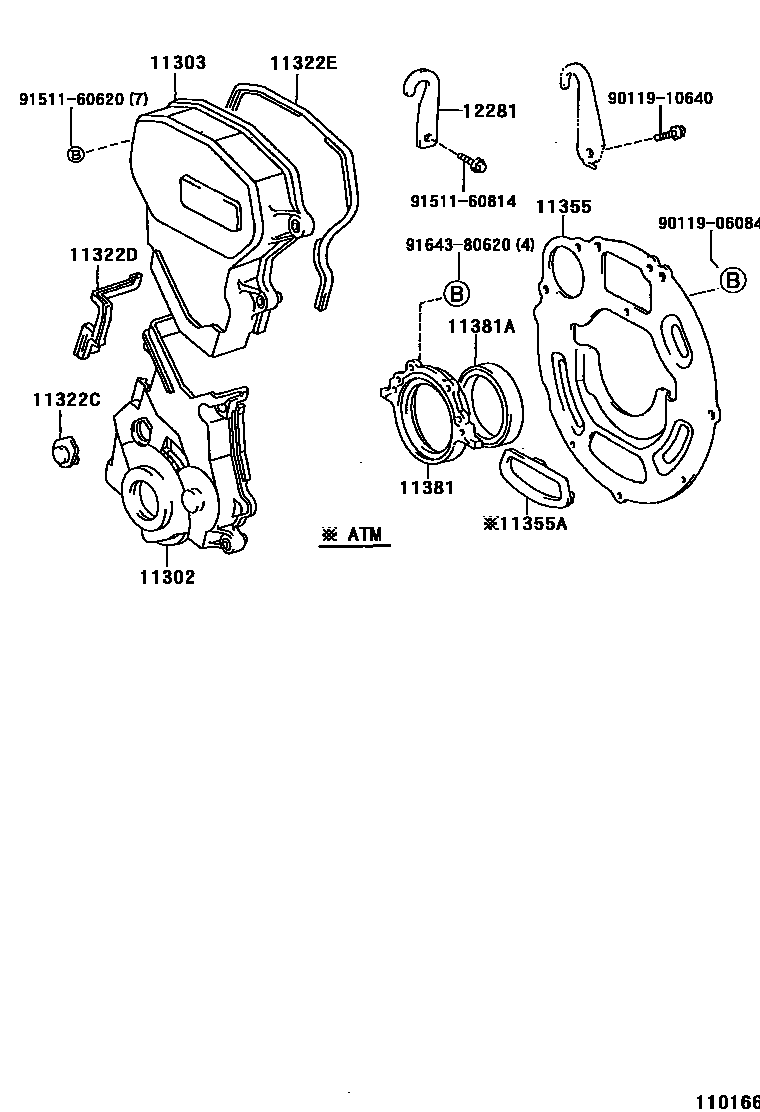

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11100i5EFE..EL54199508

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-11031i5EFE..EL54199508

11322CCOVER, TIMING BELT, NO.3

main11323-10011i5EFE..EL54199508

11322DGASKET, TIMING BELT COVER, NO.1

main11328-11061i5EFE..EL54199508

11322EGASKET, TIMING BELT COVER, NO.2

main11329-11010i5EFE..EL54199508

11355PLATE, REAR END

main11355-10011i5EFE..EL54..MTM199508-199611

sub11355-10012

main11355-10012i5EFE..EL54..MTM199611

main11355-11011i5EFE..EL54..ATM199508-199611

sub11355-11012

main11355-11012i5EFE..EL54..ATM199611

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i5EFE..EL54..ATM199508

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10021i5EFE..EL54199508

11381ASEAL, ENGINE REAR OIL

main90311-80012i5EFE..EL54199508

12281HANGER, ENGINE, NO.1

main12281-11031i5EFE..EL54199508

9011906084

main90119-06084

9011910640

main90119-10640

9151160620

main91511-60620

9151160814

main91511-60814

9164380620

main91643-80620

15 parts on this diagram · 1 diagram in section
