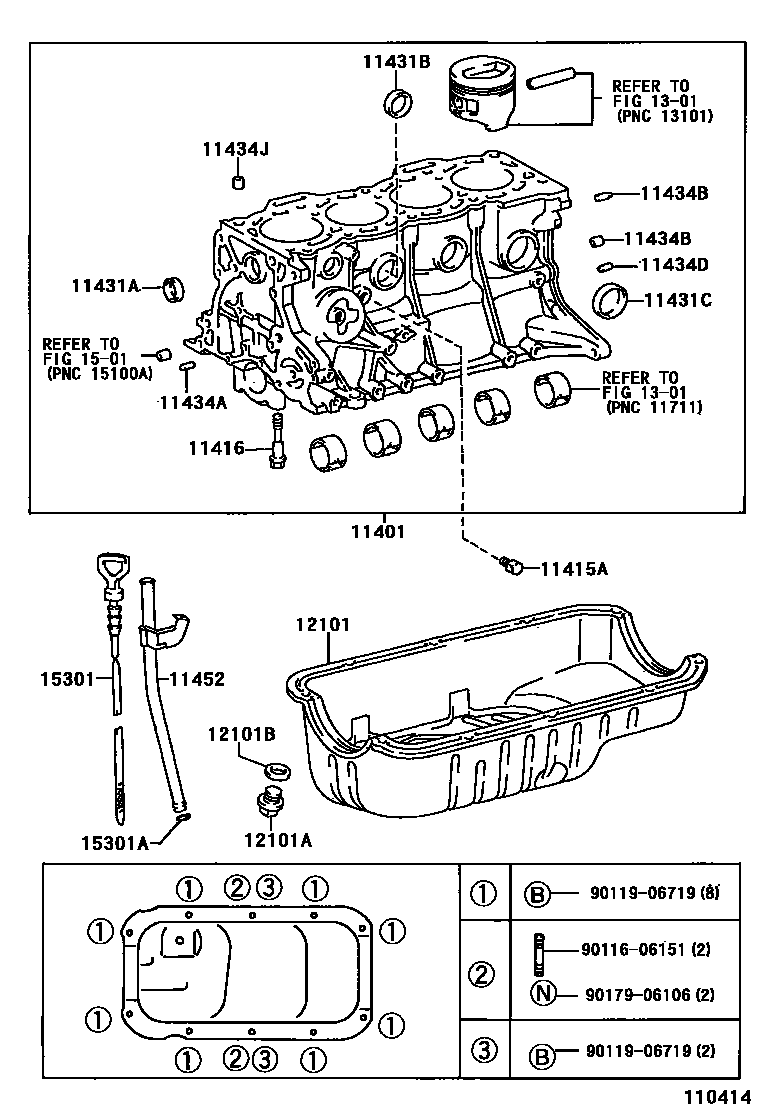

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-19886i5EFE..EL54199508

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i5EFE..EL54199508

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i5EFE..EL54199508

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500×2i5EFE..EL54199508

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×6i5EFE..EL54199508

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43500i5EFE..EL54199508

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06068×2i5EFE..EL54199508

L=11,OD=6

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i5EFE..EL54199508

L=20,OD=10

main90253-15003i5EFE..EL54199508

L=17,OD=15

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i5EFE..EL54199508

L=11,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-12001×2i5EFE..EL54199508

11452GUIDE, OIL LEVEL GAGE

main11452-11040i5EFE..EL54199508-199512

main11452-11041i5EFE..EL54199512

12101PAN SUB-ASSY, OIL

main12101-11060i5EFE..EL54199508

12101APLUG(FOR OIL PAN DRAIN)

main90341-12026i5EFE..EL54199508

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i5EFE..EL54199508

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-11050i5EFE..EL54199508

15301ARING, O(FOR OIL LEVEL GAGE)

main96721-19010i5EFE..EL54199508

9011606151

main90116-06151

9011906719

main90119-06719

9017906106

main90179-06106

21 parts on this diagram · 1 diagram in section
