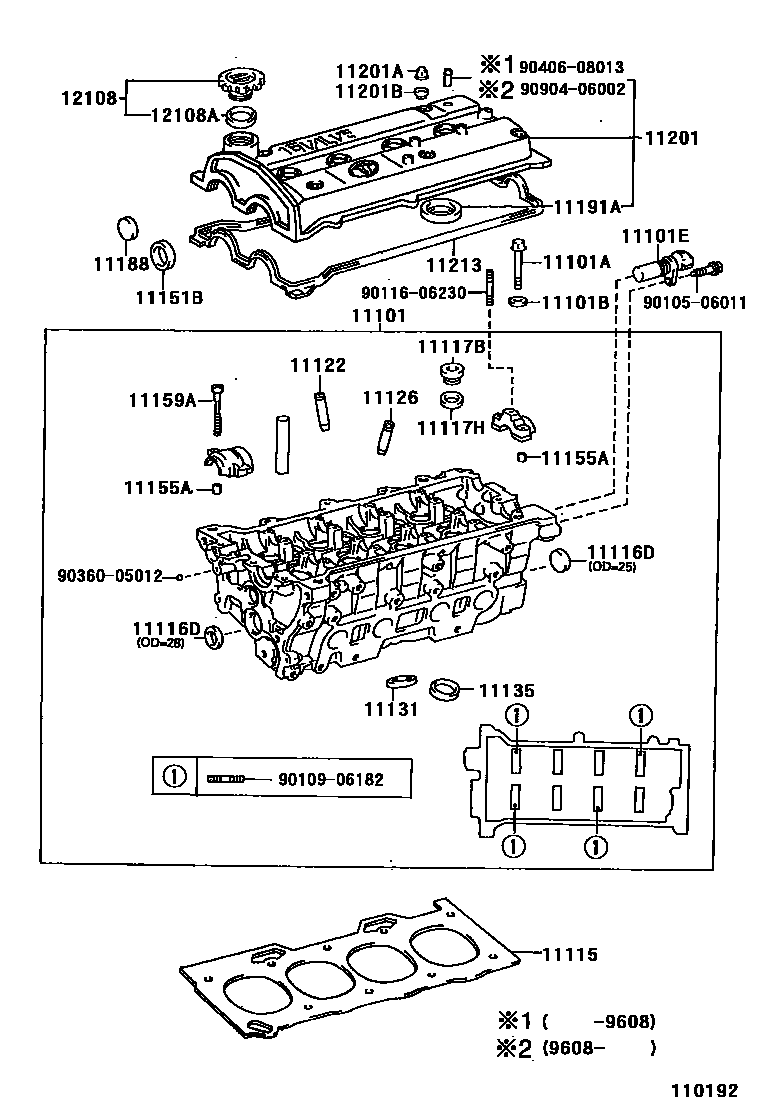

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
INTAKE SIDE
EXHAUST SIDE
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11115GASKET, CYLINDER HEAD
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11188PLUG, CAMSHAFT HOUSING
11191AGASKET(FOR SPARK PLUG TUBE)
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
9010506011
main90105-06011
9010906182
main90109-06182
9011606230
main90116-06230
9036005012
main90360-05012
9040608013
main90406-08013
9090406002
main90904-06002
29 parts on this diagram · 1 diagram in section
