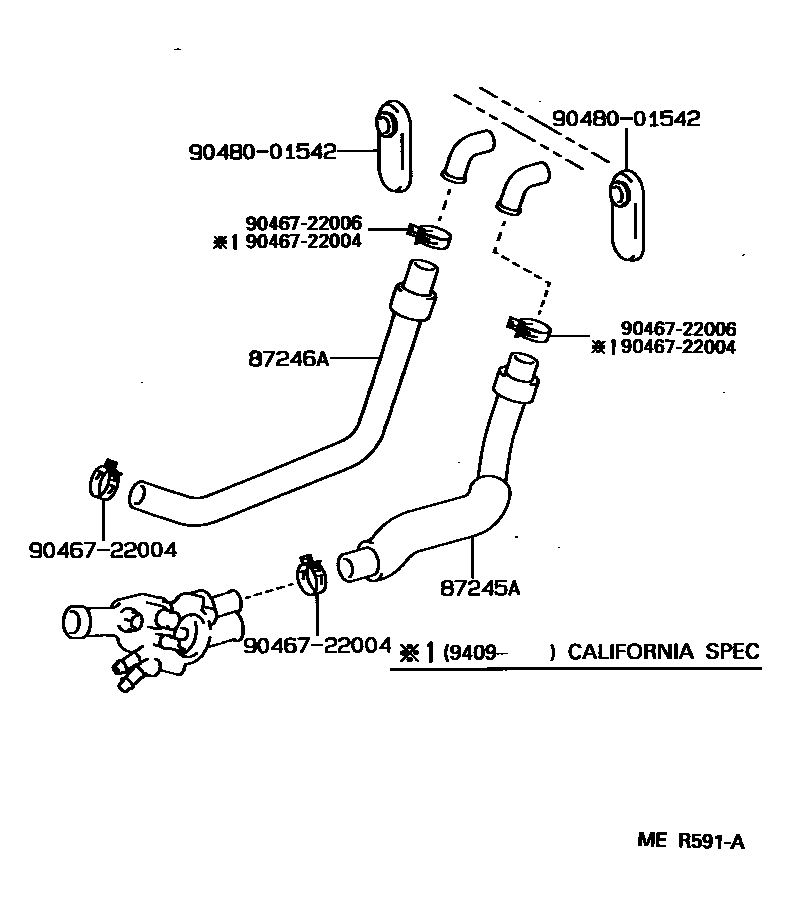

HEATING & AIR CONDITIONING - WATER PIPING

87245AHOSE, HEATER WATER, INLET A

main87245-16340iEL44¥1,330199104-199508

main87245-16400iEL44..USA¥2,650199409-199508

CALIFORNIA SPEC

87246AHOSE, HEATER WATER, OUTLET A

main87245-16280iEL44¥2,030199104-199508

main87245-16410iEL44..USA¥1,410199409-199508

CALIFORNIA SPEC

sub87245-16411¥1,980

9046722004

main90467-22004¥330

9046722006

main90467-22006¥250

9048001542

main90480-01542¥300

5 parts on this diagram · 1 diagram in section
