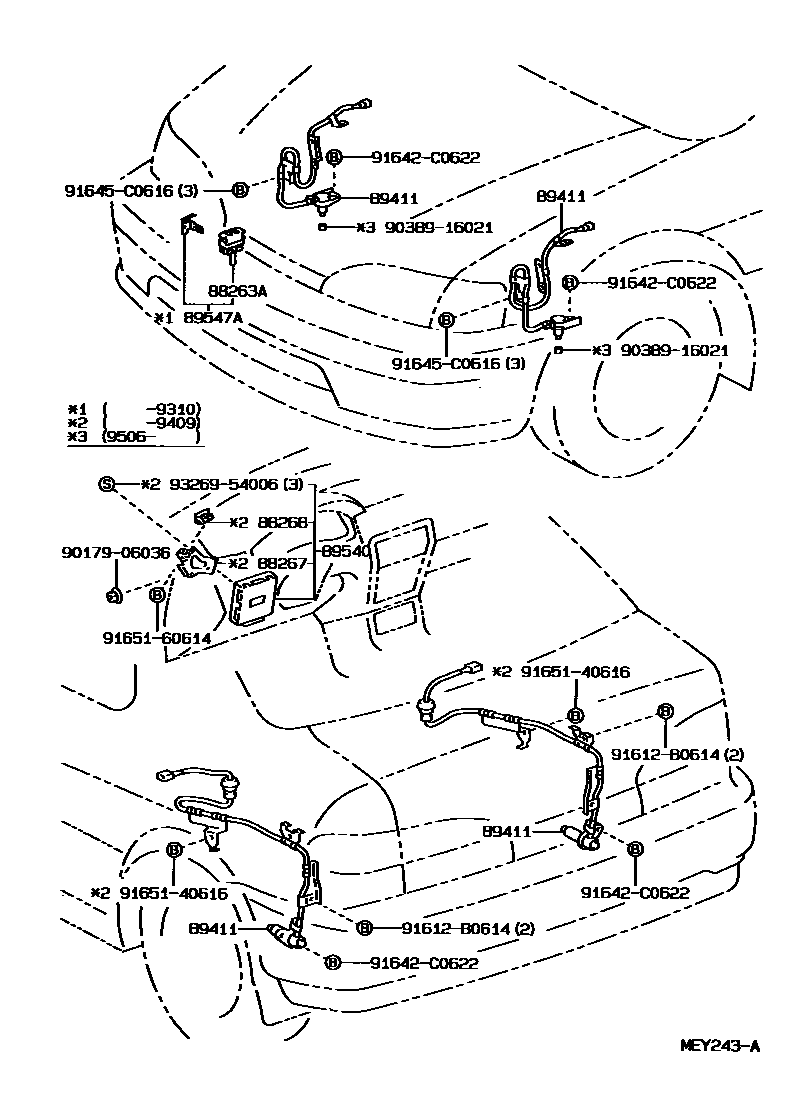

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-12090iEL44¥6,600199208-199310

main88263-16010iEL44¥6,600199310-199508

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-16030iEL44¥1,750199208-199409

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-16030iEL44¥390199208-199409

89411SENSOR, SPEED

main89542-16010iEL44¥21,500199208-199508

FR AXLE,RH

main89543-16010iEL44¥21,500199208-199508

FR AXLE,LH

main89545-16010iEL44¥21,700199208-199508

REAR AXLE,RH

main89546-16010iEL44¥21,700199208-199508

REAR AXLE,LH

89540COMPUTER ASSY, SKID CONTROL

main89540-16040iEL44¥94,500199208-199409

sub89540-16090¥94,500

main89540-16090iEL44¥94,500199409-199508

89547ARELAY, SKID CONTROL W/BRACKET

main89547-10010iEL44¥6,700199208-199310

9017906036

main90179-06036¥120

9038916021

main90389-16021¥140

91612B0614

main91612-B0614¥110

91642C0622

main91642-C0622¥100

91645C0616

main91645-C0616¥130

9165140616

main91651-40616¥60

9165160614

main91651-60614¥70

9326954006

main93269-54006¥80

14 parts on this diagram · 1 diagram in section
