SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1

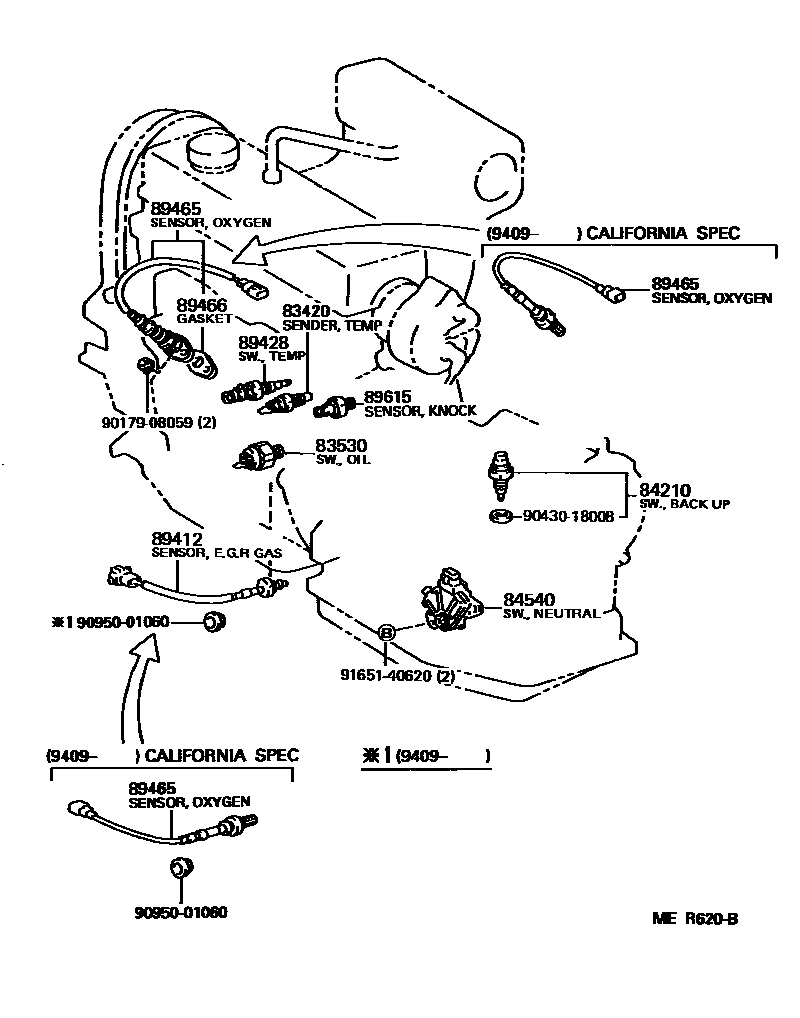

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL44199104-199508

main83420-16050iEL44..USA199409-199411

CALIFORNIA SPEC

sub83420-20040

main83420-20040iEL44..USA199411-199508

CALIFORNIA SPEC

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iEL44199208-199411

sub83530-30090

main83530-30080iEL44199104-199208

sub83530-60040

main83530-30090iEL44199411-199508

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL44..MTM199104-199508

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16040iEL44..ATM199104-199409

main84540-16050iEL44..ATM199409-199508

89412SENSOR, E.G.R GAS TEMPERATURE

main89412-16020iEL44..USA199104-199409

CALIFORNIA SPEC

sub89412-16010

main89412-16020iEL44..ATM199308-199508

sub89412-16010

main89412-16060iEL44..USA199409-199508

CALIFORNIA SPEC

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEL44199208-199508

main89428-20060iEL44199104-199208

89465SENSOR, OXYGEN

main89465-16050iEL44..USA199409-199508

CALIFORNIA SPEC,EXHAUST MANIFOLD

main89465-16060iEL44..USA199409-199508

CALIFORNIA SPEC,MUFFLER

main89465-19405iEL44199104-199508

sub89465-19485

89466GASKET, OXYGEN SENSOR

main89466-20020iEL44199104-199508

89615SENSOR, KNOCK CONTROL

main89615-22030iEL44..USA199409-199508

CALIFORIA SPEC,MATSUSHITA

main89615-22040iEL44..USA199409-199508

CALIFORIA SPEC,NIPPON DENSO

9017908059

main90179-08059

9043018008

main90430-18008

9095001060

main90950-01060

9165140620

main91651-40620

13 parts on this diagram · 10 diagrams in section
