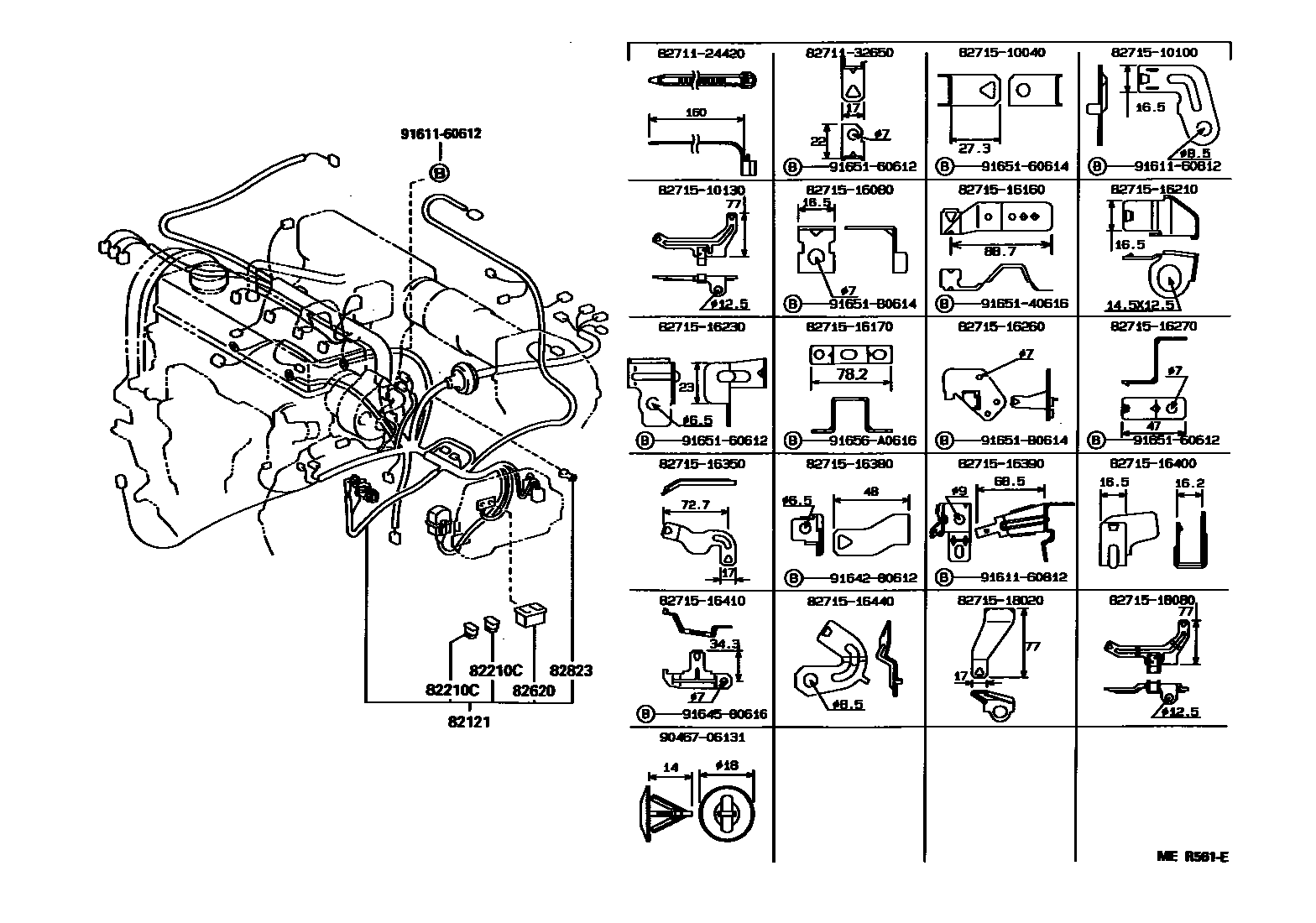

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

82121WIRE, ENGINE

main82121-16830iEL44..MTM199208-199409

main82121-16831iEL44..MTM199409-199508

main82121-16840iEL44..ATM199208-199308

main82121-16850iEL44..MTM..USA199208-199409

CALIFORNIA SPEC

main82121-16860iEL44..ATM..USA199208-199308

CALIFORNIA SPEC

main82121-16860iEL44..ATM199308-199409

main82121-16861iEL44..ATM199409-199508

main82121-16890iEL44..MTM199104-199208

main82121-1G011iEL44..ATM199104-199208

main82121-1G020iEL44..MTM..USA199104-199208

CALIFORNIA SPEC

main82121-1G031iEL44..ATM..USA199104-199208

CALIFORNIA SPEC

main82121-1G320iEL44..MTM..USA199409-199508

CALIFORNIA SPEC

main82121-1G330iEL44..ATM..USA199409-199508

CALIFORNIA SPEC

82210CFUSIBLE LINK

main90982-08188iEL44..CND199208-199409

30A,TERM.:FEMALE,PNK

main90982-08190iEL44199208-199508

60A,TERM.:FEMALE,YEL

main90982-08227iEL44199409-199508

50A,TERM.:FEMALE,RED

main90982-08228iEL44199104-199508

50A,TERM.:MALE,RED

main90982-08246iEL44199104-199508

100A,TERM.:MALE,BLUE

82620BLOCK ASSY, FUSIBLE LINK

main82620-30030iEL44199104-199508

82823CAP, TERMINAL, NO.1

main82823-22060iEL44199208-199508

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

8271132650WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32650

8271510040BRACKET,WIRING HARNESS CLAMP

main82715-10040

8271510100BRACKET,WIRING HARNESS CLAMP

main82715-10100

8271510130BRACKET,WIRING HARNESS CLAMP

main82715-10130

8271516080BRACKET,WIRING HARNESS CLAMP

main82715-16080

8271516160BRACKET,WIRING HARNESS CLAMP

main82715-16160

8271516170BRACKET,WIRING HARNESS CLAMP

main82715-16170

8271516210BRACKET,WIRING HARNESS CLAMP

main82715-16210

8271516230BRACKET,WIRING HARNESS CLAMP

main82715-16230

8271516260BRACKET,WIRING HARNESS CLAMP

main82715-16260

8271516270BRACKET,WIRING HARNESS CLAMP

main82715-16270

8271516350BRACKET,WIRING HARNESS CLAMP

main82715-16350

8271516380BRACKET,WIRING HARNESS CLAMP

main82715-16380

8271516390BRACKET,WIRING HARNESS CLAMP

main82715-16390

8271516400BRACKET,WIRING HARNESS CLAMP

main82715-16400

8271516410BRACKET,WIRING HARNESS CLAMP

main82715-16410

8271516440BRACKET,WIRING HARNESS CLAMP

main82715-16440

8271518020BRACKET,WIRING HARNESS CLAMP

main82715-18020

8271518080BRACKET,WIRING HARNESS CLAMP

main82715-18080

9046706131

main90467-06131

9161160612

main91611-60612

9161160812

main91611-60812

9164280612

main91642-80612

9164580616

main91645-80616

9165140616

main91651-40616

9165160612

main91651-60612

9165160614

main91651-60614

91651B0614

main91651-B0614

91656A0616

main91656-A0616

34 parts on this diagram · 6 diagrams in section
