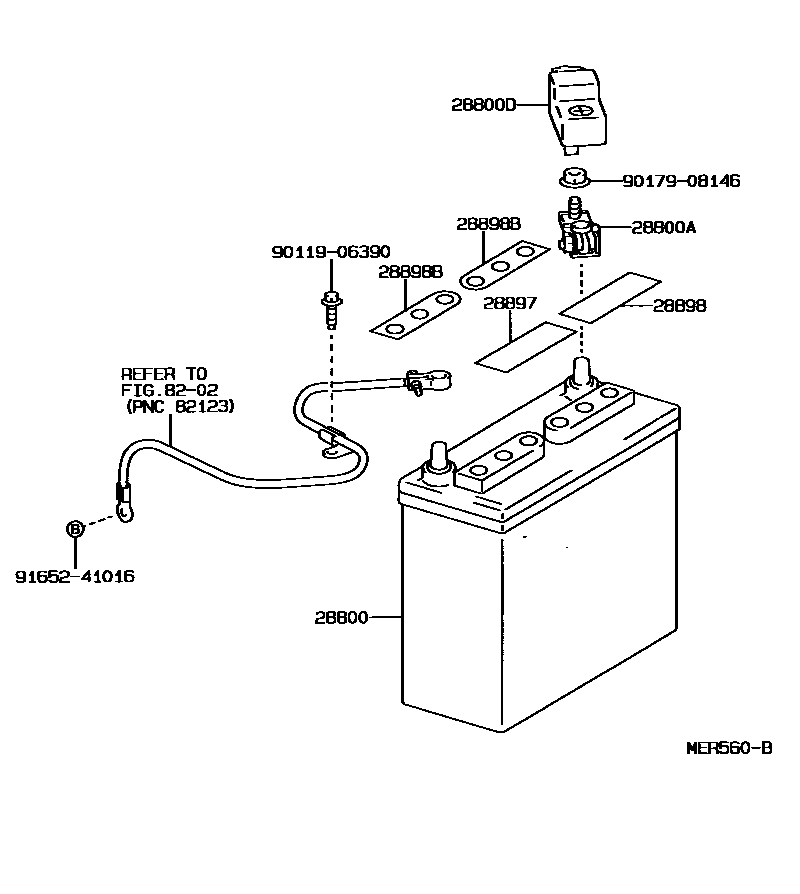

BATTERY & BATTERY CABLE

28800BATTERY

main28800-11290i5EFE..EL44..CND199409-199508

55D23R

main28800-11300i5EFE..EL44..USA199409-199508

50D20R

main28800-14030i5EFE..EL44..USA199104-199409

50D20R

sub28800-12060

main28800-15010i5EFE..EL44..USA199104-199409

55D23R

sub28800-14010

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i5EFE..EL44199104-199508

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i5EFE..EL44199409-199508

main82821-16050i5EFE..EL44199208-199508

28897PLATE, BATTERY CAUTION

main28897-38010i5EFE..EL44..CND199104-199508

28898PLATE, BATTERY

main28898-26010i5EFE..EL44..USA199104-199508

28898BPLATE, BATTERY

main28898-11010i5EFE..EL44199208-199508

main28898-11020i5EFE..EL44199208-199508

55D23R MF

8202

9011906390

main90119-06390

9017908146

main90179-08146

9165241016

main91652-41016

10 parts on this diagram · 1 diagram in section
