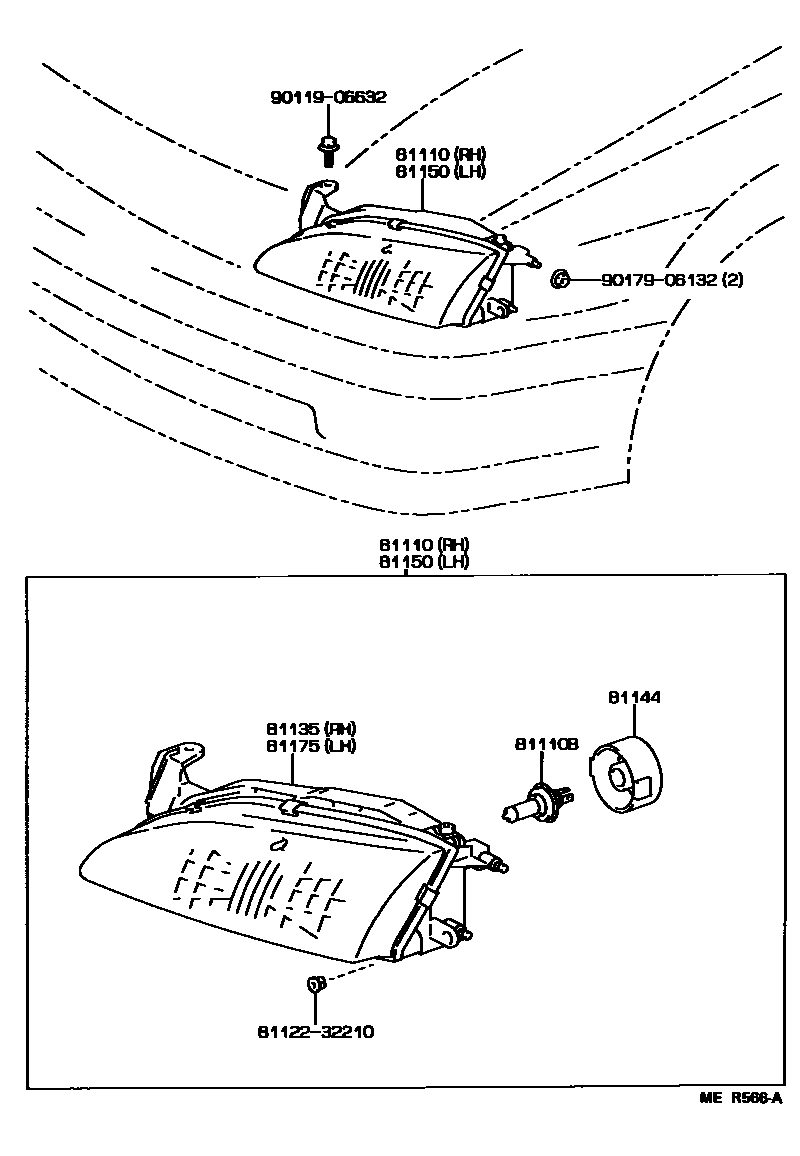

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-16530iEL44199104-199312

sub81110-16531

main81110-16531iEL44199312-199508

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13055iEL44199104-199508

12V 60/55W,HALOGEN

sub90981-13058

81135UNIT ASSY, HEADLAMP, RH

main81130-16530iEL44199104-199312

sub81130-16531

main81130-16531iEL44199312-199508

81144COVER, HEADLAMP, NO.1

main81139-16530iEL44199104-199508

81150HEADLAMP ASSY, LH

main81150-16530iEL44199104-199312

sub81150-16531

main81150-16531iEL44199312-199508

81175UNIT ASSY, HEADLAMP, LH

main81170-16530iEL44199104-199312

sub81170-16531

main81170-16531iEL44199312-199508

8112232210HOLDER, HEADLAMP

main81122-32210

9011906632

main90119-06632

9017906132

main90179-06132

9 parts on this diagram · 1 diagram in section
