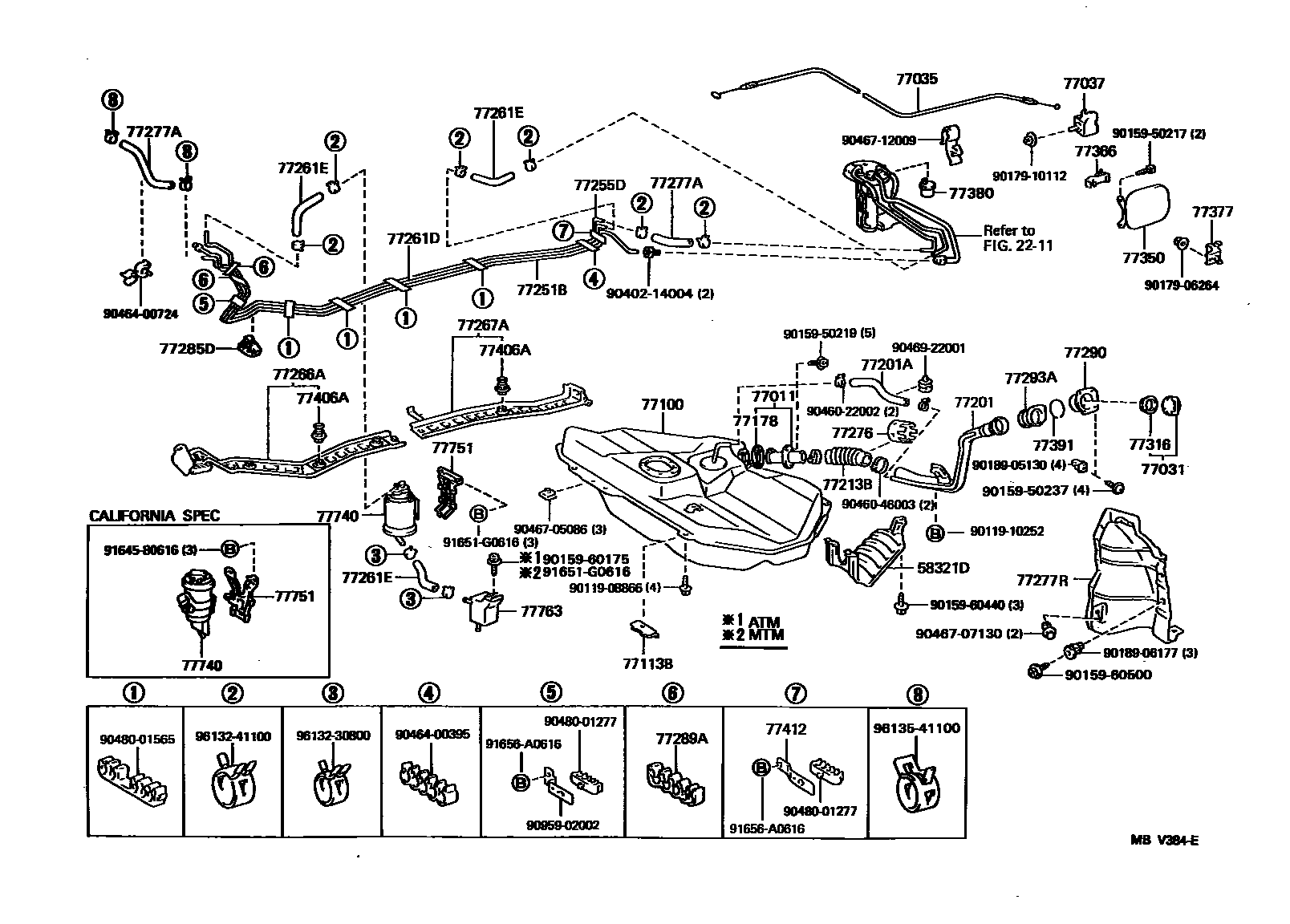

FUEL TANK & TUBE
2211
58321DINSULATOR, REAR FLOOR HEAT, NO.1
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77031CAP ASSY, FUEL TANK
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77113BPLATE, FUEL TANK SIDE
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=280
77213BHOSE, FUEL TANK TO FILLER PIPE
77251BTUBE, FUEL MAIN
CALIFORNIA SPEC
77255DTUBE, FUEL RETURN
77261DTUBE, FUEL TANK TO CANISTER
CALIFORNIA SPEC
77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
L=170
L=140
L=210
L=100,CALIFORNIA SPEC
L=300
77266APROTECTOR, FUEL TUBE, NO.1
77267APROTECTOR, FUEL TUBE, NO.2
77276PROTECTOR, FUEL HOSE
77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
*H,L=360
*H,L=360,CALIFORNIA SPEC
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77289ACLAMP, FUEL TUBE W/GROMMET, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77406ACLIP(FOR FUEL TUBE PROTECTOR)
77412SUPPORT, FUEL TUBE GROMMET, NO.2
77740CANISTER ASSY, CHARCOAL
CALIFORNIA SPEC
77751BRACKET, CHARCOAL CANISTER BASE
CALIFORNIA SPEC
77763CASE, CHARCOAL CANISTER DRAIN
9011908866
9011910252
9015950217
9015950219
9015950237
9015960175
9015960440
9015960500
9017906264
9017910112
9018905130
9018906177
9040214004
9046022002
9046046003
9046400395
9046400724
9046705086
9046707130
9046712009
9046922001
9048001277
9048001565
9095902002
9164580616
91651G0616
91656A0616
9613230800
9613241100
9613541100
66 parts on this diagram · 1 diagram in section
