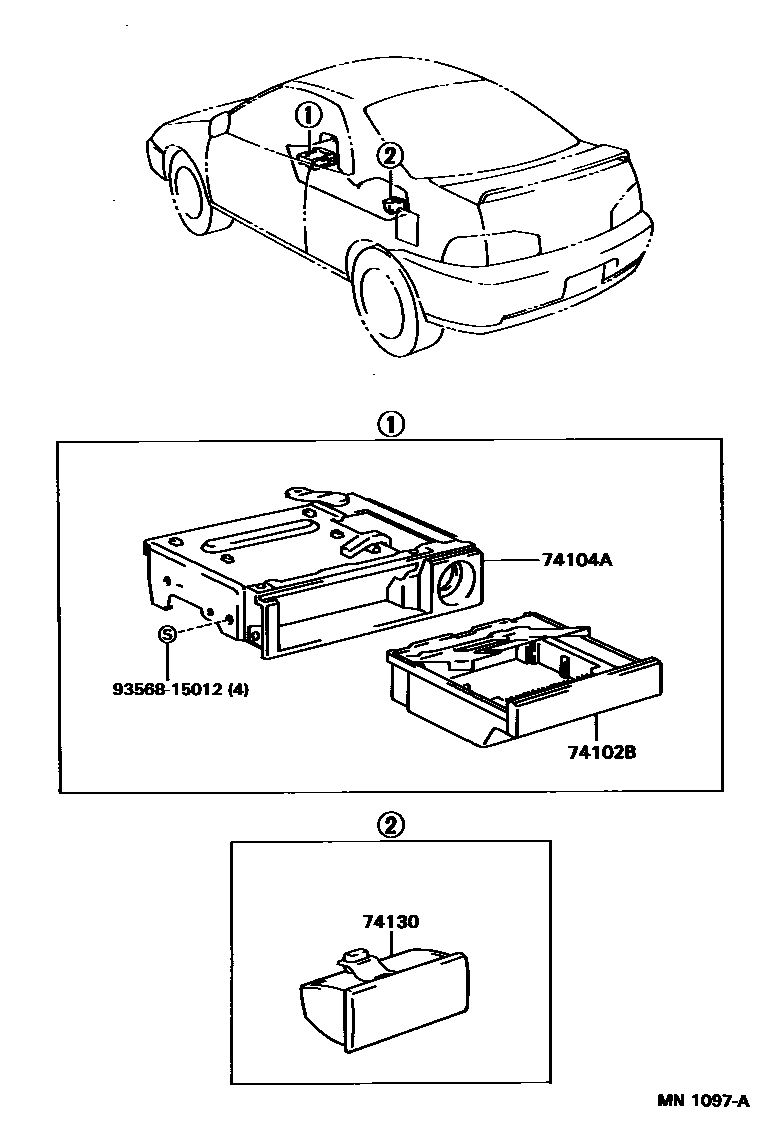

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-16040iEL44199104-199508

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-16060iEL44199104-199508

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-01iEL44..CND199104-199208

BLACK,TRIM2#

sub74109-20080

main74109-20080-22iEL44..CND199208-199508

BLACK,TRIM2#

sub74109-20080

main74109-20080-24iEL44..CND199104-199208

GRAYISH BLUE,TRIM8#

sub74109-20080

main74109-20080-W4iEL44..CND199208-199409

EISEN BLUE,TRIM8#

sub74109-20080

9356815012

main93568-15012

4 parts on this diagram · 1 diagram in section
