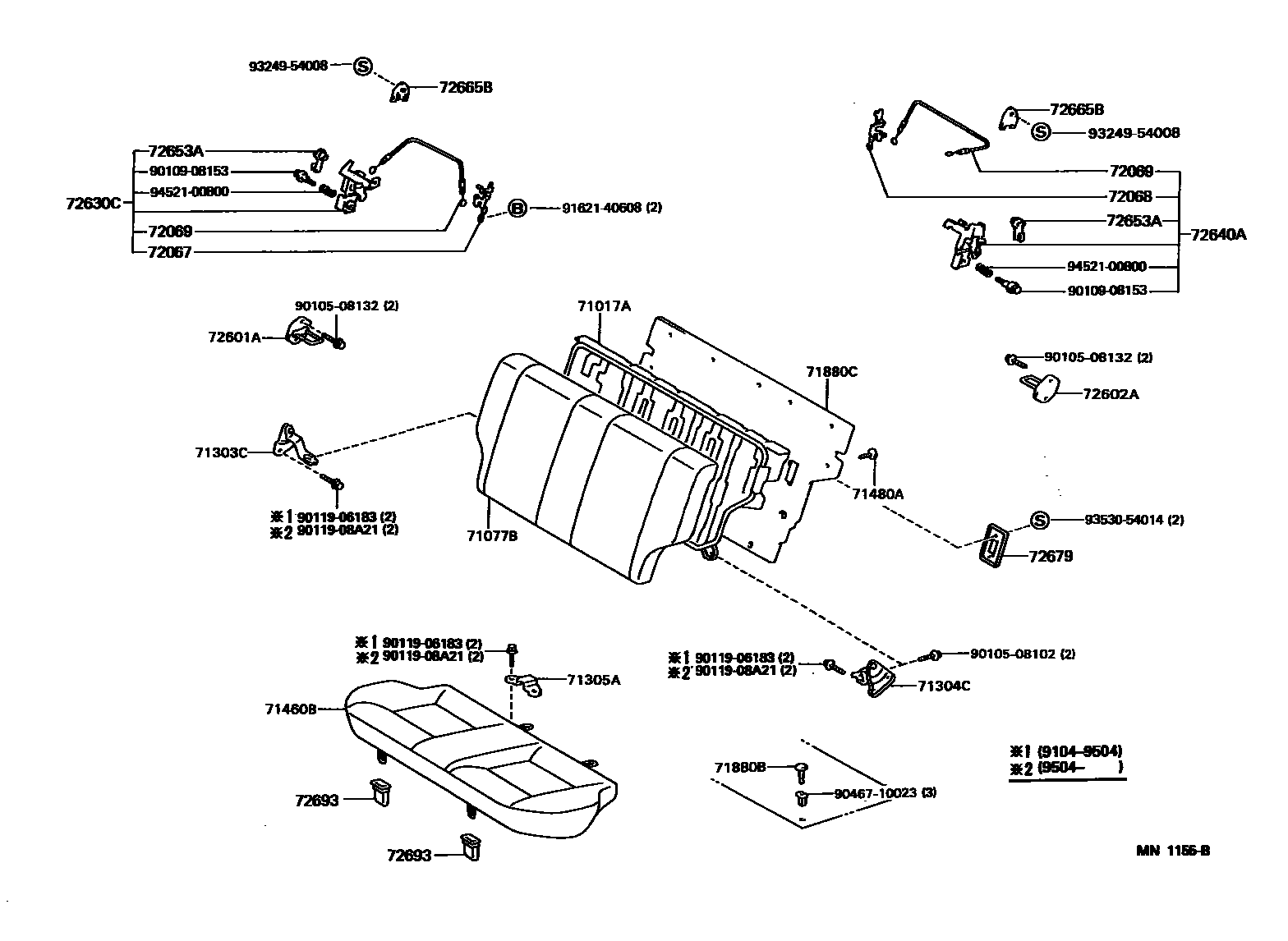

REAR SEAT & SEAT TRACK

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-16170iEL44¥20,800199104-199308

main71017-16180iEL44¥20,200199308-199508

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71603-16020-03iEL44199104-199208

GRAY,TRIM2#

main71603-16020-04iEL44199104-199208

GRAYISH BLUE,TRIM8#

main71603-16030-C0iEL44199308-199409

GRAY,TRIM2#

sub71603-16030¥58,500

main71603-16030-C1iEL44199409-199508

GRAY,TRIM2#

sub71603-16030¥58,500

main71603-16030-J0iEL44199308-199409

EISEN BLUE,TRIM8#

sub71603-16030¥58,500

main71603-16040-C1iEL44199208-199308

GRAY,TRIM2#

main71603-16040-J0iEL44199208-199308

EISEN BLUE,TRIM8#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-16050iEL44¥1,360199104-199504

main71303-16070iEL44¥920199504-199508

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-16010iEL44¥1,360199104-199504

main71304-16050iEL44¥920199504-199508

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71343-16070iEL44¥370199104-199504

main71343-16090iEL44¥350199504-199508

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-16710-03iEL44199104-199208

GRAY,TRIM2#

main71560-16710-J0iEL44199104-199208

GRAYISH BLUE,TRIM8#

main71560-16770-C0iEL44199208-199409

GRAY,TRIM2#

sub71560-16770¥63,500

main71560-16770-C1iEL44199409-199508

GRAY,TRIM2#

sub71560-16770¥63,500

main71560-16770-J0iEL44199208-199409

EISEN BLUE,TRIM8#

sub71560-16770¥63,500

71480ACLIP (FOR REAR SEATBACK)

main90467-07049-01iEL44199104-199208

BLACK,TRIM2#

sub90467-07049¥90

main90467-07049-24iEL44199104-199208

GRAYISH BLUE,TRIM8#

sub90467-07049¥90

main90467-07049-C0iEL44199409-199508

BLACK,TRIM2#

sub90467-07049¥90

main90467-07049-C0iEL44199208-199409

BLACK,TRIM2#,8#

sub90467-07049¥90

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-07026-22iEL44199208-199409

BLACK,TRIM2#,8#

sub90467-07026¥140

main90467-07026-22iEL44199409-199508

BLACK,TRIM2#

sub90467-07026¥140

main90467-07026-33iEL44199104-199208

GRAY,TRIM2#,8#

sub90467-07026¥140

71880CCARPET ASSY, REAR SEATBACK BOARD

main71885-16050-01iEL44199104-199208

BLACK,TRIM2#,8#

sub71885-16050¥4,730

main71885-16050-C0iEL44199208-199409

BLACK,TRIM2#,8#

sub71885-16050¥4,730

main71885-16050-C0iEL44199409-199508

BLACK,TRIM2#

sub71885-16050¥4,730

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-16020iEL44¥990199104-199402

main72067-16021iEL44¥940199402-199508

72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

main72068-16020iEL44¥990199104-199402

main72068-16021iEL44¥940199402-199508

sub72068-20080¥1,000

72069CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL

main72069-16030iEL44¥1,350199104-199508

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-16070iEL44¥1,190199104-199508

sub72601-16100¥1,240

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72601-16070iEL44¥1,190199104-199508

sub72601-16100¥1,240

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-16130-01iEL44199104-199208

BLACK,TRIM2#

sub72630-16130¥3,090

main72630-16130-04iEL44199104-199208

GRAYISH BLUE,TRIM8#

sub72630-16130¥3,090

main72630-16130-C0iEL44199208-199402

BLACK,TRIM2#

sub72630-16130¥3,090

main72630-16130-J0iEL44199208-199402

EISEN BLUE,TRIM8#

sub72630-16130¥3,090

main72630-16131-C0iEL44199402-199508

BLACK,TRIM2#

sub72630-16131¥3,090

main72630-16131-J0iEL44199402-199409

EISEN BLUE,TRIM8#

sub72630-16131¥3,090

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-16140-01iEL44199104-199208

BLACK,TRIM2#

sub72640-16140¥3,090

main72640-16140-04iEL44199104-199208

GRAYISH BLUE,TRIM8#

sub72640-16140¥3,090

main72640-16140-C0iEL44199208-199402

BLACK,TRIM2#

sub72640-16140¥3,090

main72640-16140-J0iEL44199208-199402

EISEN BLUE,TRIM8#

sub72640-16140¥3,090

main72640-16141-C0iEL44199402-199508

BLACK,TRIM2#

sub72640-16141¥3,090

main72640-16141-J0iEL44199402-199409

EISEN BLUE,TRIM8#

sub72640-16141¥3,090

72653ASNAP, REAR SEATBACK LOCK ROD

main69759-24010iEL44¥180199104-199508

RH

main69759-24020iEL44¥180199104-199508

LH

72665BCOVER, REAR SEATBACK LOCK

main72665-16040-01iEL44199104-199208

BLACK,TRIM2#

sub72665-16040¥520

main72665-16040-04iEL44199104-199208

GRAYISH BLUE,TRIM8#

sub72665-16040¥520

main72665-16040-22iEL44199409-199508

BLACK,TRIM2#

sub72665-16040¥520

main72665-16040-22iEL44199208-199409

BLACK,TRIM2#,8#

sub72665-16040¥520

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-16010-01iEL44199104-199208

BLACK,TRIM2#,8#

sub72679-16010¥1,090

sub72679-20020¥1,090

main72679-16010-34iEL44199208-199307

GRAYISH BLUE,TRIM8#

sub72679-16010¥1,090

sub72679-20020¥1,090

main72679-16010-C0iEL44199208-199307

BLACK,TRIM2#

sub72679-16010¥1,090

sub72679-20020¥1,090

main72679-20020-C0iEL44199307-199508

BLACK,TRIM2#

sub72679-20020¥1,090

main72679-20020-J2iEL44199307-199409

EISEN BLUE,TRIM8#

sub72679-20020¥1,090

72693HOOK, REAR SEAT CUSHION LOCK

main72693-32020iEL44¥300199104-199508

sub72693-20060¥180

9010508102

main90105-08102¥160

9010508132

main90105-08132¥180

9010908153

main90109-08153¥200

9011906183

main90119-06183¥110

9011908A21

main90119-08A21¥130

9046710023

main90467-10023¥70

9162140608

main91621-40608¥60

9324954008

main93249-54008¥120

9353054014

main93530-54014¥90

9452100800

main94521-00800¥240

30 parts on this diagram · 1 diagram in section
