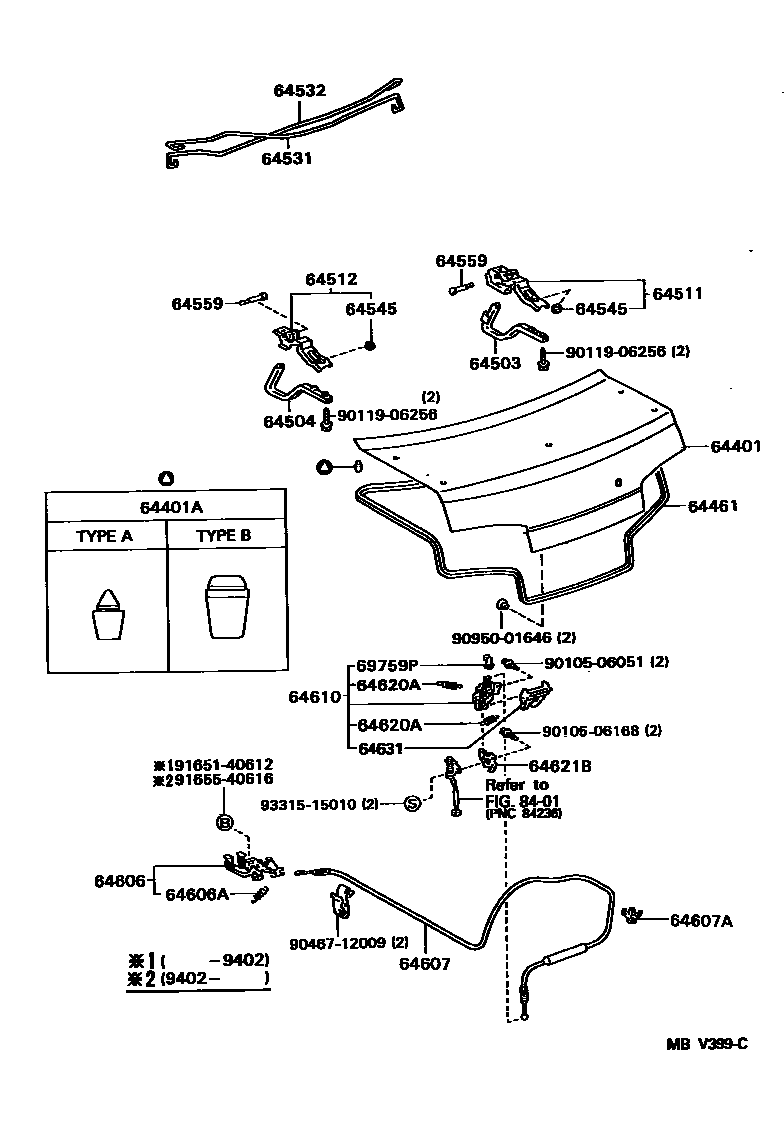

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
W(REAR SPOILER)
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
TYPE B
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
W(REAR SPOILER)
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
W(REAR SPOILER)
64545CUSHION, LUGGAGE DOOR HINGE
64559PIN, LUGGAGE DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
CW=17.5,WD=0.55
CW=17.25,WD=0.55
8401
9010506051
main90105-06051
9010506168
main90105-06168
9011906256
main90119-06256
9046712009
main90467-12009
9095001646
main90950-01646
9165140612
main91651-40612
9165540616
main91655-40616
9331515010
main93315-15010
29 parts on this diagram · 1 diagram in section
