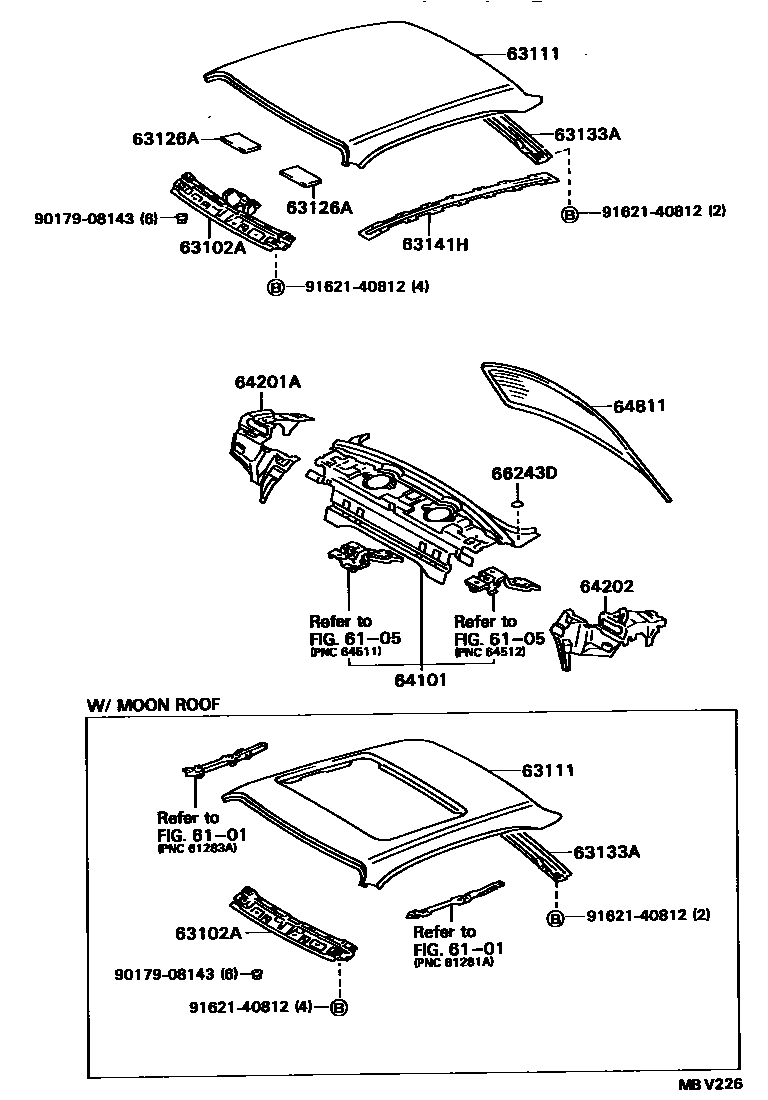

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

6101

6105

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-16030iEL44199104-199508

main63132-16070iEL44199104-199508

W(SUN ROOF)

63111PANEL, ROOF

main63111-16220iEL44199104-199508

main63111-16230iEL44199104-199508

W(SUN ROOF)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-16010×2iEL44199104-199307

63133AFRAME, BACK WINDOW, UPPER

main63133-16050iEL44199104-199508

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-16090iEL44199104-199508

64101PANEL SUB-ASSY, UPPER BACK

main64101-16120iEL44199104-199508

sub64173-16020

main64101-16130iEL44199104-199208

W(REAR SPOILER)

64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH

main64201-16020iEL44199104-199508

64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH

main64202-16020iEL44199104-199508

64811GLASS, BACK WINDOW

main64811-16380iEL44..CND199104-199301

*EHT,T=3.5,CLEAR

main64811-16400iEL44..USA199104-199409

*EHTT,T=3.5,BLUE

main64811-16401iEL44..CND199409-199508

*EHTT,T=3.5,BLUE

main64811-16410iEL44..CND199301-199409

*EHTT,T=3.5,BLUE

main64811-16411iEL44..CND199409-199508

*EHTT,T=3.5,BLUE

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010×2iEL44199104-199403

9017908143

main90179-08143

9162140812

main91621-40812

14 parts on this diagram · 2 diagrams in section
