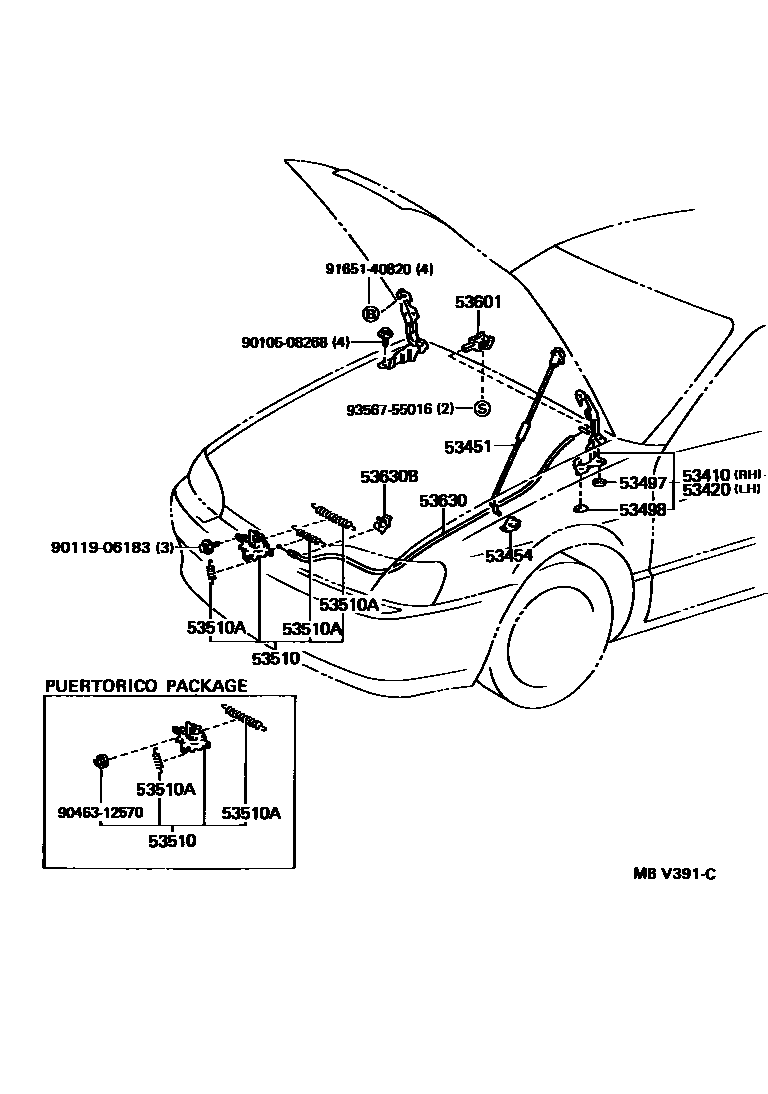

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16060iEL44199104-199107

sub53410-16061

main53410-16061iEL44199107-199508

53420HINGE ASSY, HOOD, LH

main53420-16040iEL44199104-199107

sub53420-16041

main53420-16041iEL44199107-199508

53451ROD, HOOD SUPPORT

main53440-16050iEL44199104-199106

sub53440-16051

main53440-16051iEL44199106-199409

main53440-16070iEL44199409-199508

53454CLIP, HOOD SUPPORT ROD

main53454-16010iEL44199104-199508

53497PAD, HOOD HINGE, NO.1

main53497-16020iEL44199104-199508

OD=19,T=1.0

main53497-16030iEL44199104-199508

T=2.0

53498PAD, HOOD HINGE, NO.2

main53498-16020iEL44199104-199508

T=1.0

main53498-16030iEL44199104-199508

T=2.0

53510LOCK ASSY, HOOD

main53510-16190iEL44199104-199508

main53510-16200iEL44..USA199104-199508

PUERTORICO PACKAGE

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iEL44199104-199508

WD=0.9,CW=20.75,CW=20.75,WD=0.9

main90506-09053iEL44199104-199508

WD=0.9,CW=24.5,CW=24.5,WD=0.9

main90506-20008iEL44199104-199508

WD=2.0,CW=17,CW=17,WD=2.0

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-01iEL44199104-199208

BLACK,TRIM2#

sub53601-16020

sub53601-24030

main53601-16020-04iEL44199104-199208

GRAYISH BLUE,TRIM8#

sub53601-16020

sub53601-24030

main53601-16020-22iEL44199208-199508

BLACK,TRIM2#

sub53601-16020

sub53601-24030

main53601-16020-W4iEL44199208-199409

EISEN BLUE,TRIM8#

sub53601-16020

sub53601-24030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16280iEL44199104-199508

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043iEL44199104-199508

9010508268

main90105-08268

9011906183

main90119-06183

9046312570

main90463-12570

9165140820

main91651-40820

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
