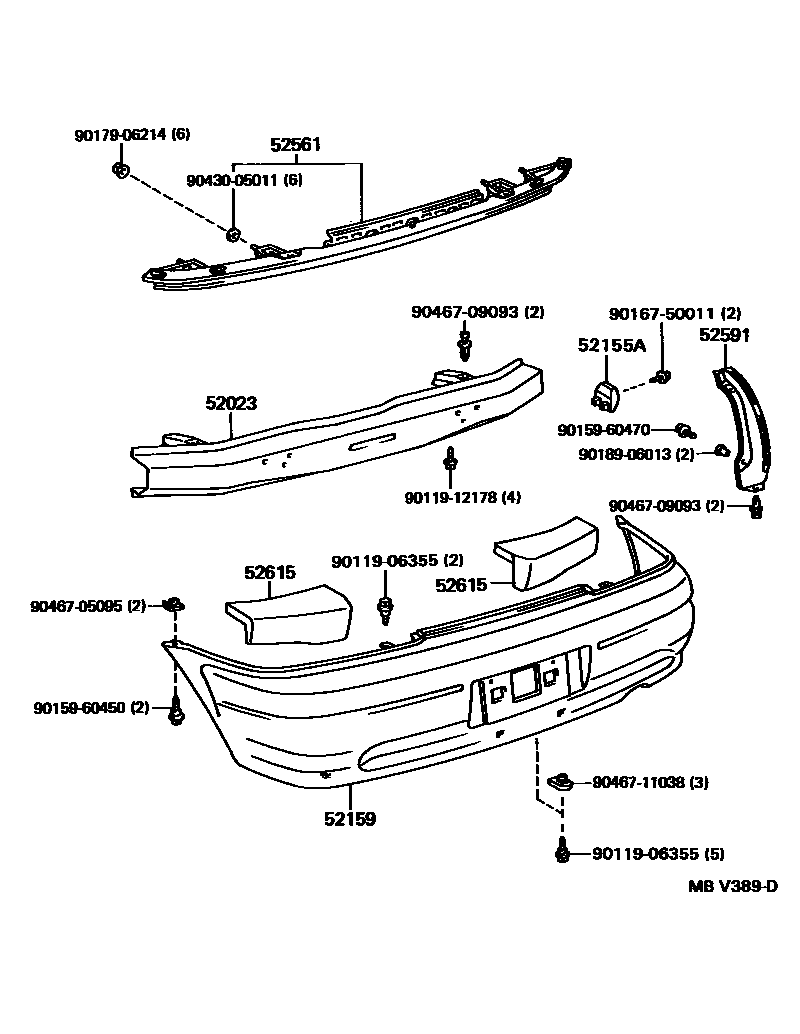

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-16100iEL44199104-199508

52155ASUPPORT, REAR BUMPER SIDE, RH

main52157-16110iEL44199209-199508

52159COVER, REAR BUMPER

main52159-16903iEL44199104-199508

52561RETAINER, REAR BUMPER, UPPER CENTER

main52508-16030iEL44199104-199508

52591SEAL, REAR BUMPER SIDE, RH

main52591-16080iEL44199104-199508

52615ABSORBER, REAR BUMPER ENERGY

main52615-16080iEL44199104-199508

RH

main52616-16020iEL44199104-199508

LH

9011906355

main90119-06355

9011912178

main90119-12178

9015960450

main90159-60450

9015960470

main90159-60470

9016750011

main90167-50011

9017906214

main90179-06214

9018906013

main90189-06013

9043005011

main90430-05011

9046705095

main90467-05095

9046709093

main90467-09093

9046711038

main90467-11038

17 parts on this diagram · 1 diagram in section
