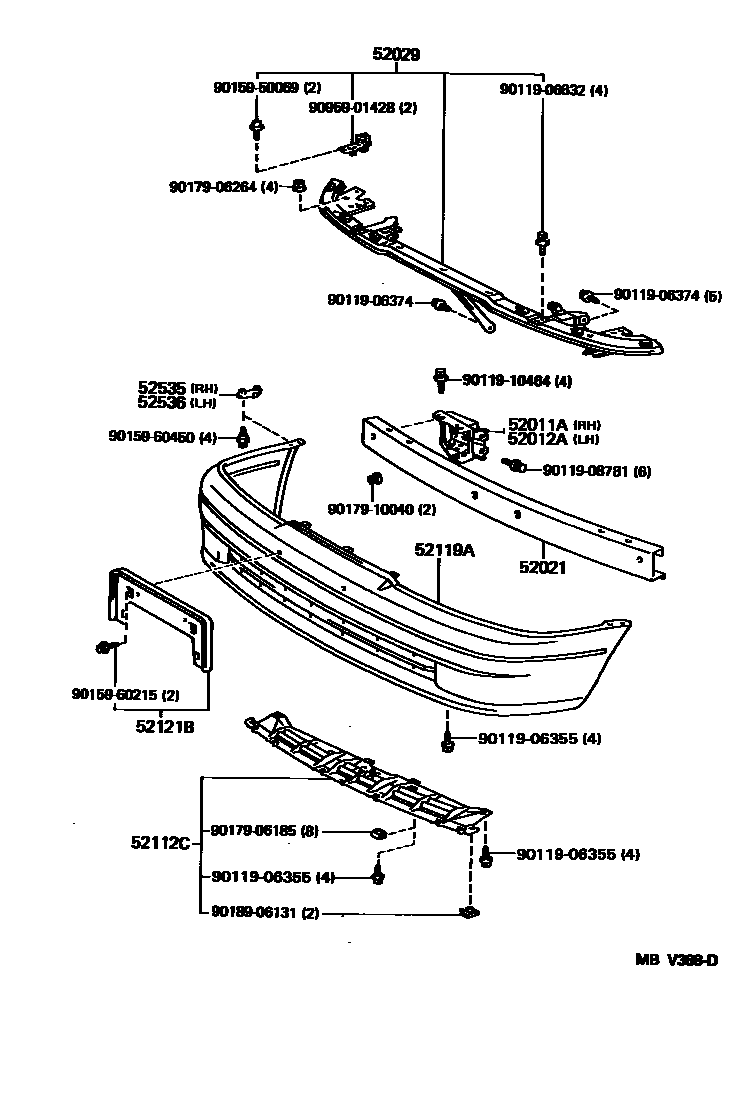

FRONT BUMPER & BUMPER STAY

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-16140iEL44199104-199508

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-16130iEL44199104-199508

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-16090iEL44199104-199508

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-16040iEL44199104-199508

52112CEXTENSION, FRONT BUMPER

main52102-16030iEL44199104-199508

52119ACOVER, FRONT BUMPER

main52119-16904iEL44199104-199508

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-16050iEL44199104-199508

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-16030iEL44199104-199508

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-16030iEL44199104-199508

9011906355

main90119-06355

9011906374

main90119-06374

9011906632

main90119-06632

9011908781

main90119-08781

9011910464

main90119-10464

9015950069

main90159-50069

9015960215

main90159-60215

9015960450

main90159-60450

9017906185

main90179-06185

9017906264

main90179-06264

9017910040

main90179-10040

9018906131

main90189-06131

9095901428

main90959-01428

22 parts on this diagram · 1 diagram in section
