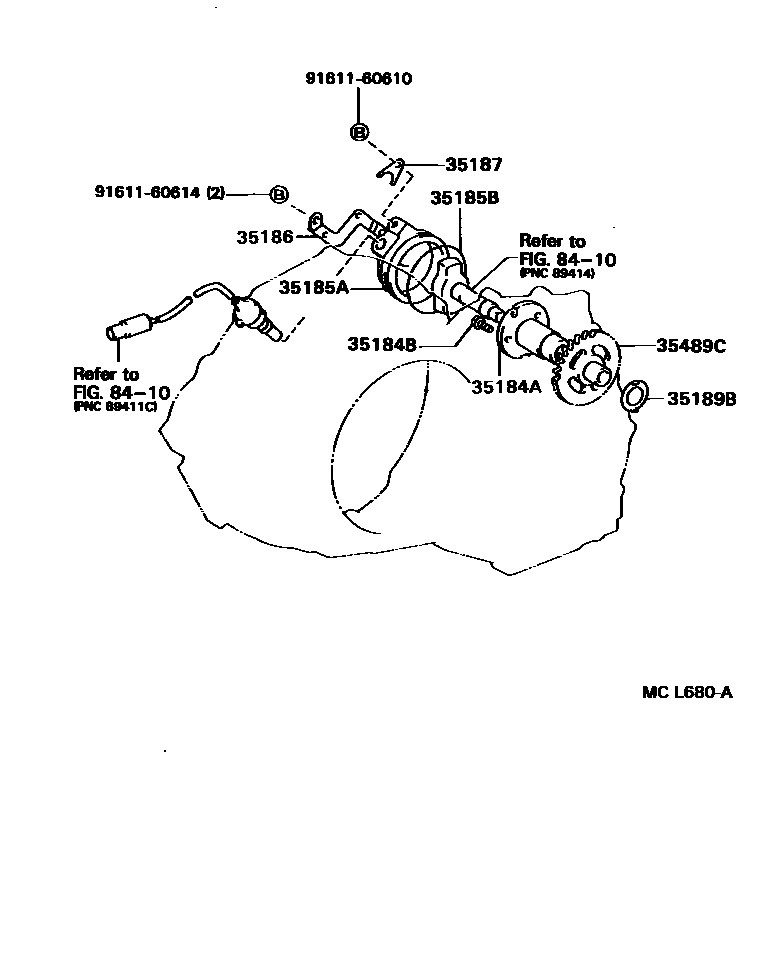

REAR OIL PUMP & GOVERNOR (ATM)

35184AADAPTER, SENSOR ROTOR

main35184-12010iEL44..ATM199104-199508

35184BBOLT(FOR SENSOR ROTOR ADAPTER)

main90105-06053iEL44..ATM199104-199508

35185ACOVER, SPEED SENSOR

main35185-12010iEL44..ATM199104-199508

35185BRING, O (FOR SPEED SENSOR COVER)

main90301-68001iEL44..ATM199104-199508

35186BRACKET, SPEED SENSOR COVER

main35186-12010iEL44..ATM199104-199508

35187PLATE, SPEED SENSOR LOCK

main35187-12010iEL44..ATM199104-199508

35189BWASHER, GOVERNOR THRUST, NO.2

main35189-12010iEL44..ATM199104-199508

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iEL44..ATM199104-199508

8410

9161160610

main91611-60610

9161160614

main91611-60614

11 parts on this diagram · 1 diagram in section
