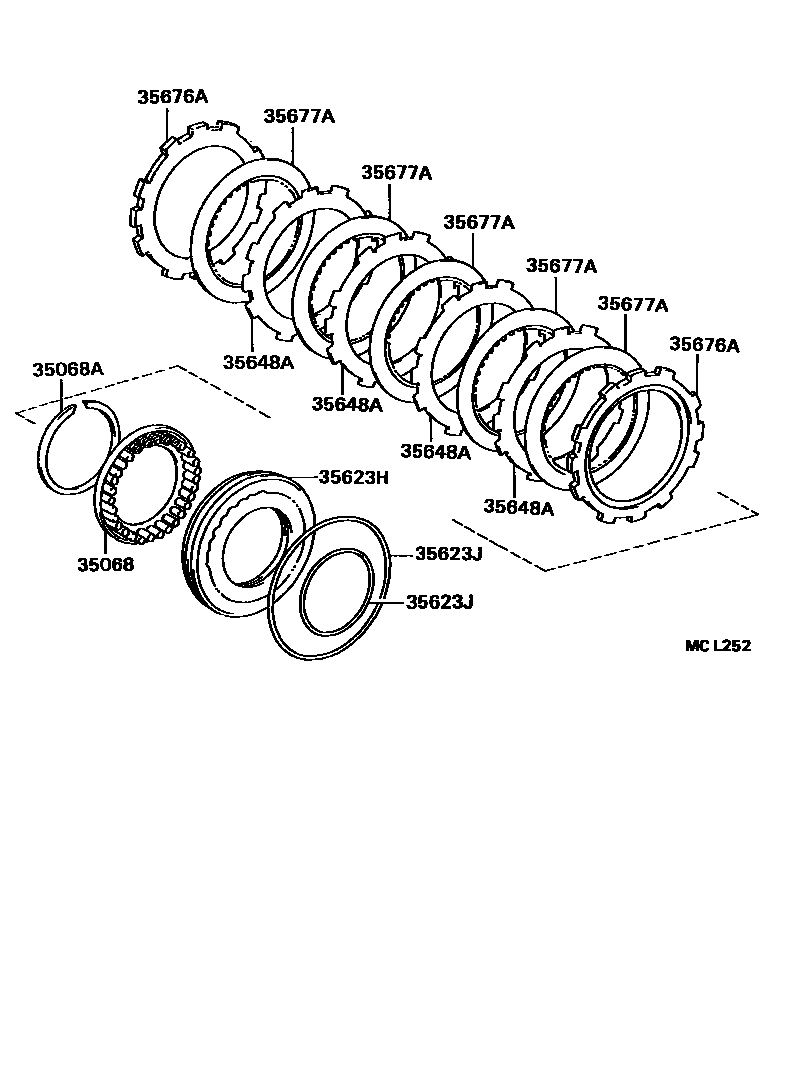

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iEL44..ATM199104-199508

sub35068-20010

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iEL44..ATM199104-199508

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12010iEL44..ATM199104-199308

main35623-12040iEL44..ATM199308-199508

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iEL44..ATM199104-199508

INNER

main90301-99022iEL44..ATM199104-199508

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iEL44..ATM199104-199508

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iEL44..ATM199104-199508

T=3.5

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12040iEL44..ATM199104-199311

sub35677-12060

main35677-12060iEL44..ATM199311-199508

7 parts on this diagram · 1 diagram in section
