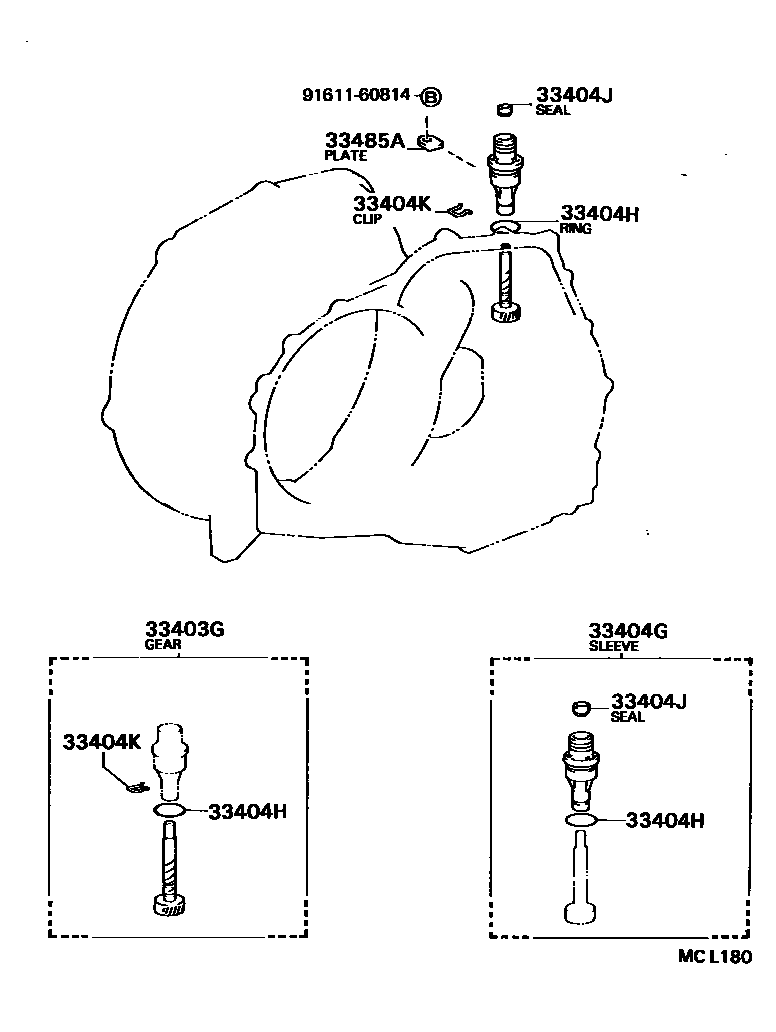

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19385iEL44..ATM199104-199508

N=30,MARK 30:34

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iEL44..ATM199104-199508

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24030iEL44..ATM199104-199508

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iEL44..ATM199104-199508

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iEL44..ATM199104-199508

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iEL44..ATM199104-199508

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
