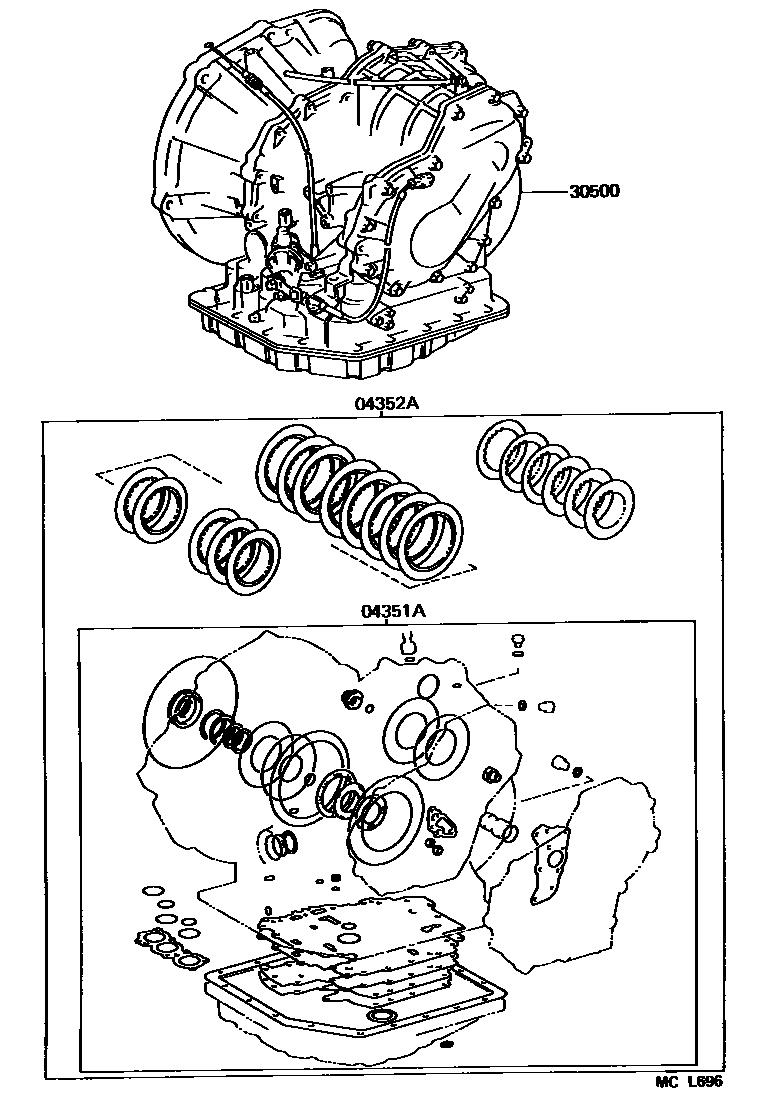

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-16060iEL44..ATM¥25,700199104-199408

main04351-16090iEL44..ATM¥21,900199408-199508

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-16070iEL44..ATM¥69,900199104-199307

sub04352-16071¥69,900

main04352-16071iEL44..ATM¥69,900199307-199408

main04352-16100iEL44..ATM¥86,800199408-199508

30500TRANSAXLE ASSY, AUTOMATIC

main30500-16370iEL44..ATM¥460,000199104-199409

sub30500-16371¥460,000

sub91612-41025¥170

main30500-16540iEL44..ATM¥470,000199409-199508

sub30500-16541¥470,000

sub91612-41025¥170

main30500-16550iEL44..ATM..USA¥470,000199409-199508

CALIFORNIA SPEC

sub30500-16551¥470,000

sub91612-41025¥170

3 parts on this diagram · 1 diagram in section
