CLUTCH HOUSING & TRANSMISSION CASE (MTM)

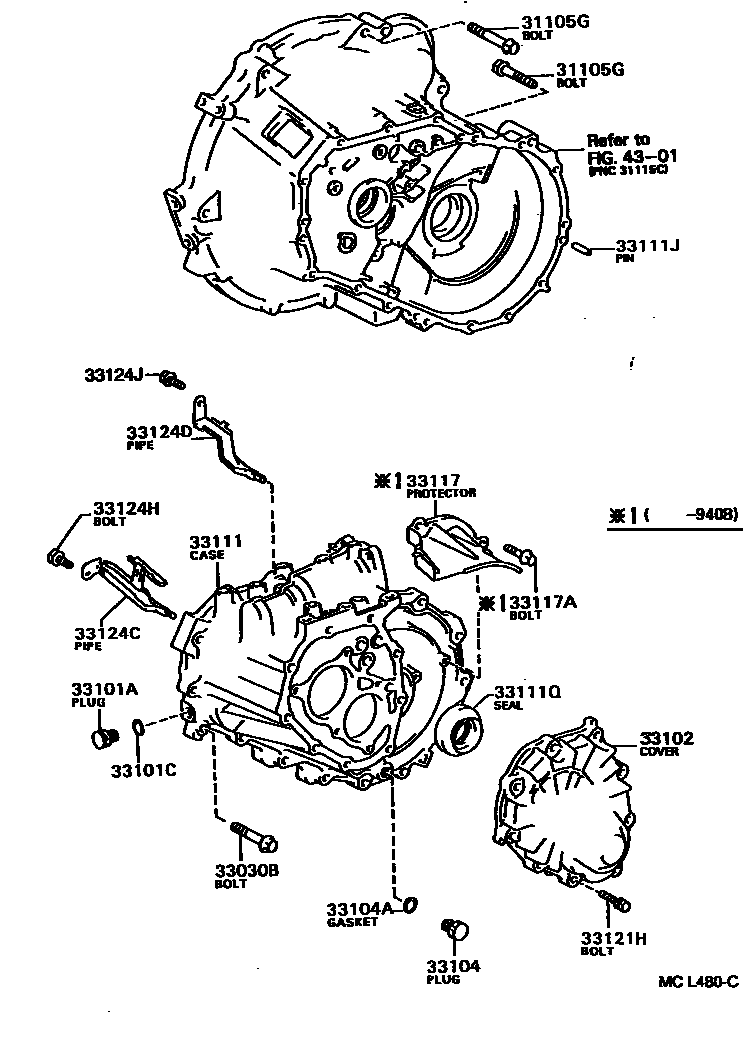

Parts diagram

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10097i199104-199508

*10-1.25PX60-22

main91611-61025i199104-199408

*10-1.25PX25-25

main91612-41025i199408-199508

*10-1.25PX25-25

main91619-61260i199104-199508

*12-1.25PX60-30

main91621-60614i199104-199508

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086i199104-199508

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006i199104-199508

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i199104-199508

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10020i199104-199105

main33102-10021i199105-199208

main33102-10022i199208-199504

main33102-10023i199504-199508

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i199104-199508

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i199104-199508

33111CASE, MANUAL TRANSMISSION

main33111-10071i199104-199405

main33111-16050i199405-199505

main33111-16051i199505-199508

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054i199104-199508

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008i199104-199108

main90311-34017i199108-199508

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010i199104-199408

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040i199104-199408

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08494i199104-199410

main90119-08A34i199410-199508

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10010i199104-199504

main33124-10012i199504-199508

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10020i199104-199405

main33124-10021i199405-199508

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820i199104-199508

33124JBOLT, W/WASHER

main91611-60820i199104-199508

4301

18 parts on this diagram · 1 diagram in section
